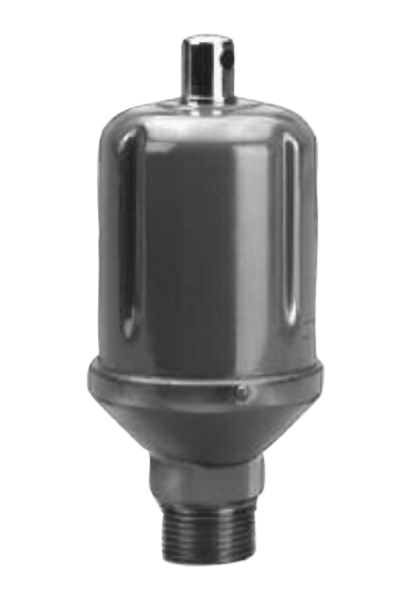

THERMOFLO 401437 Model 75H Main Steam Vent Air Valve (Non-Vacuum) 1/2 NPT Female 3/4 NPT Male

Product Description

The THERMOFLO 401437 Model 75H Main Steam Vent Air Valve is designed for use in medium and large steam systems. This valve features a non-vacuum float type design with straight shank connections. It includes a half-inch NPT female port and a three-quarter inch NPT male port, ensuring compatibility with standard piping systems.

• Float-type thermostatic vent ideal for steam systems
• Single non-adjustable port configuration
• Maximum operating pressure of 10 psig

Product Highlights

The THERMOFLO Model 75H Main Steam Vent is efficient and ideal for controlling air release in steam heating applications.

Product Information

Standard Information

• Manufacturer: THERMOFLO
• Part Number: 576109

Technical Specifications

• Model No: 75H
• Size: 1/2 x 3/4 inches
• Type: Non-Vacuum Float-type Vent
• Mounting Type: Straight
• Temperature Range: 140-240 degrees F
• Material: Steel
