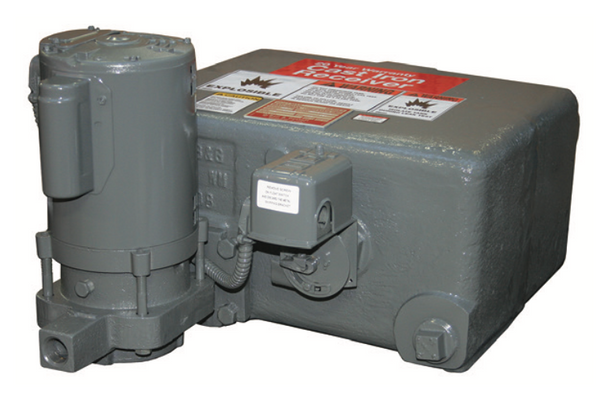

THERMOFLO 160030 Cast Iron Condensate Pump 1/3 HP

Product Description

The THERMOFLO 160030 is a cast iron condensate pump designed for efficient removal of condensate in HVAC systems. This model is suitable for systems with heating capacities of six thousand to twelve thousand square feet equivalent direct radiation (EDR). It operates at one-third horsepower, providing a flow rate of twelve gallons per minute at twenty-one pounds per square inch gauge (PSIG).

• Features simplex or duplex pump design to accommodate various setups
• Low height NPT inlet allows for easy return line connections
• Maximum operational temperature of two hundred fifty-five degrees Fahrenheit

Product Highlights

Factory tested for reliability, this pump includes a cast iron receiver with a twenty-year warranty against corrosion. The double-pole float switch enhances its operational capability, ensuring effective management of condensate.

Product Information

Standard Information

• Manufacturer: THERMOFLO
• Part Number: 575727

Technical Specifications

• Model Number: WC-8-20-B
• Material: Cast Iron
• Discharge Size: One-third inch
• Maximum Temperature: Two hundred fifty-five degrees Fahrenheit
• Flow Rate: Twelve gallons per minute
• Inlet Type: NPT
• NPSH Capability: Two inches NPSH
• Description: WC-8-2O (B) CONDENSATE PUMP
