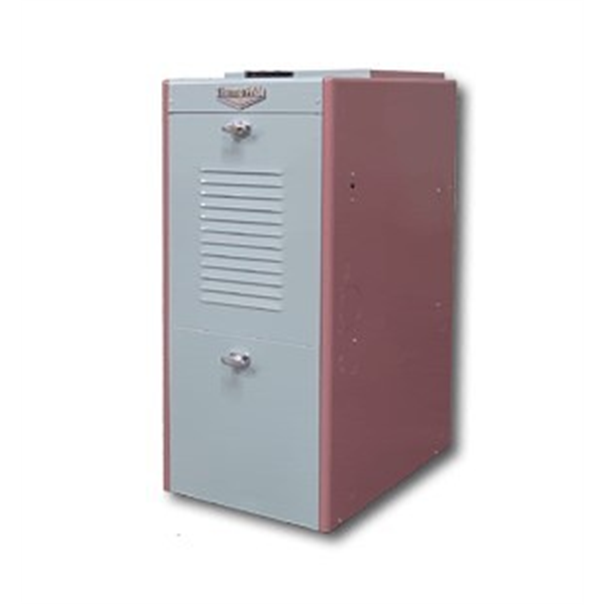

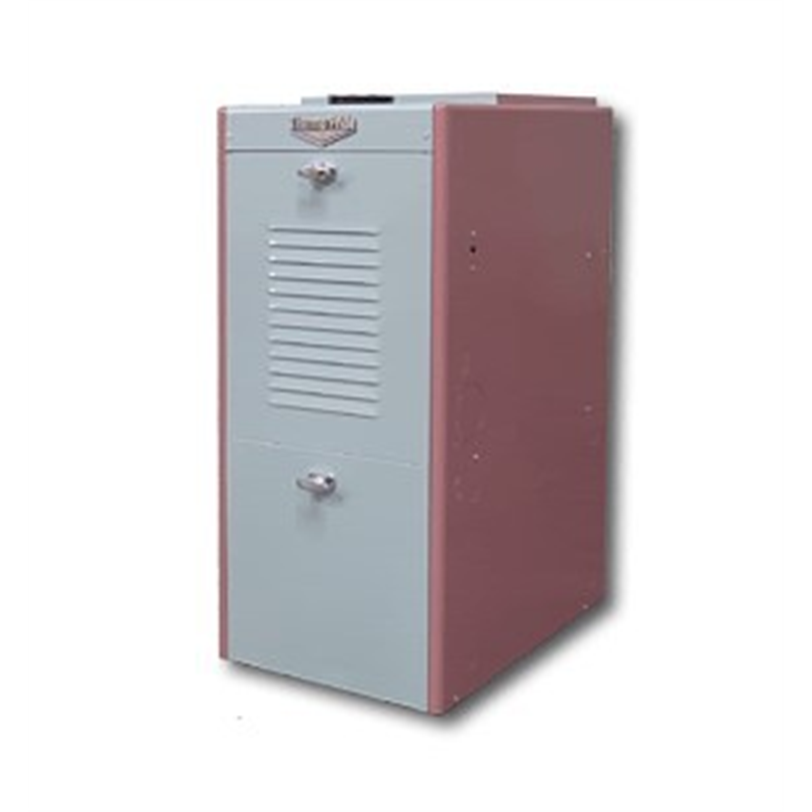

Thermo Products 380692 Oil Furnace

Product Description

The Thermo Products 380692 is a low-profile highboy oil furnace ideal for areas where space is limited. This unit provides efficient heating with an AFUE rating of eighty-six percent. It works well with four-ton air conditioning systems and features a PSC blower motor for effective airflow.

• Compact design suitable for low ceiling basements.
• Equipped with a PSC blower motor for efficient operation.
• Features a copper coated Octatherm heat exchanger.

Product Highlights

Perfect for home heating, this oil furnace is designed for easy maintenance and servicing.

Product Information

Standard Information

• Brand: Thermo Products
• MPN: 380692

Technical Specifications

• AFUE Rating: 86.1
• Dimensions: 20 inches x 30 inches x 45 inches
• Flow Rate: 1600 cfm
• Flue Size: 5 inches
• Fuse Size: 15 a
• Fuel Type: Oil
• Input Capacity: 70-106,250 btu
• Motor HP: 1/2
• Motor Type: PSC
• Mounting Type: Floor
• Output Capacity: 60-90,000 btu
• Series: 6 Series
• Input Voltage: 120/60/1
• Weight: 5.00 lbs
