THERMO PRIDE AOPS7237 Draft Inducer Motor Assembly

Product Description

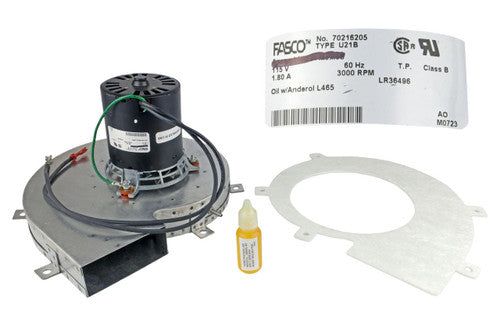

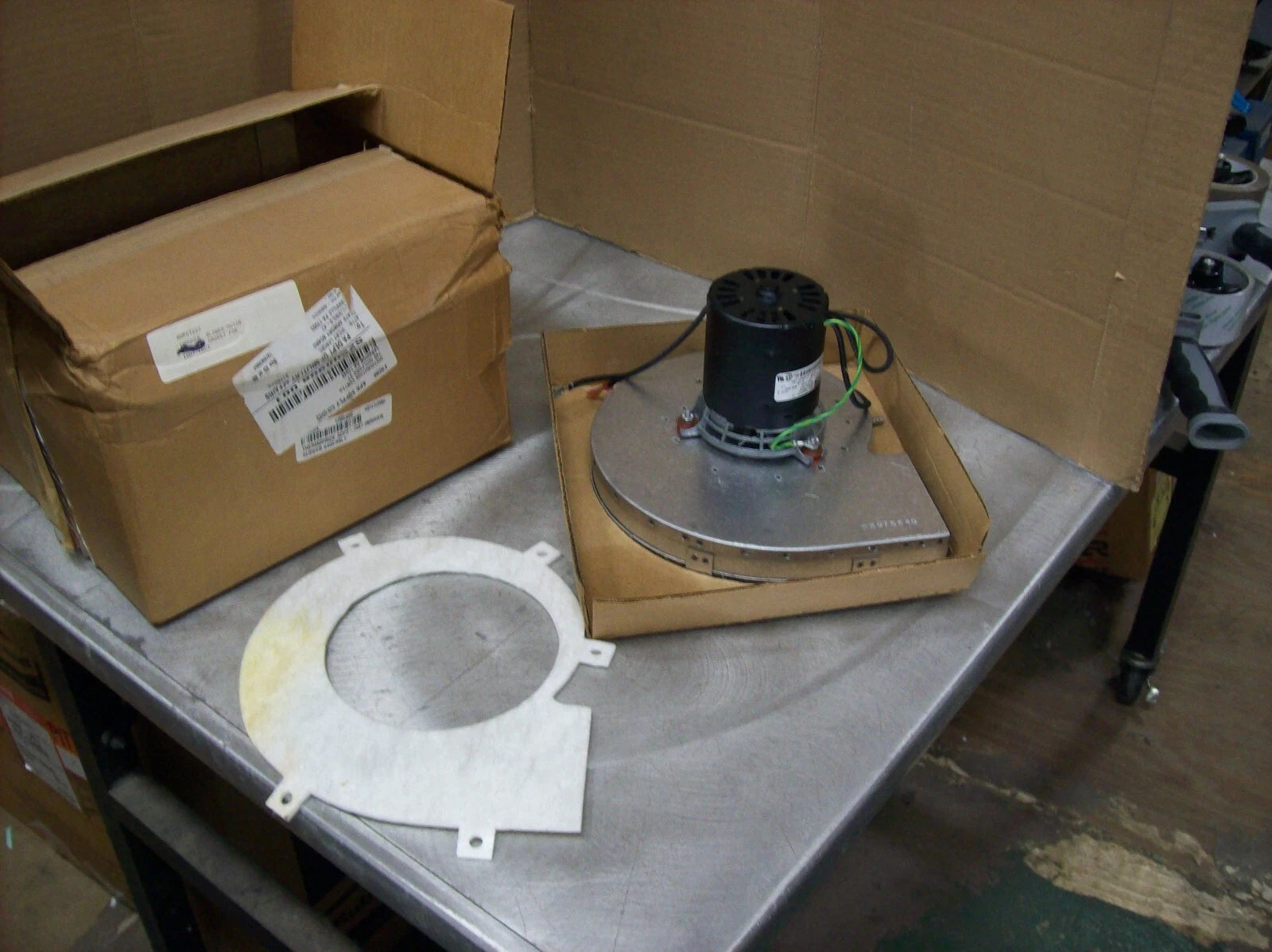

The THERMO PRIDE AOPS7237 Draft Inducer Motor Assembly is essential for IGH7 and IGC7 equipment. This assembly contains the inducer motor, a gasket, and Anderol 465 inducer oil. It operates at 115 volts, with a frequency of sixty Hertz and a current of 1.80 Amps. The motor has a rotation speed of 3000 RPM. The motor type is Fasco U21B with Class B insulation and features air-over cooling. The inducer housing is made of metal and the motor includes thermal protection to prevent overheating. This ensures optimal furnace operation.

• Compatible with IGH7/IGC7 equipment.
• Includes inducer motor assembly, gasket, and Anderol 465 inducer oil.
• Thermally protected motor with air-over cooling.

Product Highlights

Product Information

Standard Information

• Item Number: AOPS7237
• Brand: Fasco

Technical Specifications

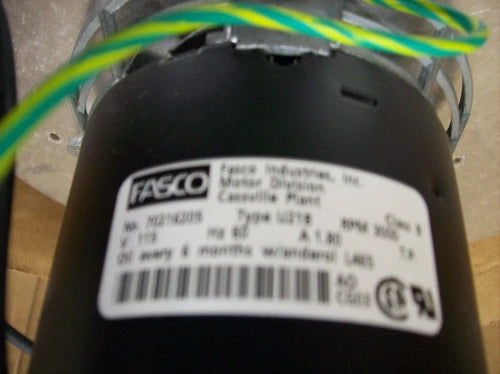

• Manufacturer: Fasco
• Model Number: 70216205
• Voltage: 115
• Hertz: 60
• Amperage: 1.80
• RPM: 3000
• Thermally Protected: Yes
• Insulation Class: B
• Motor Cooling: Air Over
• Rotation: Counterclockwise Lead End
• Inducer Housing: Metal
• Condition: New
