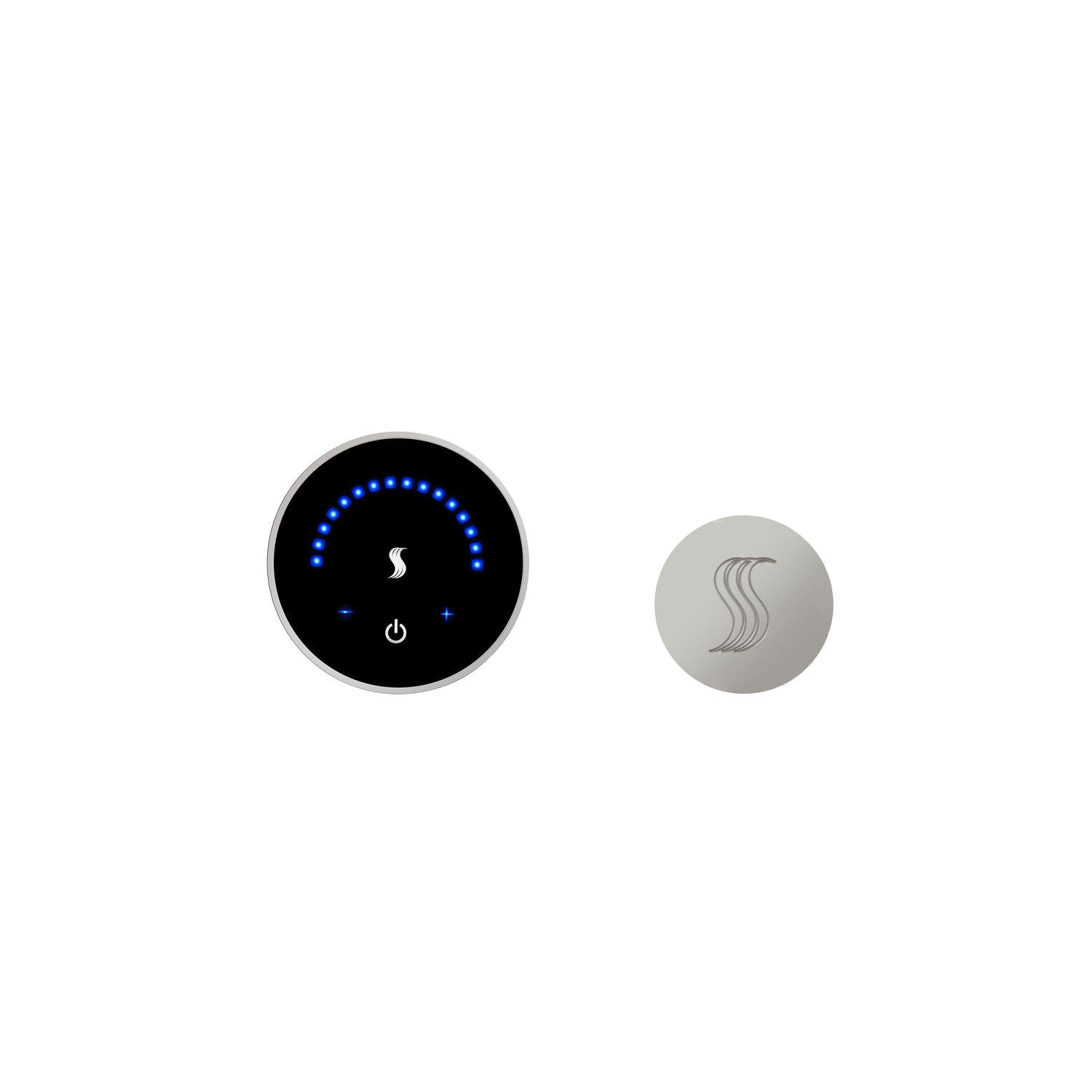

Thermasol MTMR-SVSQSN MicroTouch SteamVection Kit Square MTMR-SVSQ-SN

Product Description

Thermasol MTMR-SVSQSN is a MicroTouch plus SteamVection kit that combines a steam-only digital control with a SteamVection steam head for steam shower installations. The control uses a capacitive touch interface with a built-in 45-minute session timer and intelligent temperature recall. The SteamVection head includes an integrated essential oil well and provides full-body, floor-to-ceiling aromatic steam. The kit is compatible with Thermasol PRO Series steam generators.

• Capacitive touch steam-only control with 45-minute timer and intelligent temperature recall
• SteamVection steam head with integrated essential oil reservoir for aromatic steam delivery
• Compatible with Thermasol PRO Series steam generators; control and steam head sized for wall or recessed installation

Product Highlights

Digital steam control with capacitive touch, 45-minute timer, temperature recall, and steam head with essential oil reservoir; compatible with Thermasol PRO Series.

Product Information

Standard Information

• Brand: THERMASOL
• Manufacturer Part Number: MTMR-SVSQSN

Technical Specifications

• Brand: ThermaSol
• MPN: MTMR-SVSQSN
• Alternative MPN: MTMR-SVSQ-SN
• SKU: MTMR-SVSQ-SN
• Product Name: MicroTouch + SteamVection Kit
• Product Type: Steam shower digital control kit
• Shape: Square (control available in round and square options)
• Finish: Satin Nickel (multiple finishes available)
• UPC: 652592074817
• Compatibility: Compatible with Thermasol PRO Series steam generators
• Control Dimensions (Round, Wall Mounted): 3" x 3" (faceplate width x height)
• Control Dimensions (Square, Recessed): 3.75" x 3.75" (faceplate width x height)
• Steam Head Dimensions: 1.75" x 1.75" (faceplate/trim width x height)
• Control Installation Height: Installed inside the shower, mounted 60 inches from the floor to center of controller (installation guidance)
• Steam Head Installation Height: Install steam head 24 inches above the shower floor and at least 6 inches from all corners (installation guidance)
• Recommended Enclosure Materials: Non-porous, moisture-resistant materials such as porcelain or ceramic tile, tempered glass, sealed grout; natural stone must be sealed regularly
• Mounting Guidance: Do not place the control adjacent to the SteamVection steam head; install it as far away from the steam outlet as possible; steam outlet must be sealed to prevent vapor intrusion into shower walls
• Specification Sheet: https://documents.cx1accel.com/brands/TRM/documents/specSheets/spec_mtmr-svsq-xx.pdf
• Installation Sheet: https://documents.cx1accel.com/brands/TRM/documents/installSheets/TRM-SIS-Trm-mtmr-svsq.pdf
