Thermal Dynamics 9-8206 Plasma Cutting Tip 30A Drag Sl60a

Product Description

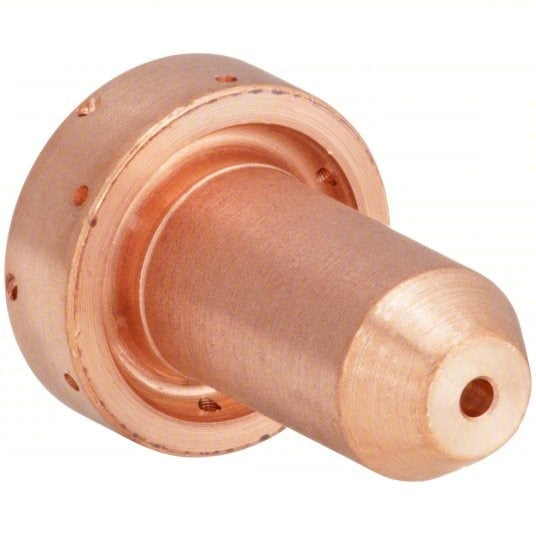

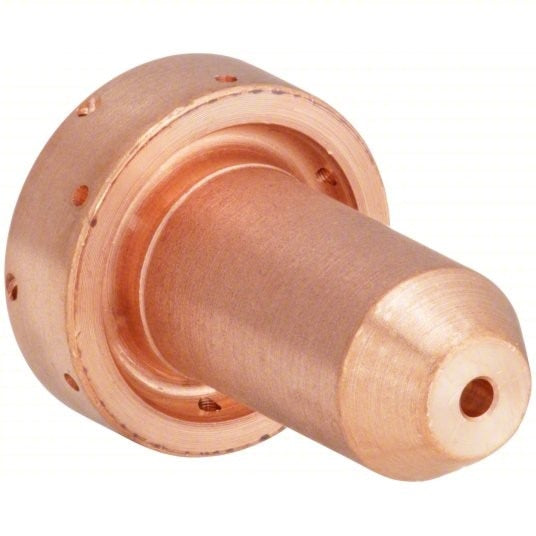

The THERMAL DYNAMICS 9-8206 is a 30-amp drag plasma cutting tip, also referred to as a nozzle, designed for use with the SL60a plasma torch. This tip focuses the plasma stream exiting the torch body, directly controlling cut quality, kerf width, and arc stability during drag-cutting operations. It is a consumable component replaced periodically during routine plasma system maintenance. Installation is performed by plasma cutting technicians and fabricators as part of standard torch consumable service.

This tip is suited for drag-cutting applications on the SL60a torch platform at 30 amps. Drag-style tips allow the nozzle to contact the workpiece directly during cutting, making them a practical choice for operators cutting light-gauge material or working in field conditions where consistent standoff distance is difficult to maintain.

Key Features

• 30-amp rated tip matched to drag-cutting technique
• Focuses the plasma stream for controlled arc and kerf
• Designed for direct contact with workpiece during drag cutting
• Consumable replacement part for routine torch maintenance
• Sold individually (UOM: Each)

Compatibility

Compatible with the Thermal Dynamics SL60a plasma torch series. Verify torch model and amperage setting before installing consumables.

Installation Notes

Plasma cutting consumables should be installed and serviced by qualified technicians familiar with the torch platform. Power down and disconnect the plasma cutter from its power source before replacing any torch consumables. Inspect the electrode and shield cup for wear at the same time, as uneven consumable wear can affect cut quality. Do not overtighten the nozzle retaining cup, as this can damage the seating surfaces.

Technical Specifications

• Amperage: 30A
• Cutting Style: Drag
• Compatible Torch: SL60a
• Unit of Measure: Each
• Minimum Order Quantity: 5
• Weight: 0.02 pounds
• UPC: 699488752183

Standard Information

• Brand: THERMAL DYNAMICS
• Manufacturer Part Number: 9-8206
