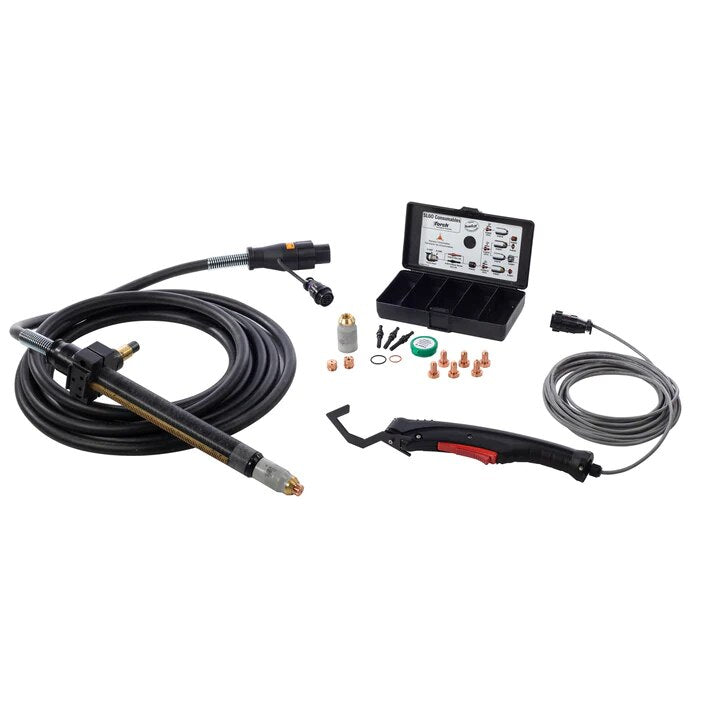

Thermal Dynamics 7-7725 Plasma Cutting Torch Mechpak 25 Ft

Product Description

The THERMAL DYNAMICS 7-7725 is a mechanized plasma cutting torch assembly designed for use with the Cutmaster series plasma cutting systems. The MechPak configuration is built for straight-line cutting and gouging applications where the torch is mounted to a mechanized drive carriage rather than hand-held. At 25 ft in cable length, the assembly gives operators adequate reach from the power source to the work zone. Key performance specs include a 100% duty cycle at 100 amps and an 80% duty cycle at 120 amps, supporting continuous operation at high output levels. Licensed plasma cutting technicians and automated cutting system integrators are the primary installers of this torch type.

The 7-7725 MechPak is suited for industrial and fabrication shop environments running mechanized cutting tables, track-guided cutting carriages, or other automated plasma cutting setups. The 25 ft torch lead length accommodates common machine configurations without excessive slack. This assembly is intended for use with Thermal Dynamics Cutmaster plasma cutting systems that support mechanized torch operation. It is not designed for hand-held use.

Key Features

• 100% duty cycle at 100A for continuous operation at maximum rated thickness
• 80% duty cycle at 120A supports high-amperage mechanized cutting without excessive downtime
• Blowback starting mechanism eliminates high-frequency interference from starting circuits, reducing electrical noise on sensitive equipment
• Built-in solenoid valve located in the torch head delivers immediate airflow at the start of the cutting sequence with no delay
• Machined torch components provide durability, consistent repeatability, and simplified field maintenance
• 25 ft lead length suits standard mechanized cutting table and track-carriage installations

Compatibility

Designed for use with Thermal Dynamics Cutmaster plasma cutting systems that support mechanized torch assemblies. Verify system compatibility with the specific Cutmaster model before installation.

Installation Notes

Installation of mechanized plasma torch assemblies should be performed by qualified personnel familiar with plasma cutting equipment and applicable electrical codes. Power down and lockout the plasma cutting power source completely before connecting or disconnecting the torch lead. Secure the torch body firmly in the mechanized torch holder per the carriage or table manufacturer's specifications to prevent movement during cutting. Confirm all gas and air supply connections are leak-free and that the system air pressure meets the power source requirements before initiating a test cut.

Technical Specifications

• Duty Cycle: 100% at 100A, 80% at 120A
• Torch Lead Length: 25 ft (7.6 meters)
• Starting Mechanism: Blowback
• Weight: 0.47 pounds
• Unit of Measure: Each

Standard Information

• Brand: THERMAL DYNAMICS
• Manufacturer Part Number: 7-7725
