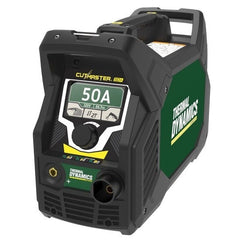

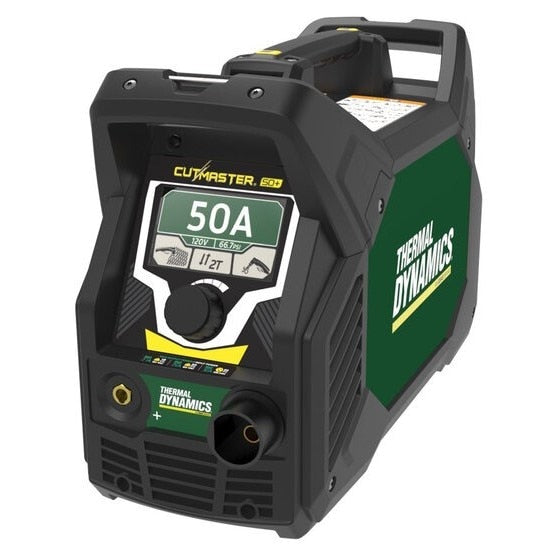

Thermal Dynamics 1-5000-1 Plasma Cutter Cutmaster 50 Plus

Product Description

The THERMAL DYNAMICS 1-5000-1 is a hand-held plasma cutting machine designed for professionals who need a balance of cutting power and job-site portability. The unit accepts dual-input power from 110 to 240 volts, single phase, with automatic voltage detection that adjusts maximum output amperage accordingly. It ships with the industrial SL60 1Torch, which includes a 2T/4T function, safety trigger lock, and a double-tap trigger for conserving bottled air. A 4.3-inch TFT LCD display and a glove-friendly adjustment knob give the operator direct control over cutting parameters. Licensed welding and cutting technicians install and operate this equipment in fabrication shops, field service, and maintenance environments.

The 1-5000-1 Cutmaster 50 Plus is suited for pierce-and-cut applications up to 16 mm on ferrous and non-ferrous materials. It is appropriate for both shop use and portable field work, thanks to its three-handle, all-weather industrial housing. The unit supports two cutting modes: normal and grate cutting, making it adaptable across a range of cutting tasks. Cutmaster Black Series consumables are included at time of purchase for extended consumable service life.

Key Features

• Dual-input 110-240 volts, single phase, with automatic voltage detection and max amperage adjustment
• 4.3-inch TFT LCD display with glove-friendly knob for on-the-fly parameter control
• Includes industrial SL60 1Torch with 2T/4T function, safety trigger lock, and double-tap air conservation trigger
• Switchable normal and grate cutting modes for application flexibility
• Automatic air pressure detection and post-cut air purge to extend consumable life
• 40 percent duty cycle at 25 amps, 100 percent duty cycle at 16 amps
• Cutmaster Black Series consumables included for up to 60 percent longer consumable life
• Three-handle, lightweight, all-weather industrial housing for portable and shop use

Compatibility

Designed for use as the Cutmaster 50 Plus plasma cutting system; compatible with the SL60 1Torch and Cutmaster Black Series consumables as supplied with the unit.

Installation Notes

Installation and operation should be performed by qualified welding and cutting technicians familiar with plasma cutting equipment and applicable electrical codes. Before servicing or connecting the unit, verify that the power source is de-energized and locked out per local electrical safety requirements. Ensure the input voltage matches the available power supply before energizing; the automatic voltage detection will set output accordingly. Follow all manufacturer safety guidelines and local regulations for compressed air connections and cutting area preparation.

Technical Specifications

• Input Voltage: 110-240 volts, single phase
• Duty Cycle: 40 percent at 25 amps, 100 percent at 16 amps
• Maximum Cut Capacity: 16 mm
• Display: 4.3-inch TFT LCD
• Torch Included: SL60 1Torch
• Weight: 48 pounds

Standard Information

• Brand: THERMAL DYNAMICS
• Manufacturer Part Number: 1-5000-1
