Thermal Dynamics 1-4000-1 Plasma Cutter 40 Amp

Product Description

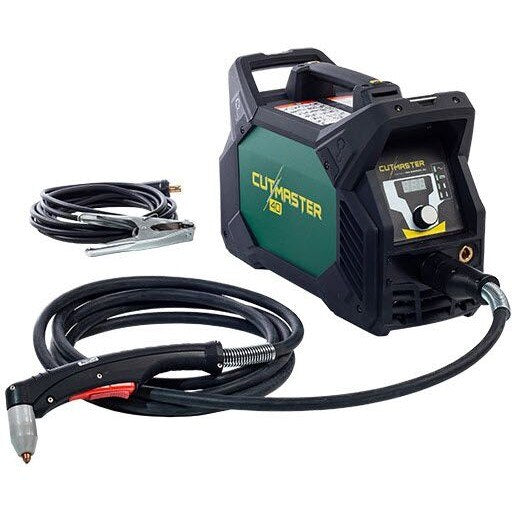

The THERMAL DYNAMICS 1-4000-1 is a portable plasma cutting system sold as the Cutmaster 40 with SL60 1Torch. It delivers up to 40 amps of output power and features automatic voltage input detection that accepts 110 to 240 volts, setting maximum output automatically based on the supply voltage. At 110 volts the unit produces 27 amps; at 200 to 240 volts it steps up to 40 amps. Weighing 38.85 pounds, it is designed for jobsite portability without sacrificing cutting performance. Licensed electricians, fabricators, and metal trade contractors are the primary installers and operators of this system.

The Cutmaster 40 with SL60 1Torch is suited for light industrial and professional trade applications including structural steel cutting, sheet metal work, and general fabrication tasks. The integrated multi-handle design supports single-operator portability on job sites where power supply voltage may vary. The unit ships with the industrial SL60 1Torch equipped with an Advanced Torch Connector (ATC) and includes a Cutmaster Black Series electrode. Recommended pierce and cut capacity reaches 1/2 inch (12 mm), with a maximum sever capacity of 1 inch (25 mm).

Key Features

• Automatic voltage input detection from 110 to 240 volts with automatic maximum output selection
• 27 amp output at 110 volts; 40 amp output at 200 to 240 volts
• 40 percent duty cycle depending on application
• Recommended pierce and cut capacity of 1/2 inch (12 mm); maximum sever of 1 inch (25 mm)
• Industrial SL60 1Torch with Advanced Torch Connector (ATC) included
• Cutmaster Black Series electrode included, rated for up to 60 percent longer consumable part life
• 4-year warranty on power supply; 1-year warranty on torch

Compatibility

Designed for use with SL60 1Torch consumables and accessories compatible with the Cutmaster 40 platform. No additional model-specific compatibility data was provided in the product input.

Installation Notes

This plasma cutting system should be connected and operated by a qualified electrician or trained trade professional in accordance with applicable NEC requirements for the supply voltage being used. Before servicing or changing consumables, power down the unit and disconnect it from the power supply. Do not operate the torch near flammable materials or in wet conditions. Inspect the torch and consumables for wear before each use and replace the electrode and nozzle according to the manufacturer service schedule.

Technical Specifications

• Output Current (110V): 27 amps
• Output Current (200-240V): 40 amps
• Input Voltage Range: 110 to 240 volts
• Duty Cycle: 40 percent
• Recommended Cut Capacity: 1/2 inch (12 mm)
• Maximum Sever Capacity: 1 inch (25 mm)
• Weight: 38.85 pounds
• Torch Included: SL60 1Torch with ATC
• Power Supply Warranty: 4 years
• Torch Warranty: 1 year
• UPC: 699488027649

Standard Information

• Brand: THERMAL DYNAMICS
• Manufacturer Part Number: 1-4000-1
