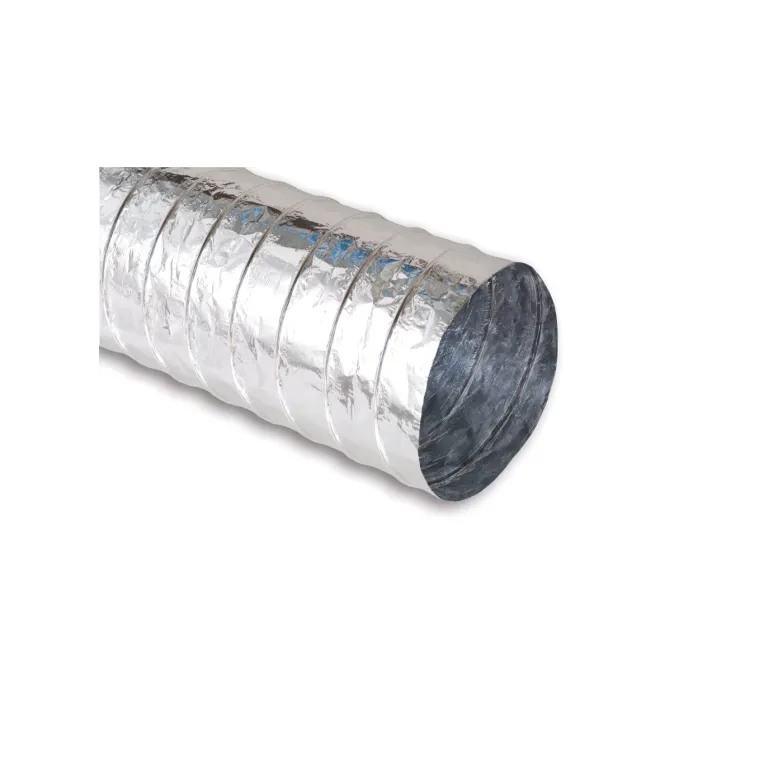

Thermaflex 057904000001 MC Conn Flex-Vent Non-Insulated Air Connector (4 inches x 25 feet)

Product Description

The THERMAFLEX 057904000001 MC Conn Flex-Vent is a non-insulated, economically priced flexible connector ideal for use in medium to low-pressure A/C systems, air venting, and drying applications. Its corrosion-resistant spring steel wire helix is laminated with clear and metallized polyester film and adhesive.

• Reduced total installation cost with fast, economical installation.
• Meets UL 181 and NFPA 90A-90B Fire Codes.
• Easily shaped to fit over all inlets and quickly connects to fast fittings.

Product Highlights

The Flex-Vent MC features a unique construction that will not unravel when cut and is oversized for quick installation.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 057904000001
• Country of Origin: USA

Technical Specifications

• Brand: Thermaflex
• Compliance: NFPA 90 A and 90 B
• Composition: Clear, Metallized Polyester Film
• Fire Rating: Meets UL 181 & NFPA 90A-90B Fire Codes
• Flex Type: Uninsulated
• Inside Diameter: 4"
• Insulated: false
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: Positive = 10" (3-14" ID) 6" (14"-20" ID) Negative = 1" (3-12" ID) 1/2" (14-18" ID)
• Maximum Temperature: 250°F (121.11°C)
• Package Type: Box
• Pressure Rating: WG - Positive 10 inches (3"-14" ID), 6 inches (16"-20" ID) - Negative 1 inch (3"-12" ID), 1/2 inch (14"-18" ID)
• Prop 65: true
• Size: 4" x 25'
• Tier: MC Air Connector
• Flex Length: 25'
• Cubic Measurement: 0.5374
• Height: 10.375
• Length: 22.375
• Width: 4
• Operating Temperature Range: -20°F to 250°F (-28.8°C to 121.1°C)
• Approvals: UL Listed
• Weight: 1.8 lbs
• Dimensions: 4" x 25'
• Application: 10IWC 5000FPM
• MPN: 057904000001
• ABRPN: MC425UL
• Series: MC
• Efficiency: Metalized Polyester
• Package Qty: 16
• Product Status: Stock
