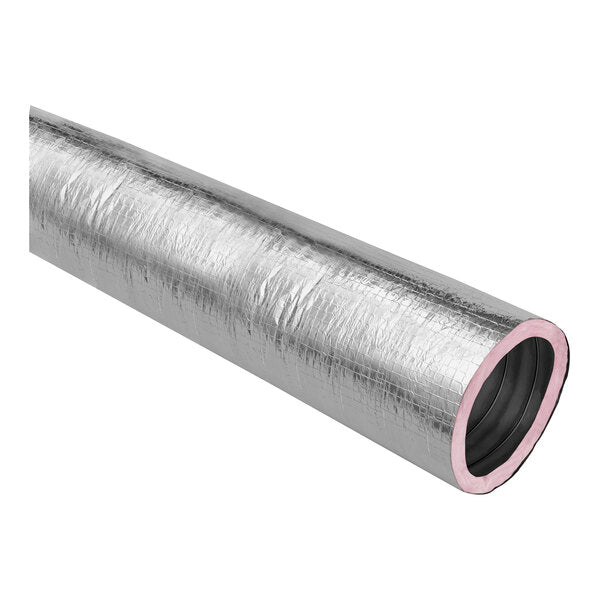

Thermaflex 056320000001 Flex-Vent KM 20 inches x 25 feet Class I R-8 Insulated Flexible Duct

Product Description

The THERMAFLEX 056320000001 Flex-Vent KM insulated duct is designed for low- to medium-pressure cooling and heating HVAC systems. It resolves misalignment issues and allows extensions in new or retrofit applications. Composed of a smooth liner, thermal insulation, a vapor barrier, and a double air seal, it features a polyester film core with a steel wire helix and EcoTouch formaldehyde-free fiberglass insulation.

• Suitable for a variety of applications in low- to medium-pressure cooling and heating HVAC systems
• Inner core is made with strong polyester film encapsulating a corrosion-resistant steel wire helix
• Fully lined with a thick blanket of EcoTouch formaldehyde-free fiberglass insulation

Product Highlights

Efficient R-8 insulation prevents heat from entering or escaping your ducts. It meets UL 181 and CUL S110 requirements and NFPA 90A and 90B standards.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 056320000001
• Country of Origin: USA

Technical Specifications

• Quantity: 1/Each
• Length: 25 Feet
• Inner Diameter: 20 Inches
• Material: Fiberglass, Polyester, Steel Wire
• Style: Insulated
• Temperature Range: -20 - 250 Degrees F
• Type: Duct Hoses, Flexible Ducts
• Features: Corrosion-Resistant, Made in America, Recycled Content
