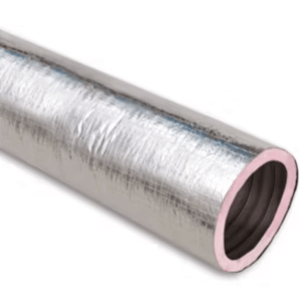

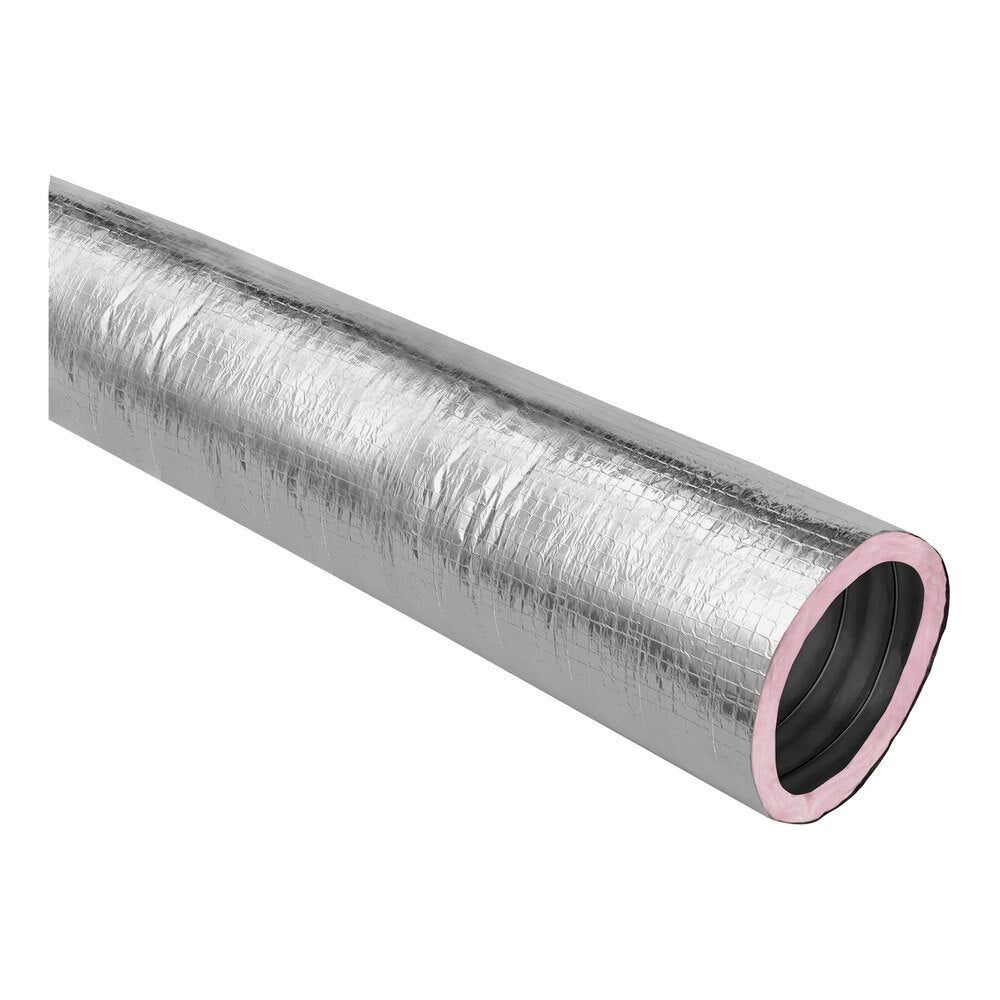

Thermaflex 056316000001 Flex-Vent KM 16 inches x 25 feet

Product Description

The Thermaflex 056316000001 Flex-Vent KM insulated duct is designed for use in low- to medium-pressure cooling and heating HVAC systems. It can be used in both supply and return sections. The inner core is made with strong polyester film encapsulating a corrosion-resistant steel wire helix. It is fully lined with EcoTouch formaldehyde-free fiberglass insulation.

• Suitable for a variety of applications in low- to medium-pressure cooling and heating HVAC systems
• Inner core is made with strong polyester film encapsulating a corrosion-resistant steel wire helix
• Fully lined with a thick blanket of EcoTouch formaldehyde-free fiberglass insulation

Product Highlights

This flexible duct resolves misalignment issues, makes system extensions, and changes conditioned zones. It features R-8 insulation and an outer vapor barrier that will not unravel.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 056316000001
• Country of Origin: United States of America

Technical Specifications

• Length: 25 Feet
• Inner Diameter: 16 Inches
• Material: Fiberglass, Polyester, Steel Wire
• Style: Insulated
• Temperature Range: -20 - 250 Degrees F
• Type: Duct Hoses, Flexible Ducts
