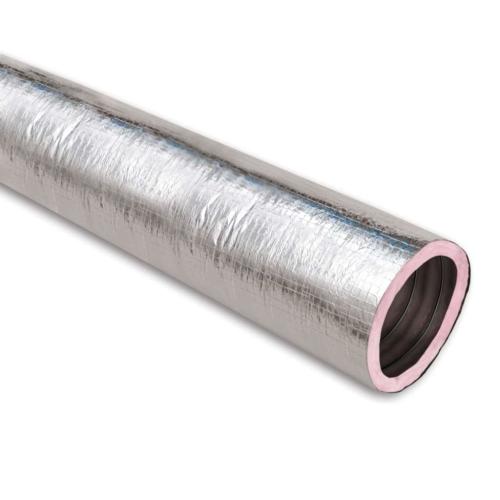

Thermaflex 056307000002 KM Insulated Flex-Vent 7 inchesx25 feet R8 Bag

Product Description

The THERMAFLEX 056307000002 KM Insulated Flex-Vent is a flexible air duct designed for HVAC systems. This insulated ducting is ideal for maintaining consistent temperatures and efficient airflow. It meets NFPA 90 A and 90 B fire safety standards and has a durable laminated polyester film jacket.

• Features R8 insulation for thermal efficiency
• Constructed with laminated polyester film
• Compliant with NFPA 90 A and 90 B fire codes

Product Highlights

This insulated flexible air duct ensures efficient airflow and temperature control, suitable for various HVAC applications.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 056307000002
• Country of Origin: USA

Technical Specifications

• Dimension: 7Hx47Wx47D
• Brand: Thermaflex
• Weight: 14.7
• Compliance: NFPA 90 A and 90 B
• Core Material: Laminated Polyester Film
• Dimensional Weight: 44
• EAN: 0677431005487
• Fire Rating: NFPA 90A-90B Fire Codes
• Flex Length: 25'
• Flex Type: Insulated
• Inside Diameter: 7"
• Insulated: true
• Jacket Color: Silver
• Jacket Material: Laminated Polyester Film
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: Positive = 10" (4-16" ID) 6" (18-20"ID) Negative= 1/2" (4-20" ID)
• Maximum Temperature: 250°F (121.11°C)
• Package Type: Bag
• Pressure Rating: WG - Positive 10 inches (4"-16" ID), 6 inches (18"-20" ID) - Negative: 1/2 inch (4"-20" ID)
• Prop 65: true
• R-Value: R8
• Size: 7" x 25'
• Tier: KM
• UPC: 677431005487
• Vapor Transmission: 0.1 Perms
• Cubic Measurement: 3.6623
• Height: 14.375
• Length: 14.375
• Width: 30.625
• Operating Temperature Range: -20°F to 250°F (-28.8°C to 121.1°C)
• Approvals: UL Listed
