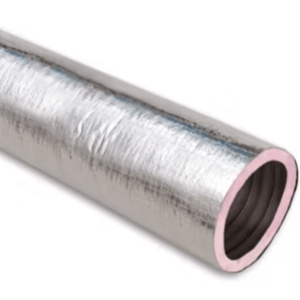

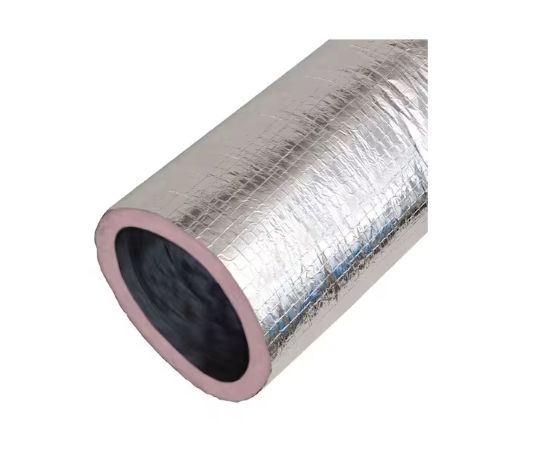

Thermaflex 056306000001 KM Flex-Vent 6 inches x 25 feet R8 Insulated Flexible Air Duct

Product Description

The THERMAFLEX 056306000001 Flex-Vent KM insulated duct is designed for low- to medium-pressure cooling and heating HVAC systems. It can be used in both supply and return sections. The inner core is formed of laminated polyester film that encapsulates a corrosion-resistant steel wire helix.

• Suitable for a variety of applications in low- to medium-pressure cooling and heating HVAC systems
• Inner core is made with strong polyester film encapsulating a corrosion-resistant steel wire helix
• Fully lined with a thick blanket of EcoTouch formaldehyde-free fiberglass insulation

Product Highlights

This flexible duct is a cost-effective alternative to fitted ducts. It boasts R-8 thermal application value and an internal operating temperature range of -20 to 250 degrees Fahrenheit. Meets UL 181 and CUL S110 requirements and NFPA 90A and 90B standards.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 056306000001
• Country of Origin: United States of America

Technical Specifications

• Quantity: 1/Each
• Length: 25 Feet
• Inner Diameter: 6 Inches
• Features: Corrosion-Resistant, Made in America, Recycled Content
• Material: Fiberglass, Polyester, Steel Wire
• Style: Insulated
• Temperature Range: -20 - 250 Degrees F
• Type: Duct Hoses, Flexible Ducts
• Brand: Thermaflex
• R-Value: R8
• Product Type: Flexible Air Duct
• Compliance: NFPA 90 A and 90 B
• Core Material: Laminated Polyester Film
• Fire Rating: NFPA 90A-90B Fire Codes
• Flex Length: 25'
• Flex Type: Insulated
• Insulated: true
• Jacket Color: Silver
• Jacket Material: Laminated Polyester Film
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: Positive = 10" (4-16" ID) 6" (18-20"ID) Negative= 1/2" (4-20" ID)
• Maximum Temperature: 250 0 F (121.11 0C)
• Pressure Rating: WG - Positive 10 inches (4"-16" ID), 6 inches (18"-20" ID) - Negative: 1/2 inch (4"-20" ID)
• Prop 65: true
• Size: 6" x 25'
• Tier: KM
• Vapor Transmission: 0.1 Perms
• Height: 12.125
• Width: 6
• Country of Origin: USA
• Approvals: UL Listed
• Operating Temperature Range: -20 0F to 250 0F (-28.8 0C to 121.1 0C)
