Product Description

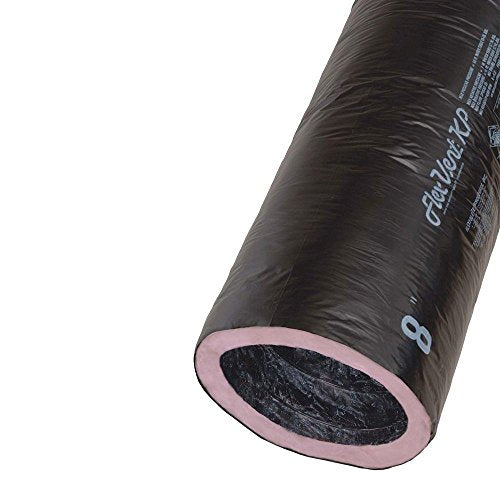

The THERMAFLEX 054714000001 KP R4.2 Flex-Vent Insulated Flexible Air Duct is 14" x 25'. This flexible air duct is insulated and suitable for HVAC ducting. It adheres to NFPA 90 A and 90 B fire codes, ensuring safety and compliance.
- Core Material: Laminated Polyester Film
- Maximum Air Flow: 5000 FPM
- Operating Temperature Range: -20°F to 250°F
Product Highlights
The THERMAFLEX KP R4.2 Flex-Vent duct ensures efficient and safe air ventilation.
Product Information
Standard Information
-
Brand: THERMAFLEX
-
Manufacturer Part Number: 054714000001
-
Country of Origin: USA
Technical Specifications
-
Brand: Thermaflex
-
Model / MPN: 0547-1400-0001
-
Size: 14" x 25'
-
MPN: 054714000001
-
Compliance: NFPA 90 A and 90 B
-
Core Material: Laminated Polyester Film
-
Dimensional Weight: 52
-
EAN: 0677431003254
-
Fire Rating: NFPA 90A-90B Fire Codes
-
Flex Length: 25'
-
Flex Type: Insulated
-
Inside Diameter: 14"
-
Insulated: true
-
Jacket Material: Polyethylene
-
Maximum Air Flow: 5000 FPM
-
Maximum Pressure: Positive = 10" (4-16" ID) 6" (18-20"ID) Negative= 1/2" (4-20" ID)
-
Maximum Temperature: 250°F (121.11°C)
-
Package Type: Box
-
Pressure Rating: WG - Positive 10 inches (4"-16" ID), 6 inches (18"-20" ID) - Negative: 1/2 inch (4"-20" ID)
-
Prop 65: true
-
R-Value: R4.2
-
Tier: KP
-
UPC: 677431003254
-
Vapor Transmission: 0.1 Perms
-
Cubic Measurement: 2.2393
-
Height: 16.625
-
Length: 16.625
-
Width: 14
-
Country of Origin: USA
-
Approvals: UL Listed
-
Operating Temperature Range: -20°F to 250°F (-28.8°C to 121.1°C)
