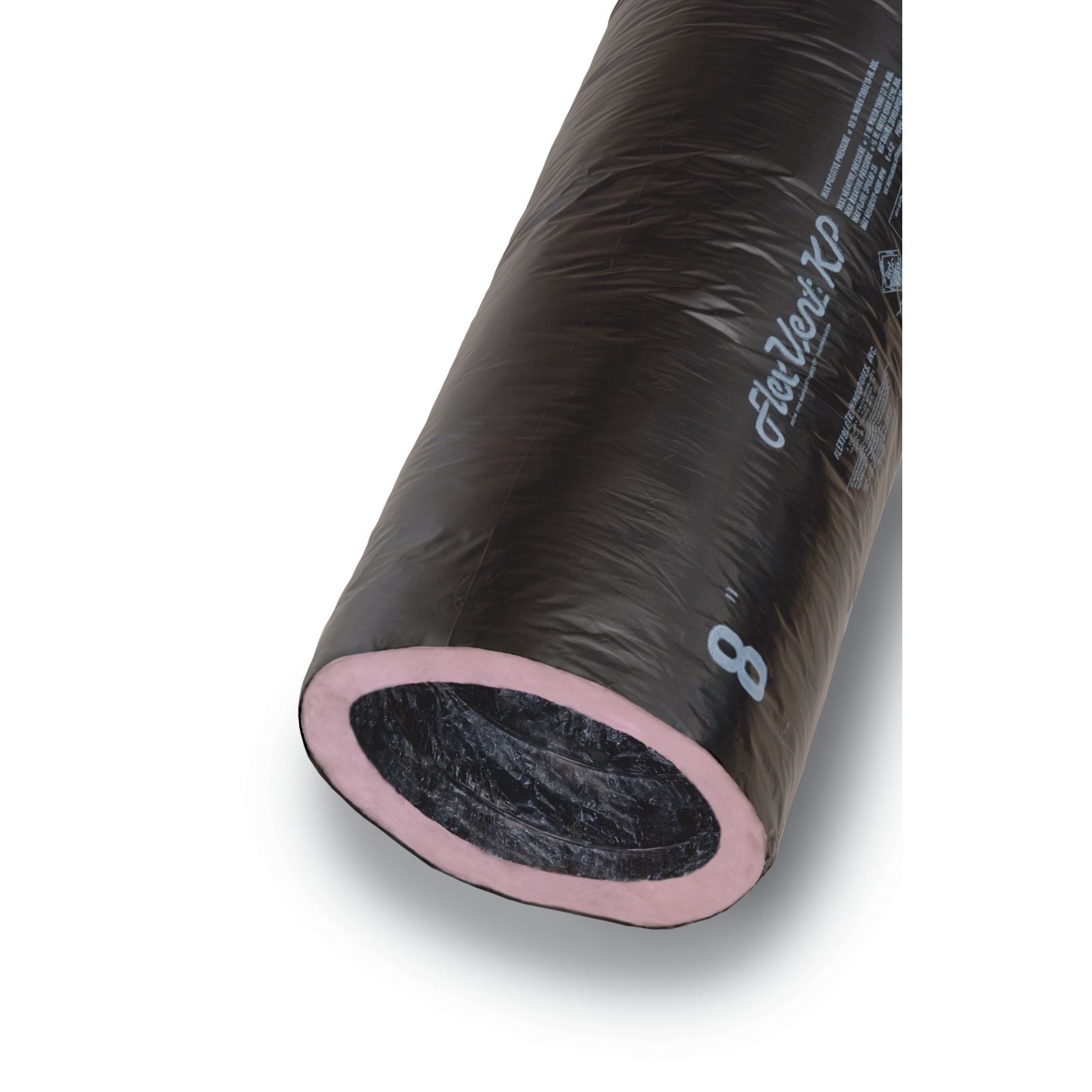

Thermaflex 054705000002 5 inches x 25 feet KP R4.2 Flex-Vent Insulated Flexible Air Duct

Product Description

The Thermaflex 054705000002 Flexvent KP is a thermally insulated, UL 181 Class 1 flexible air duct designed for low to medium pressure cooling and heating HVAC systems. It provides an economical solution for handling misalignment and ducting around obstacles. Suitable for new jobs or retrofits, it's useful for system extensions or changing conditioned zones.

• Thermally insulated for efficient heating and cooling.
• Suitable for supply or return sections of HVAC systems.
• Compliant with NFPA standards for safe installation.

Product Highlights

The Flexvent KP ensures good airflow, thermal insulation, and a double air seal, enhancing the overall duct system efficiency.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 054705000002
• Country of Origin: USA

Technical Specifications

• Brand: Thermaflex
• Manufacturer Product Number: 054705000002
• UPC: 677431003056
• Unit of Measure: EACH
• Hazardous Material: No
• EPA Cert Required: No
• Country of Origin: USA
• R-Value: R4.2
• Jacket Material: Black Polyethylene
• Vapor Transmission: 0.1
• Application: Air Distribution
• Certifications: Greenguard, GreenGuard Children & Schools, Greener Product, CHPS Member
• Composition: Fiberglass
• Core Material: Laminated Polyester Film
• Features: Strong Polyester Film Laminated And Encapsulating A Heavy, Corrosion Resistant Steel Wire Helix, Forms The Inner Core And Supports A Thick Blanket Of Fiberglass Insulation Over A Fiberglass Scrim. The Outer Vapor Barrier Is A Jacket Of Durable Black Polye
• Fire Rating: Meets UL 181 & NFPA 90A-90B Fire Codes
• Inside Diameter: 5"
• Insulated: Yes
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: Positive = 10" (4-16" ID) 6" (18-20"ID) Negative= 1/2" (4-20" ID)
• Maximum Temperature: 250 F (121.1 C)
• Operating Temperature: -20 F to 250 F (-28.8 C to 121.1 C)
• Pressure Rating: WG - Positive 10 inches (4"-16" ID), 6 inches (18"-20" ID) - Negative: 1/2 inch (4"-20" ID)
• Compliance: NFPA 90 A and 90 B
• UL Listed: Yes
• UL Recognized: Yes
• Size: 5" x 25'
• Tier: KP Flexible Duct
