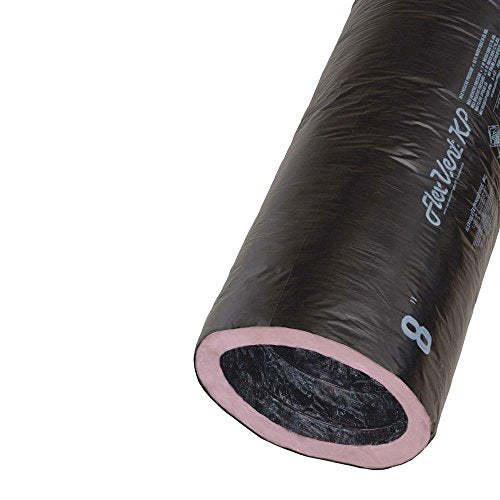

Thermaflex 054206000001 KP 6 inches Flex-Vent Insulated Flexible Air Duct

Product Description

The THERMAFLEX 054206000001 KP is a 6" Flex-Vent insulated flexible air duct designed for low to medium pressure cooling and heating HVAC systems. It features a strong polyester film laminated and encapsulating a heavy, corrosion-resistant steel wire helix, forming the inner core and supports a thick blanket of fiberglass insulation over a fiberglass scrim.

• Designed for low to medium pressure systems.
• Suitable for new jobs or retrofit work.
• The outer vapor barrier is a jacket of durable black polyethylene.

Product Highlights

This flexible air duct provides an economical means for handling misalignment between systems components and ducting around obstacles.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 054206000001

Technical Specifications

• Manufacturer: Thermaflex
• Model / MPN: 0542-0600-0001
• Size: 6"
• Number of Items: 1.0
• MacArthur #: 30A0101059
• Manufacturer #: 054206000001
• Manufacturer Product Family: Flexible Duct
• Manufacturer Brand: Thermaflex Flex-Vent
• U/M: Box
• Net weight: 9.59
• Gross weight: 9.59
• Inside Diameter: 6
• Insulation Thickness(in): 1-1/2"
• Pieces per carton: 1
• Feet per carton: 25
• R-Value: 6
• Fire Rating: 25/50
• Length (Ft): 25
• Material: Steel Wire Helix/Fiberglass Insulation
• Series: KP
• Warranty: Warranty The first five years of installation in the case of any warranty issue or product failure, Thermaflex® will cover all duct cost, material cost and any reasonable labor cost, provided the Flex-Vent® product was properly installed in accordance with our written installation. For the second five years of installation, for a maximum of ten and in the event of any Flex-Vent® product failure or warranty issue, Thermaflex® will make replacement of the defective duct only and no other cost will be reimbursed.
• Item Detail: Flexible Duct
• Color: Black
