Thermaflex 052314000001 KP R8 Flex-Vent Insulated Flexible Air Duct 14 inches x 25 feet

Product Description

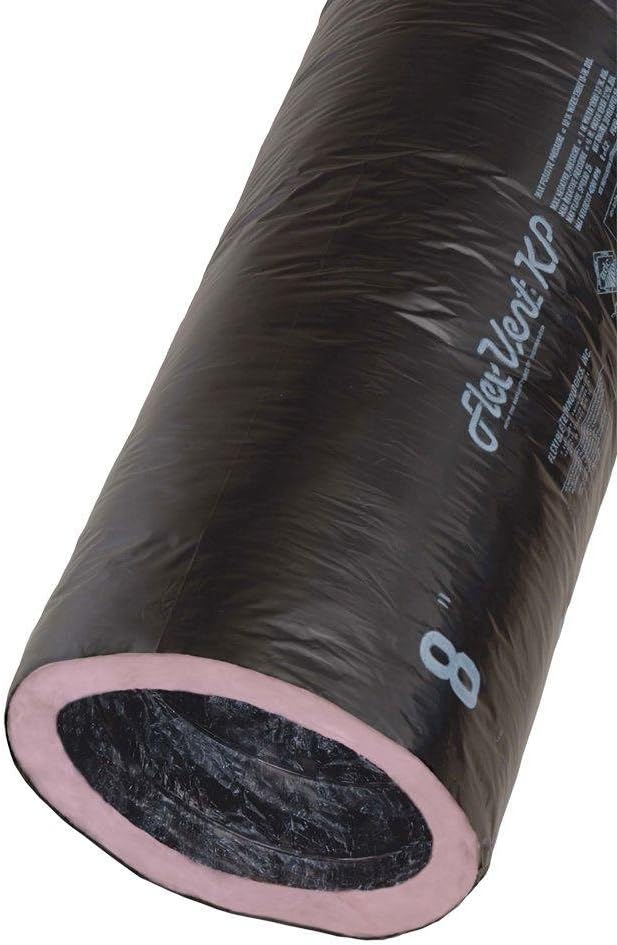

The THERMAFLEX 052314000001 is a 14" KP R8 Flex-Vent Insulated Flexible Air Duct. It features a strong polyester film laminated and encapsulating a heavy, corrosion resistant steel wire helix, forming the inner core and supports a thick blanket of fiberglass insulation over a fiberglass scrim. The outer vapor barrier is a jacket of durable black polyethylene.

• Core Material: Laminated Polyester Film
• Maximum Air Flow: 5000 FPM
• Operating Temperature Range: -20°F to 250°F (-28.8°C to 121.1°C)

Product Highlights

Designed for low to medium pressure systems and adheres to NFPA 90 A and 90 B fire codes.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 052314000001
• Country of Origin: USA

Technical Specifications

• Brand: Thermaflex
• Compliance: NFPA 90 A and 90 B
• Core Material: Laminated Polyester Film
• Dimensional Weight: 99
• EAN: 0677431001205
• Fire Rating: NFPA 90A-90B Fire Codes
• Flex Length: 25'
• Flex Type: Insulated
• Inside Diameter: 14"
• Insulated: true
• Jacket Color: Black
• Jacket Material: Polyethylene
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: Positive = 10" (4-16" ID) 6" (18-20"ID) Negative= 1/2" (4-20" ID)
• Maximum Temperature: 250°F (121.11°C)
• Package Type: Box
• Pressure Rating: WG - Positive 10 inches (4"-16" ID), 6 inches (18"-20" ID) - Negative: 1/2 inch (4"-20" ID)
• Prop 65: true
• R-Value: R8
• Size: 14" x 25'
• Tier: KP
• UPC: 677431001205
• Vapor Transmission: 0.1 Perms
• Cubic Measurement: 3.4465
• Height: 20.625
• Length: 20.625
• Width: 14
• Approvals: UL Listed
• Operating Temperature Range: -20°F to 250°F (-28.8°C to 121.1°C)
• ASIN: B00L4IG9DY
• Date First Available: June 19, 2014
• Is Discontinued By Manufacturer: No
• Item Weight: 27.9 pounds
• Item model number: 0523-1400-0001
• Manufacturer: Thermaflex
• Product Dimensions: 20.25 x 20.25 x 30 inches
