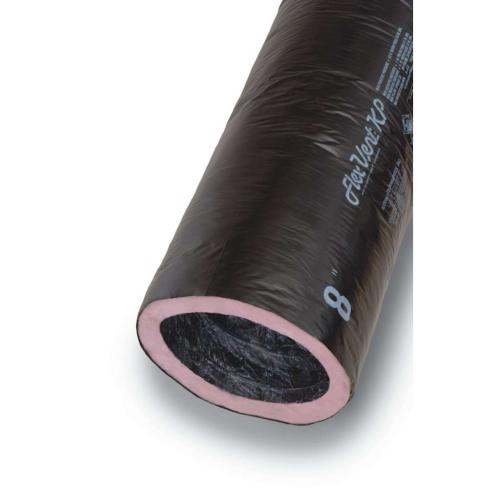

Thermaflex 052312000002 Kp Insulated Flex Duct 12 inchesx25 feet R8 Bag

Product Description

The THERMAFLEX 052312000002 Flex-Vent KP is a thermally insulated, fully lined, UL 181 Class 1 flexible air duct designed for low to medium pressure cooling and heating HVAC systems. It provides an economical solution for handling misalignment and ducting around obstacles. It has a smooth liner, ample insulation, and a durable black polyethylene outer vapor barrier.

• Insulated
• Compliance to NFPA Standards allows you to install lengths longer than the 14' limitation applying to connectors.
• GreenGuard Gold Certified, which is the industrys most recognized Indoor Air Quality (IAQ) rating.

Product Highlights

The Flex-Vent KP ensures good airflow, thermal insulation, and a double air seal, making it a highly efficient component of the total duct system.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 052312000002
• Country of Origin: USA

Technical Specifications

• Brand: Thermaflex
• Compliance: NFPA 90 A and 90 B
• Core Material: Laminated Polyester Film
• Dimensional Weight: 81
• EAN: 0677431005418
• Fire Rating: NFPA 90A-90B Fire Codes
• Flex Length: 25'
• Flex Type: Insulated
• Inside Diameter: 12"
• Insulated: true
• Jacket Color: Black
• Jacket Material: Polyethylene
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: Positive = 10" (4-16" ID) 6" (18-20"ID) Negative= 1/2" (4-20" ID)
• Maximum Temperature: 250°F (121.11°C)
• Package Type: Bag
• Pressure Rating: WG - Positive 10 inches (4"-16" ID), 6 inches (18"-20" ID) - Negative: 1/2 inch (4"-20" ID)
• Prop 65: true
• R-Value: R8
• Size: 12" x 25'
• Tier: KP
• UPC: 677431005418
• Vapor Transmission: 0.1 Perms
• Cubic Measurement: 2.409
• Height: 18.625
• Length: 18.625
• Width: 12
• Approvals: UL Listed
• Operating Temperature Range: -20°F to 250°F (-28.8°C to 121.1°C)
