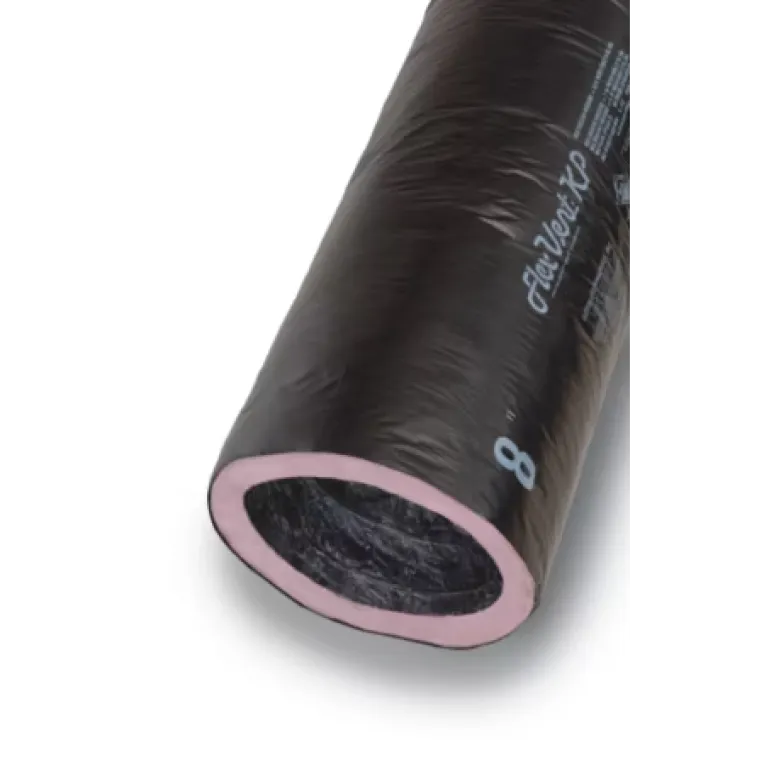

Thermaflex 052310000001 KP R8 Flex-Vent Insulated Flexible Air Duct (10 inches x 25 feet)

Product Description

The THERMAFLEX 052310000001 KP R8 Flex-Vent Insulated Flexible Air Duct is a UL 181 Class 1 flexible air duct designed for low to medium pressure cooling and heating HVAC systems. It provides an economical means for handling misalignment between systems components and ducting around obstacles.

• Thermally insulated and fully lined.
• Suitable for new jobs or retrofit work.
• Designed for low to medium pressure systems.

Product Highlights

This flexible air duct is ideal for system extensions or for changing conditioned zones. It features a durable black polyethylene jacket and a laminated polyester film core.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 052310000001
• Country of Origin: USA

Technical Specifications

• Compliance: UL 181 and NFPA
• Core Material: Laminated Polyester Film
• Fire Rating: 25/50
• Flex Length: 25'
• Flex Type: Insulated
• Inside Diameter: 10"
• Insulated: true
• Jacket Color: Black
• Jacket Material: Polyethylene
• Maximum Air Flow: 5000 FPM
• Maximum Pressure: Positive = 10" (4-16" ID) 6" (18-20"ID) Negative= 1/2" (4-20" ID)
• Maximum Temperature: 250 0b0F (121.11 0b0C)
• Package Type: Box
• Pressure Rating: WG - Positive 10 inches (4"-16" ID), 6 inches (18"-20" ID) - Negative: 1/2 inch (4"-20" ID)
• Prop 65: true
• R-Value: R8
• Size: 10" x 25'
• Tier: KP
• UPC: 677431001182
• Vapor Transmission: 0.1 Perms
• Approvals: UL Listed
• Operating Temperature Range: -20 0b0F to 250 0b0F (-28.8 0b0C to 121.1 0b0C)
• Manufacturer Product Family: Flexible Duct
• Manufacturer Brand: Thermaflex Flex-Vent
• U/M: Piece
• Insulation Thickness(in): 2"
• Pieces per carton: 1
• Feet per carton: 25
• Material: Steel Wire Helix/Fiberglass Insulation
• Series: KP
• Item Detail: Flexible Duct
