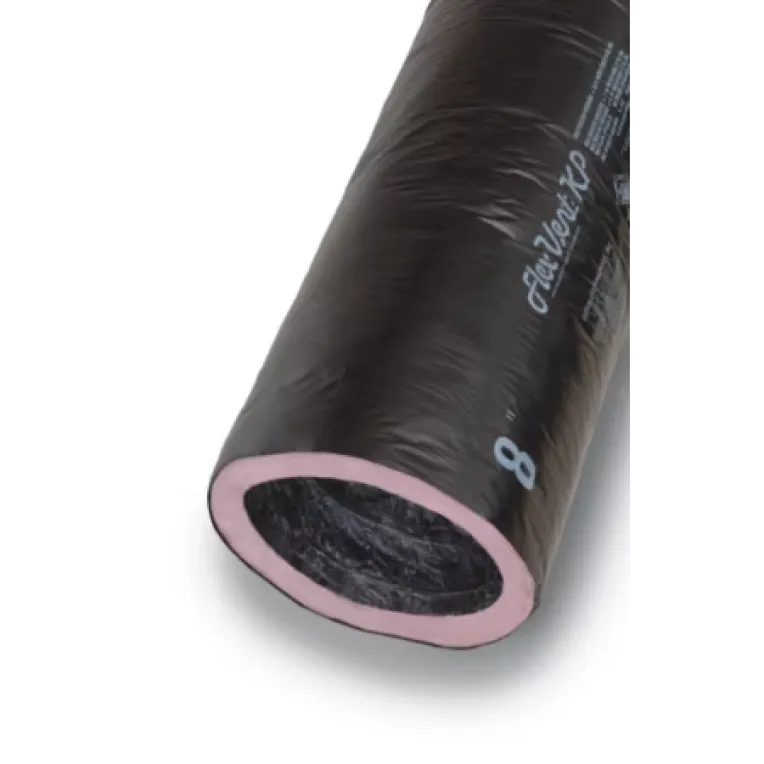

Thermaflex 052308000001 Kp R8 Flex-Vent Insulated Flexible Air Duct (8 inchesX25 feet)

Product Description

The THERMAFLEX 052308000001 KP R8 Flex-Vent is a strong polyester film laminated and encapsulating a heavy, corrosion resistant steel wire helix, forming the inner core. It supports a thick blanket of fiberglass insulation over a fiberglass scrim. Designed for low to medium pressure systems.

• Fast, Economical Installation.
• Oversized Cores For Proper Fit.
• Easily Shaped To Fit Oval Inlets.

Product Highlights

Ideal for residential air distribution and venting applications. UL181 Listed and Complies with NFPA Standards 90A and 90B. Complies with Most State and Federal Standards or Codes.

Product Information

Standard Information

• Brand: THERMAFLEX
• Manufacturer Part Number: 052308000001
• Country of Origin: USA

Technical Specifications

• Max. Airflow: 5000 FPM
• Material: Laminated Polyester Film (Core)
• R-Value: 8
• Max. Temp: 250°F (121.11°C)
• Composition: Fiberglass
• Manufacturer Product Family: Flexible Duct
• Manufacturer Brand: Thermaflex Flex-Vent
• Inside Diameter: 8
• Insulation Thickness(in): 2"
• Fire Rating: 25/50
• Length (Ft): 25
• Series: KP
