Thermador PCG366W Gas Rangetop 36 feet'

Product Description

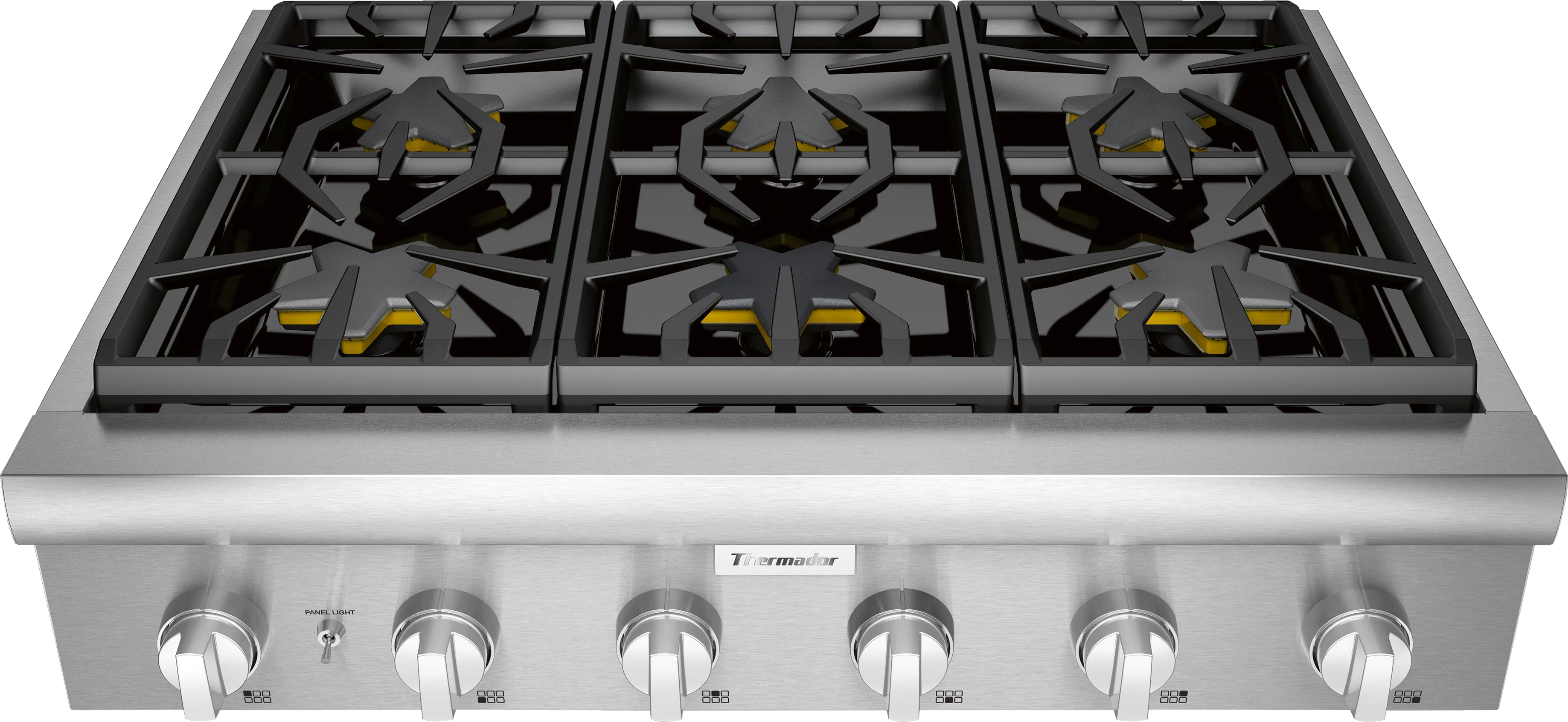

The Thermador PCG366W is a 36-inch gas rangetop featuring 6 burners, a cast iron grate, and a continuous porcelain surface. The exclusive, patented Star Burner provides even heating and flame coverage. The QuickClean Base is designed for easy surface cleaning. It has precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow Simmer burners.

• Exclusive, patented Star Burner – most even heating, unsurpassed flame coverage
• QuickClean Base designed for easy surface cleaning
• Precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow Simmer burners

Product Highlights

This rangetop offers professional style and performance with continuous cast iron grates and a porcelain cooking surface. The Star design delivers superior heat spread for any size pan.

Product Information

Standard Information

• Brand: Thermador
• Manufacturer Part Number: PCG366W

Technical Specifications

• Fuel Type: Natural Gas
• Burner Type: Sealed
• Number of Elements/Burners: 6
• Cooktop Surface: Porcelain Coated
• Cooktop Surface Style: Burner Grate
• Ignition Type: Spark
• Grate Material: Cast Iron
• Cooktop Features: Continuous Grate, LP Convertible
• Smart Compatible: No
• Commercial Use Approved: No
• Appliance Fit Width (in.): 36
• Width (in.): 35.94
• Depth (in.): 25.81
• Height (in.): 8.13
• Cut Out Width: 35.13
• Cut Out Depth: 22.81
• Cut Out Height: 7.69
• ENERGY STAR Certified: No
• Made In Canada: No
• Collection: Professional
• Series: Professional
• Voltage: 120
• Frequency: 60
• Amp: 15
• Energy source: Gas

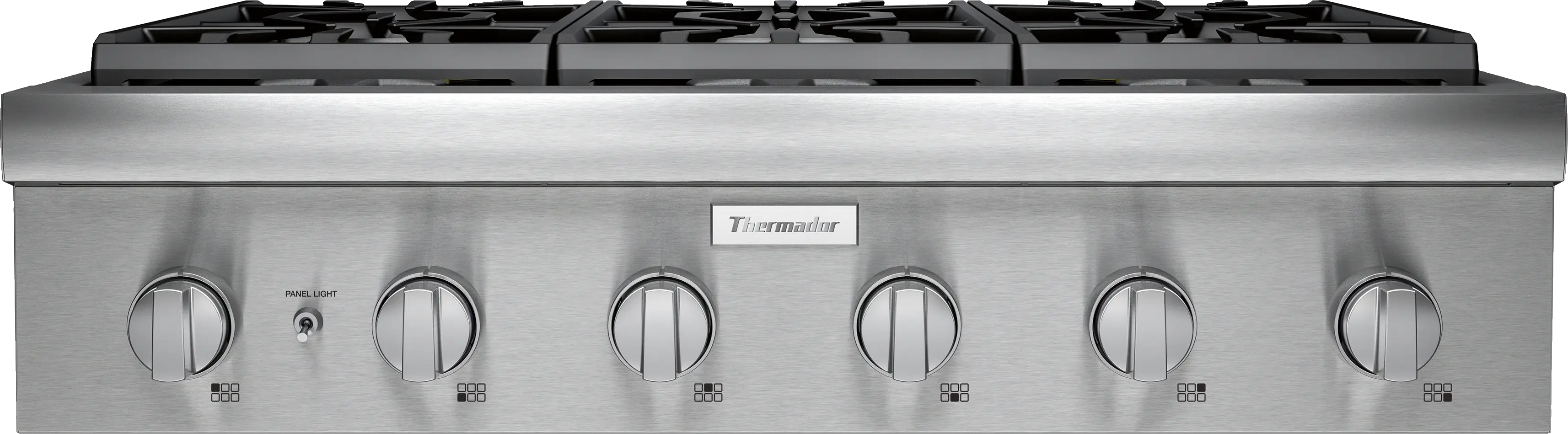

• Type of control: sword knobs
• Safety device: automatic reignition
• Color of frame: Stainless steel, Stainless Steel
• Color of surface: Stainless steel, Stainless Steel
• Installation type: Built-in
• Number of electric elements: 0
• Number of electric cooking zones: 0
• Type of frame: Professional, Standard frame
• Number of gas burners: 6
• Number of halogen elements: 0
• Type of grate: Cast iron
• Number of radiant elements: 0
• Number of electric warming zones: 0
• Net weight (lbs): 148.000

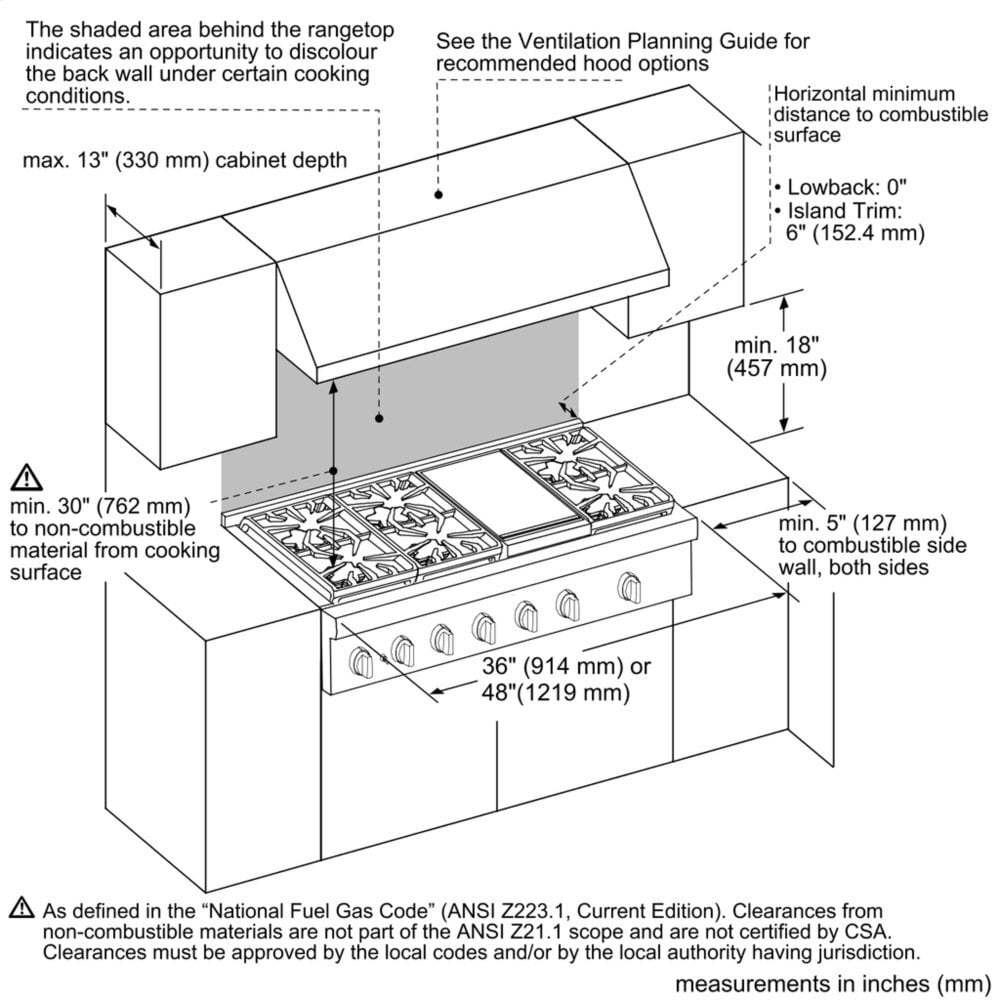

• Minimum distance from rear wall (in): 12''
• Location of 1st heating element: front left
• Type of heating element: Gas
• Location of 2nd heating element: center left
• Location of 3rd heating element: back left
• Type of 3rd heating element: Gas
• Location of 4th heating element: middle back
• Type of 4th heating element: Gas
• Location of 5th heating element: back right
• Type of 5th heating element: Gas
• Location of 6th heating element: center right
• Location of 7th heating element: front right
• Type of 7th heating element: Gas
• Location of 8th heating element: front middle / central
• Type of 8th heating element: Gas
• Location of 9th heating element: front centre/cent
• Type of safety device for gas: Without
• Power on indicator: Yes
• Residual heat indicator: without
• Gas connection rating (W): 31,620
• Location of gas connection: bottom, rear, right
• Power Cord Length: 96''
