The Unico System UPC-62-4860 Plenum Duct Adapter 12x12

Product Description

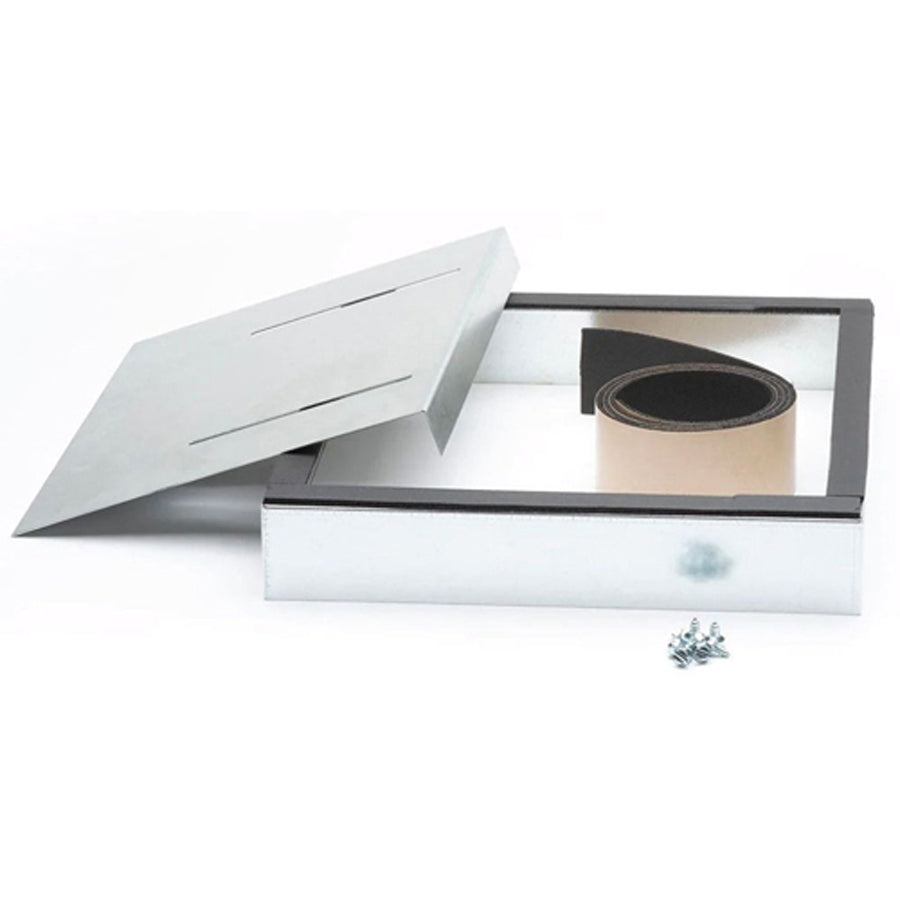

The THE UNICO SYSTEM UPC-62-4860 is a square plenum duct system adapter engineered for use in high-velocity air distribution systems sized for 4 to 5 ton applications. Constructed from galvanized steel, this adapter measures 12 inches x 12 inches and is designed to interface the air handler plenum with the downstream duct network. The interior is fully lined with closed-cell insulation to limit condensation and reduce heat gain or loss in the duct assembly. Licensed HVAC technicians typically install this component as part of a complete Unico high-velocity system build-out or replacement service.

This adapter is suited for residential and light commercial installations where the Unico high-velocity, small-duct system is specified. It accommodates multiple configuration options, giving installers flexibility when routing ductwork in tight or unconventional framing cavities. The square 12 inch x 12 inch profile fits the standard plenum outlet dimensions associated with 4 to 5 ton Unico air handlers. It is appropriate for new construction and retrofit applications where conventional low-velocity duct systems cannot be accommodated.

Key Features

• Galvanized steel construction for durability in air-side applications
• 12 inches x 12 inches square profile sized for 4 to 5 ton systems
• Fully lined with closed-cell insulation to control condensation and thermal loss
• Multiple configuration options to support varied duct routing needs
• Enhanced aluminum fins and copper tubes referenced in system design

Compatibility

Designed as an OEM-style plenum duct adapter for THE UNICO SYSTEM high-velocity air distribution systems in the 4 to 5 ton capacity range.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with high-velocity small-duct system requirements. Disconnect and lock out all electrical power to the air handler before beginning any plenum or duct connection work. Follow local mechanical codes and the manufacturer installation instructions for proper sealing and insulation continuity at all duct joints. Do not compress or puncture the closed-cell lining during fitting or fastening.

Technical Specifications

• Material: Galvanized Steel
• Width: 12 inches
• Height: 12 inches
• Length: 12 inches
• Weight: 2 pounds
• Shape: Square (Rectangle)
• Insulation: Closed-Cell Lining
• Capacity Range: 4 to 5 Ton

Standard Information

• Brand: THE UNICO SYSTEM
• Manufacturer Part Number: UPC-62-4860
