THE UNICO SYSTEM M3642CL1-B Refrigerant Coil Module 3-3.5 Ton R410A

Product Description

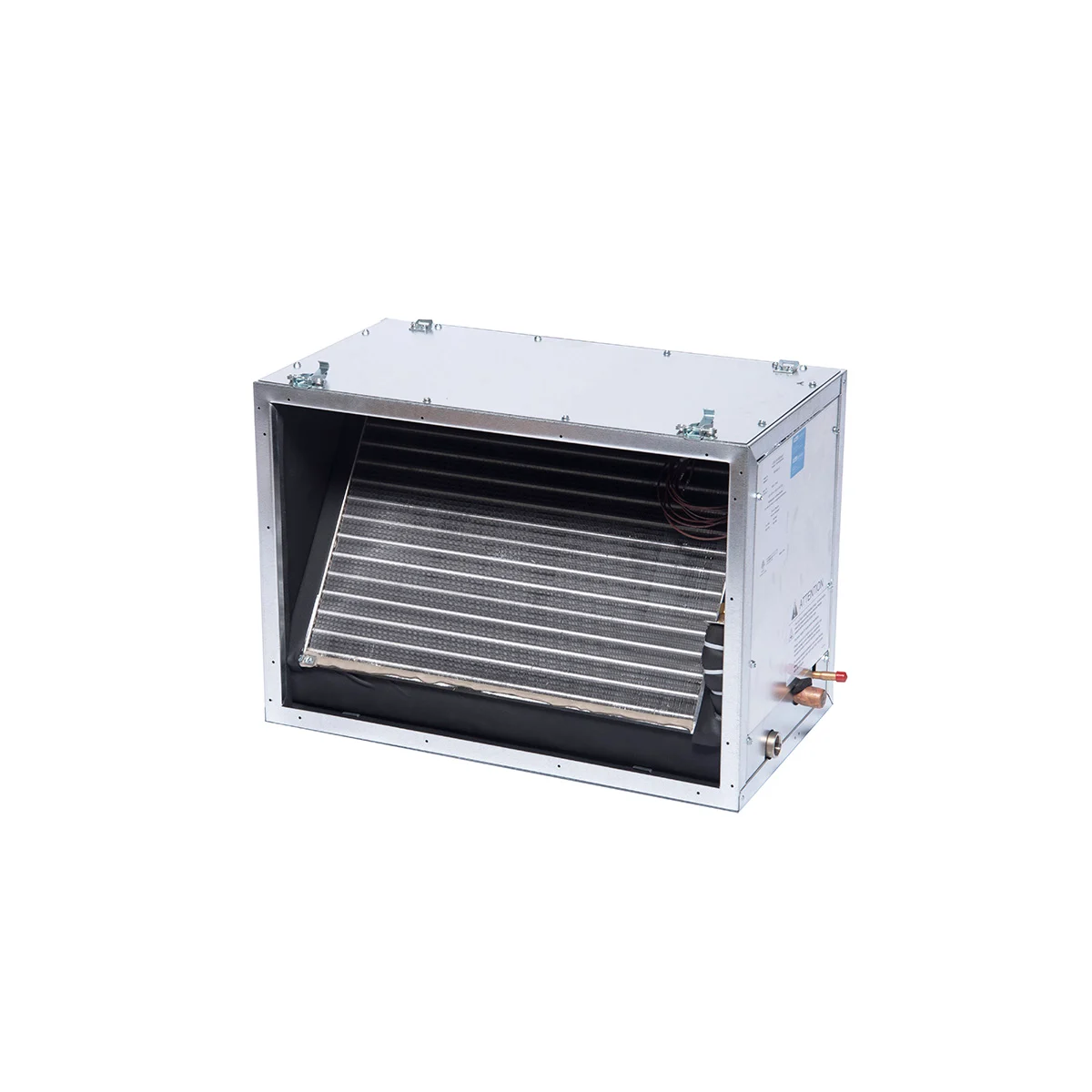

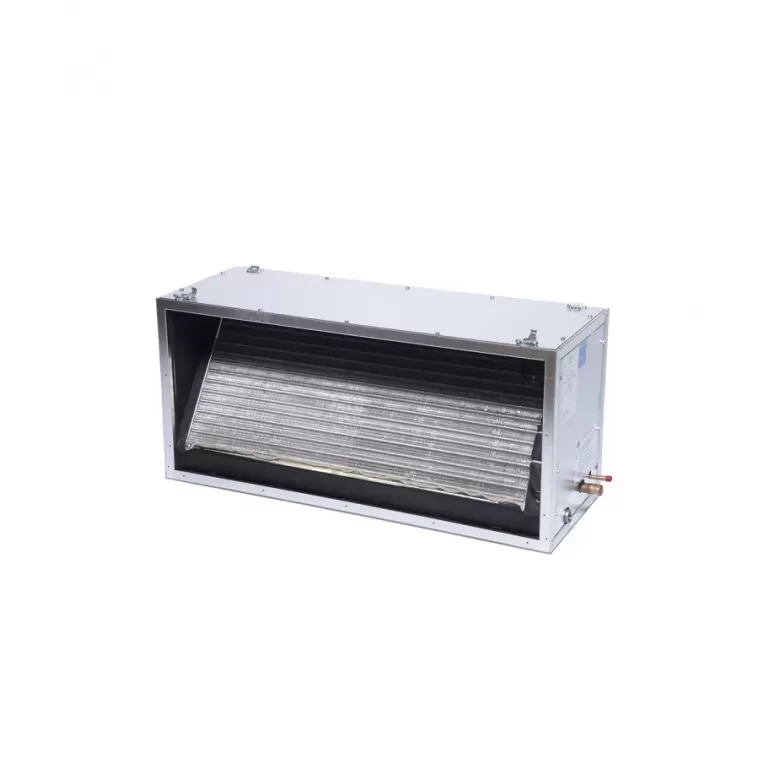

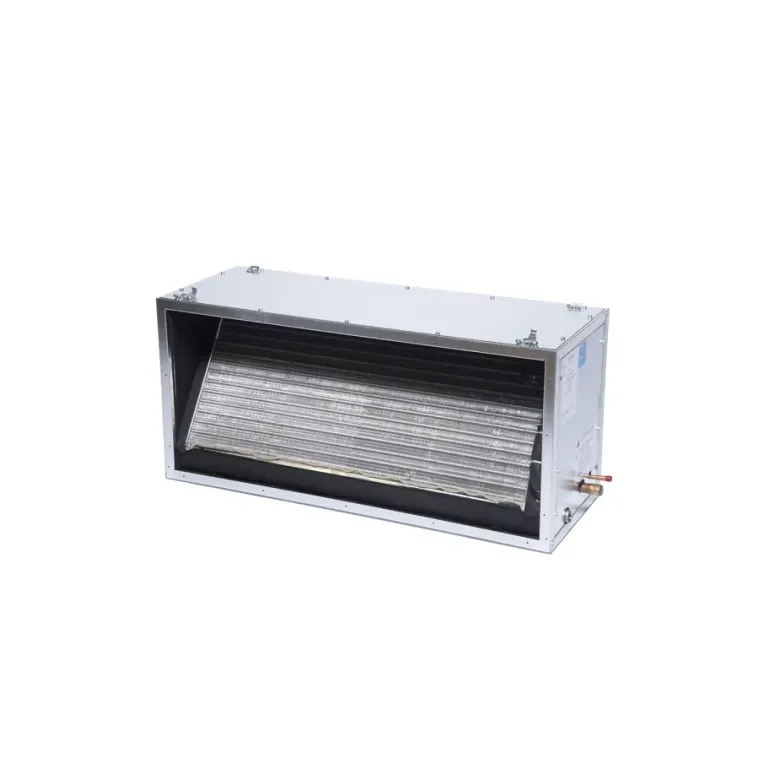

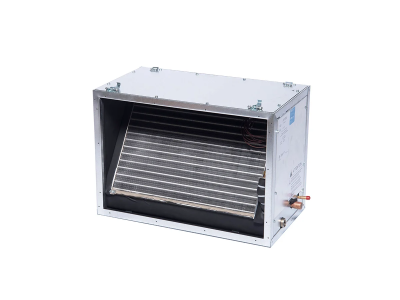

THE UNICO SYSTEM M3642CL1-B is a refrigerant coil module for three to three and a half ton applications. This product features a four-row deep coil and works with R410A refrigerant. It has a TXV and a stainless steel drain pan for efficient operation. The coil is versatile for both cooling-only and heat pump systems and can be installed in horizontal or vertical upflow setups. Bi-metal switches are included to prevent freezing.

• Compatible with R410A refrigerant.
• Includes a stainless steel drain pan.
• Suitable for horizontal and vertical upflow installation.

Product Highlights

This refrigerant coil module supports reliable heating and cooling performance in various HVAC systems.

Product Information

Standard Information

• Brand: THE UNICO SYSTEM
• MPN: M3642CL1-B

Technical Specifications

• Coil Type: Refrigerant
• Refrigerant Type: R-410A
• Tonnage: 3.0 Ton, 3.5 Ton, 4.0 Ton
• Nominal Capacity: 54,600 Btu/hr (12.3 kW)
• Installation Orientation: Horizontal, Vertical Upflow
• Material Type: Copper Tubes/Aluminum Fins
• Certifications: UL
• Product Depth: 13.75 inches
• Product Width: 38 inches
• Product Height: 17.5 inches
• Weight: 100 pounds
• Metering Device: TXV (R410A)
• Efficiency: 12 SEER
• Suction Line OD: 7/8 inches
• Liquid Line OD: 3/8 inches
