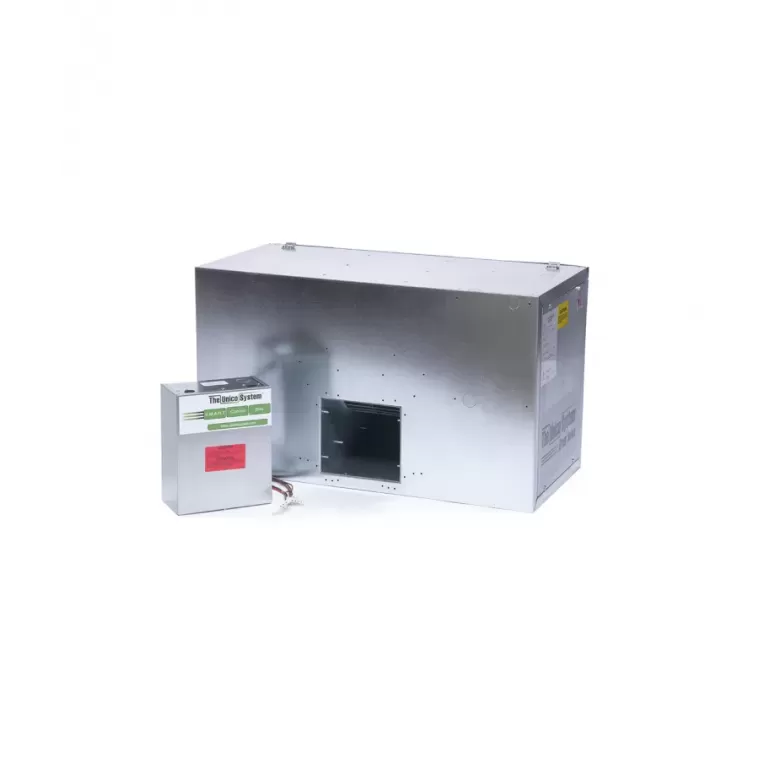

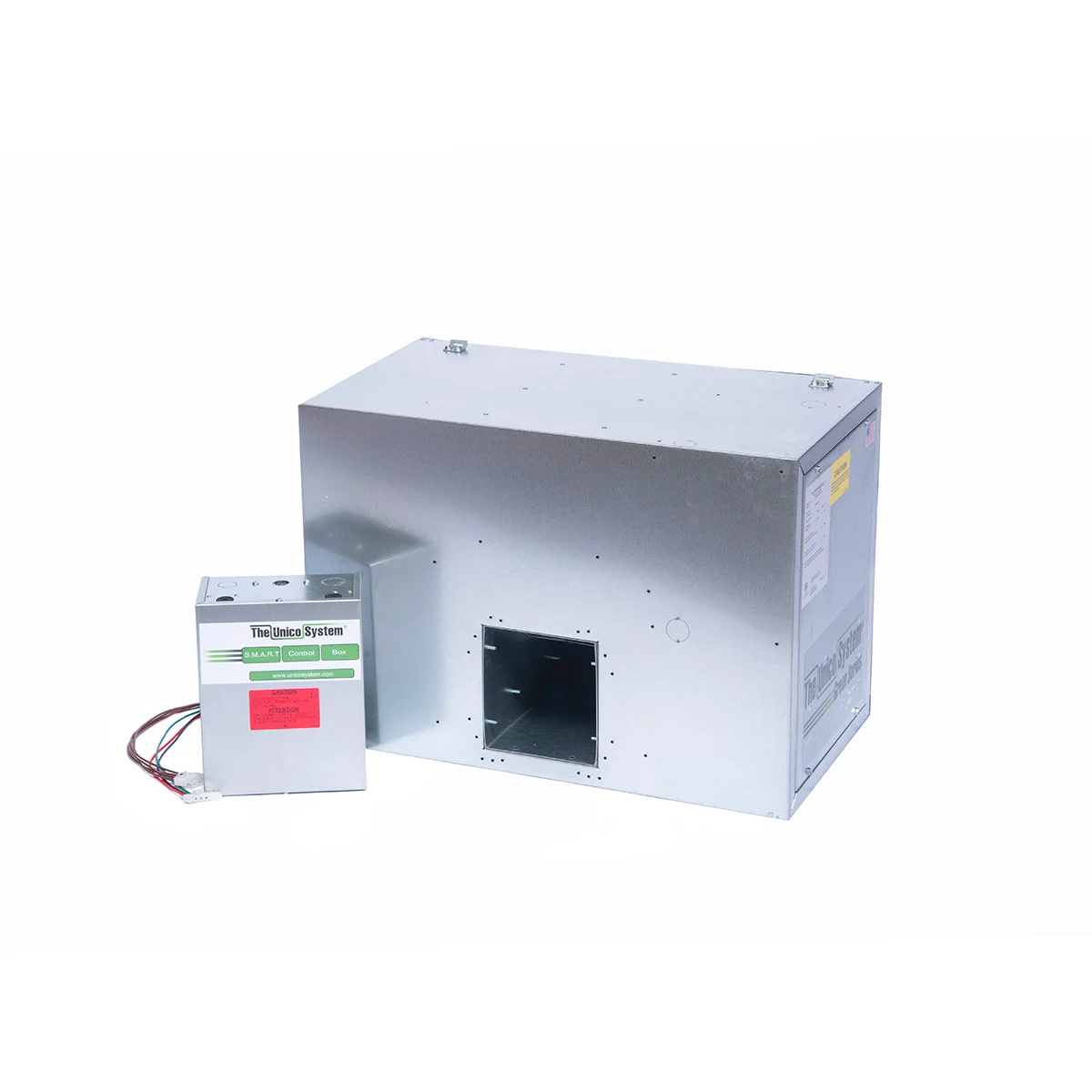

The Unico System M3642BL1-EC2 Blower Module, 3.0-3.5 Ton

Product Description

The Unico System M3642BL1-EC2 is a 3 to 3.5 ton left hand 208/230v ECM blower module designed for use with the Unico System small-duct high-velocity (SDHV) system. The blowers exceed U.S. Department of Energy requirements for SDHV systems. All cooling modules are available in Heat Pump, Chilled Water and refrigerant air conditioning configurations.

• Modular construction
• Multiple configurations
• EC Motor (variable speed)
• High system efficiency

Product Highlights

Designed for use with the Unico System small-duct high-velocity (SDHV) system. Exceeds U.S. Department of Energy requirements for SDHV systems.

Product Information

Standard Information

• Brand: THE UNICO SYSTEM
• Manufacturer Part Number: M3642BL1-EC2

Technical Specifications

• Product code: M3642BL1-EC2
• Manufacturer: Unico
• SKU: M3642BL1-EC2
• Model Series: M-Series
• Motor Type: EC
• Unico Model: 3642
• Power Supply: 208-230/1/60
• Brand: Unico
• Installation Orientation: Horizontal, Vertical Upflow
• Certifications: UL
• Tonnage: 3.0-Ton, 3.5-Ton
• Motor CFM @ 1.5" E.S.P.: 1000
• Motor HP and RPM: 1 HP 1700
• Cooling Capacity: 3 - 3.5 Ton
• Configuration: Horizontal/Vertical Upflow
• Blower Type: ECM - Variable Speed
• Product Voltage: 208-230 VAC 1 Ph 60 Hz
• Product Depth: 13.75 Inch
• Product Width: 38 Inch
• Product Height: 17.5 Inch
• Type: Blower Module
