The Flexitallic Group 150154SCGIFG 1-1/2 150 304ss cgi Flexitallic Gasket

Product Description

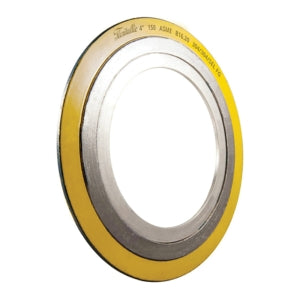

The THE FLEXITALLIC GROUP 150154SCGIFG is a spiral wound gasket style CG with internal ring for an additional compression limiting stop, with flexible graphite filler material. This 1-1/2 IN gasket is designed for Class 150 pressure applications. It features a 304 stainless steel inner ring and a carbon steel outer ring.

• Increased compressive force for blow-out prevention
• Fitted with an inner metal ring, constraining the sealing element on both internal and external diameters
• Inner ring functions as an additional compression stop and prevents inner buckling of the sealing element

Product Highlights

The gasket creates a physical barrier between the sealing element and process stream shielding from heat and media while preventing erosion. Suitable for ASME B16.5 and B16.47 series flanges.

Product Information

Standard Information

• Brand: THE FLEXITALLIC GROUP
• Manufacturer Part Number: 150154SCGIFG

Technical Specifications

• Item Name: Spiral Wound Gasket
• Series/Model: Style CGI
• Nominal Size: 1-1/2 IN
• Inside Diameter: 2.13 IN
• Outside Diameter: 3.38 IN
• Thickness: 1/8 IN
• Pressure Class: Class 150
• Material: 304 Stainless Steel Inner Ring, Carbon Steel Outer Ring, Flexicarb® Flexible Graphite Filler
• Finish/Color: Yellow Outer Ring, Gray Stripe
• Industry Standards: ASME B16.20, BS3381, Accordance With Military Specifications MIL-G-24716 And MIL-G-15342
• Maximum Pressure: 6251.14 PSI
• Temperature Rating: -400 To 842 DEG F
