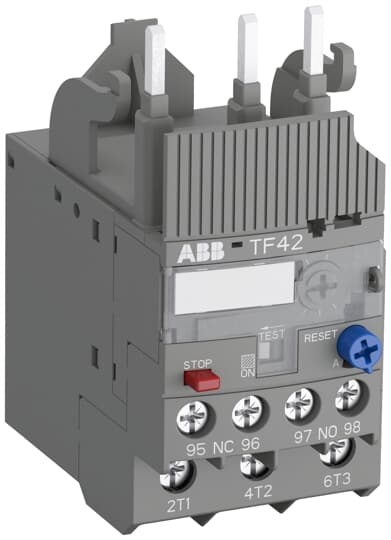

ABB TF42-24 Thermal Overload Relay 20-24A Manual/Auto Reset

Product Description

The ABB TF42-24 is a thermal overload relay designed to protect motors from overload and phase failure. This device is suitable for a wide range of industrial applications and provides a reliable solution for motor protection.

• Offers both automatic and manual reset options
• Compatible with single-phase and three-phase systems
• Features class 10 trip classification for precise operation

Product Highlights

Thermal and magnetic protection ensures the relay effectively guards against both overloads and phase failures. The compact design allows for easy integration into various setups. It operates in temperatures ranging from -25 to 60 degrees Celsius, suitable for diverse environmental conditions.

Product Information

Standard Information

• Brand: ABB
• MPN: TF42-24

Technical Specifications

• Current Range: 20-24 Amps
• Voltage Capacity: Main Circuit: 690VAC/VDC, Auxiliary Circuit: 600 Volt
• Wire Size: 14-6 AWG Stranded/Flexible
• Temperature Operation Range: -25 to 60 degrees Celsius
• Protection Class: IP20
• Number of Poles: 3 Pole
• Reset Type: Manual/Auto
