Product Description

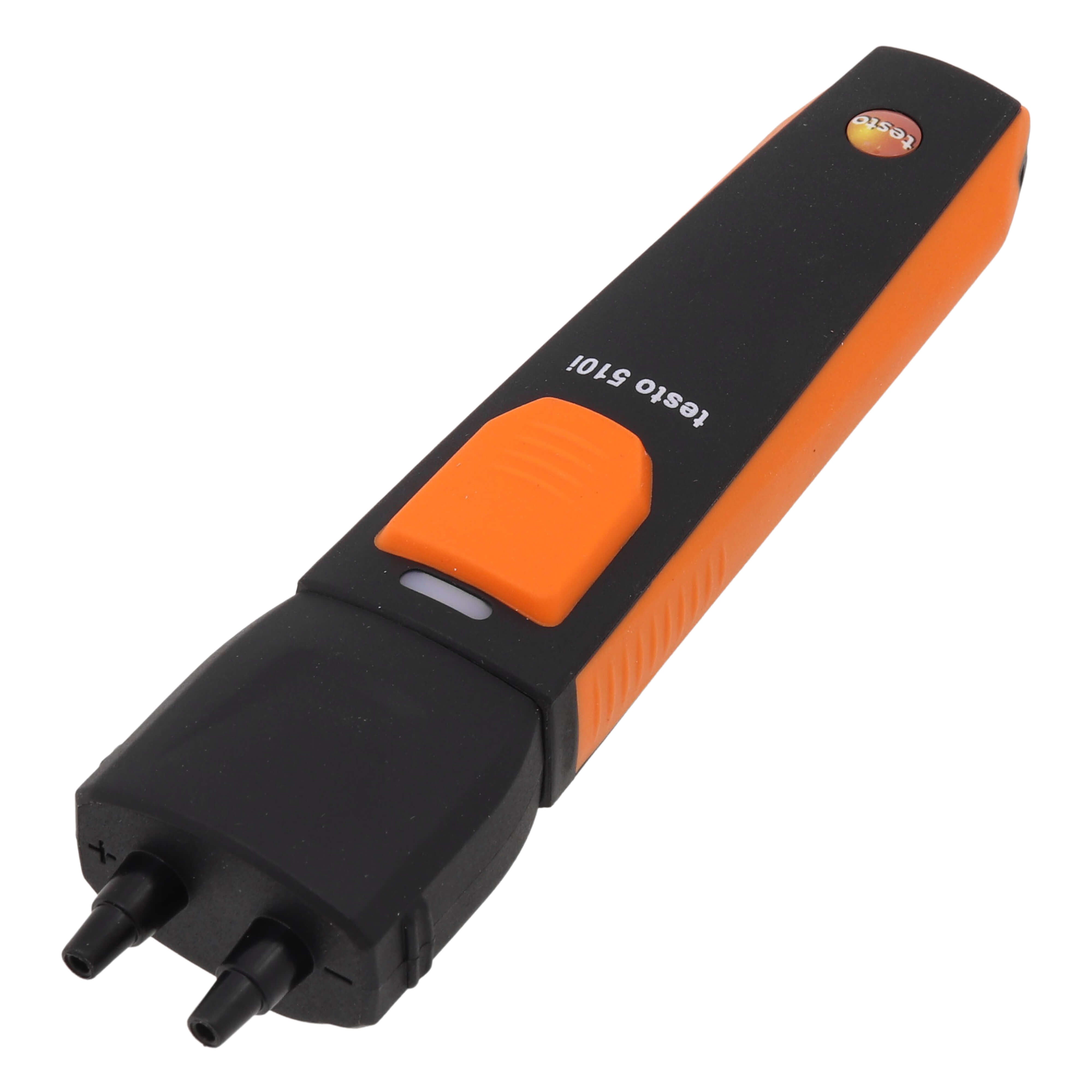

The Testo 0560-1510-01 Differential Pressure Manometer is designed for accurate low-pressure measurements. It connects wirelessly with the Testo Smart Probes App on Android or Apple devices. This manometer is ideal for measuring pressure in manifolds, static pressure, and pressure drops in buildings or ventilation systems.
- Measures static pressure, air flow, and volume flow
- Magnetic back for hands-free operation
- Data can be saved and shared via the app
Product Highlights
The Testo 510i is useful for determining air velocity and volume flow when used with Pitot tubes (not included). All measurement data is displayed as readings, tables, or graphs and can be saved in PDF or Excel formats. Requires iOS 8.3 or newer and Android 4.3 or newer with Bluetooth 4.0.
Product Information
Standard Information
-
Brand: Testo
-
Model: 0560-1510-01
-
Category: Testo Meters
Technical Specifications
-
Measures: Volume Flow, Static Pressure, Air Velocity, Air Flow
-
Battery Life: 150 Hours
-
Operating Temp Range: -4 to 122 degrees F
-
Weight: 0.4598 lb
-
Measurement Range: 0.4 to 30 m/s
-
Max Pressure: 60 in wc
-
Interface: Bluetooth 4.0
-
Accuracy: +/-0.2%
