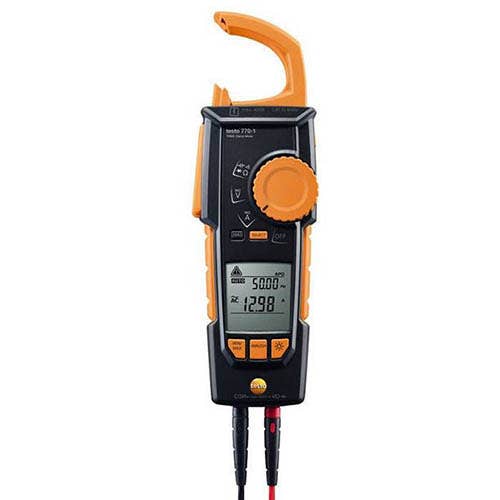

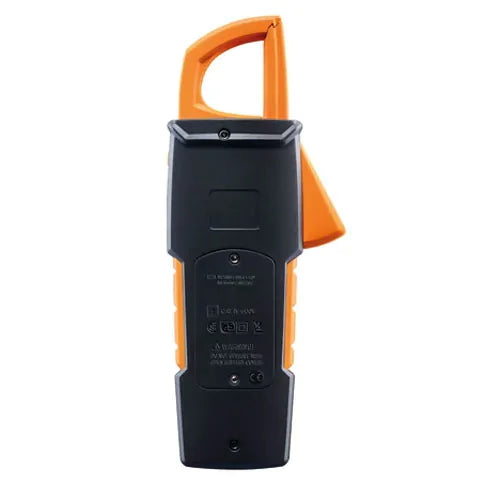

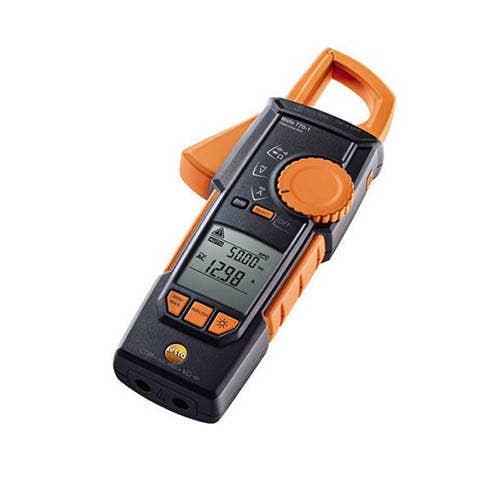

Testo 770-1 True-RMS Handheld Hook-Clamp Digital Multimeter 600VAC/DC, 400AAC/DC

Product Description

The Testo 770-1 True-RMS Handheld Hook-Clamp Digital Multimeter (0590 7701) features a hooking clamp to separate and grab wires, with an easy hook-off retractable post. It measures AC/DC voltage and current, resistance, capacitance, and frequency. Suited for electrical work in HVAC applications, it automatically selects the correct meter configuration.

• Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and continuity
• Captures inrush (starting) current and performs diode testing
• Automatically detects AC/DC for volts/amps and selects correct range

Product Highlights

The 770-1 is ideal for HVAC technicians, featuring TRMS, starting current, and frequency measurement. Its unique hook-on function allows hands-free wire handling.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 770-1
• Country of Origin: China

Technical Specifications

• Display (Counts): 4000
• Basic Accuracy: 0.8%
• AC/DC Voltage Range: 1 mV to 600VAC/DC
• AC/DC Current Range: 0.1A to 400AAC/DC
• Resistance Range: 0.1 Ω to 40 MΩ
• Capacitance Range: 0.001 μF to 100 μF
• Frequency Range: 1 Hz to 10 kHz
• Continuity: < 30Ω
• Diode Test: 2.5V
• Safety Category: CAT IV 600V/CAT III 1000V
• Standards: EN 61010-1, IEC 61376
• DC Voltage Measurement Range: 1.0 to 600 Volts
• DC Voltage Accuracy: ±(0.8% of mV + 3 Digit)
• AC Voltage Measurement Range: 1.0 mV to 600 Volts
• AC Voltage Accuracy: ±(1.0% of mV + 3 Digit)
• DC Current Measurement Range: 0.1 to 400.0 Amps
• DC Current Accuracy: ±(2.0% of mV + 5 Digit)
• AC Current Measurement Range: 0.1 to 400 Amps
• AC Current Accuracy: ±(2.0% of mV + 5 Digit)
• Resistance Measurement Range: 0.1 to 40.0 MOhm
• Resistance Accuracy: ±(1.5% of mV + 3 Digits)
• Capacitance Measurement Range: 0.01 nF to 100.00 μF
• Capacitance Accuracy: Max ±(1.5% of mV + 5 Digit)
• Capacitance Resolution: Max 0.01 nF
• Internal Resistance: 11 MOhm (AC/DC)
• Display Type: LCD
• Display Size: 2 Lines

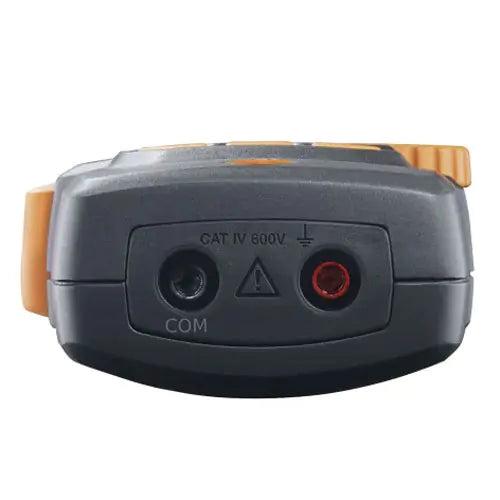

• Interface: 2 Measuring Jacks
• Power Supply: (3) AAA Batteries
• Operating Environment Temperature: -10°C to 50°C (14°F to 122°F)
• Operating Environment Humidity: 0 to 80% RH
• Storage Environment Temperature: -15°C to 60°C (5°F to 140°F)
• Standards Compliance: CE, CSA, EN 61326-1, EN 61010-2-032, EN 61140, CAT IV 600 Volts
