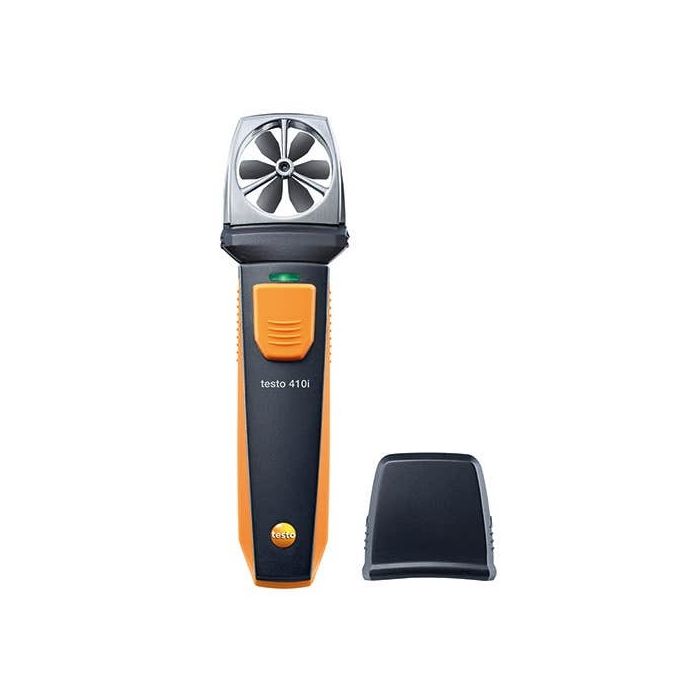

Testo 560141001 410i vane anemometer smart probe 1pc

Product Description

The TESTO 560141001 410i Vane Anemometer Smart Probe is a compact wireless instrument designed for measuring air velocity, temperature, and deriving volume flow. It is ideal for use at air outlets and for monitoring ventilation systems. This smart probe connects wirelessly to a smart device via Bluetooth 4.0, allowing users to read measurements and configure volume flow calculations using the Testo Smart Probes App. It supports timed multipoint averaging for accurate air flow profiles.

• Measures air velocity, volume flow, and temperature.
• Connects via Bluetooth to a smart device for data transmission and app-based control.
• Enables timed/multi-point averaging for accurate air flow profiles.

Product Highlights

Compact wireless vane anemometer for HVAC/R applications, offering accurate air velocity, temperature, and volume flow measurements.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 560141001

Technical Specifications

• Brand: Testo Hvac Instruments
• MPN: 560141001
• Model Number: 0560-1410-01
• Product Type: 410i Vane Anemometer Smart Probe
• Sensor Type: Vane
• Temperature Sensor Type: NTC
• Sensing Method: Rotating Vane and Thermistor
• Air Velocity Measuring Range: 0 to 6,000 fpm
• Air Velocity Accuracy: ±(40 fpm +2 % of m.v.) (78 to 6,000 fpm)
• Air Velocity Resolution: 20 fpm
• Volume Flow Range: 0 to 99,999 cfm
• Volume Flow Resolution: 0.1 cfm
• Temperature Measuring Range: -4 to 140 °F
• Temperature Accuracy: ±0.9 °F
• Temperature Resolution: 0.1 °F
• Dew Point Temperature Range: -4 to 140 °F
• Humidity Sensing: No
• Operating Temperature: -4 to 122 °F
• Storage Temperature: -4 to 140 °F
• Vane Diameter: 1.6 in
• Vane Material: Metal
• Power Source: 3 AAA Batteries
• Battery Life: 200 hrs
• Auto Power Off: Yes
• Data Hold: Yes
• Data Logging: No
• Interface: Bluetooth 4.0
• Compatibility: requires iOS 8.3 (or later) / Android 4.3 (or later) requires mobile device with Bluetooth 4.0
• Measuring Units: °F, °C, fpm, m/s, cfm, m³/h, l/s
• Velocity (Knots): 0 to 59.2
• Velocity (KPH): 109.8
• Velocity (MPH): 0.12 to 68
• Velocity (m/s): 0 to 68
• Calibration Certificate: Certificate of Conformity
• Case Color: Black
