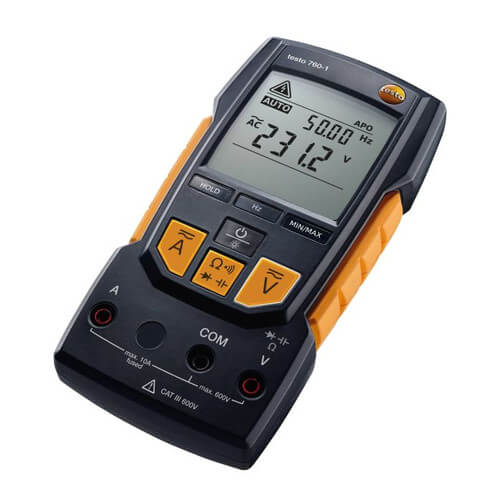

Testo 05907601 Digital Multimeter with Auto-Test and Capacitance

Product Description

The Testo 05907601 is a digital voltage multimeter designed for both AC and DC measurements. This multimeter features an auto-test setup that simplifies the measuring process for users. By connecting the leads and turning on the device, the multimeter automatically detects the measurement type and range.

• Auto-test function prevents incorrect connections
• Easy-to-read buttons for selecting test functions
• Capacitance measurement capability included

Product Highlights

The Testo 05907601 ensures accurate measurements by automatically configuring itself based on the lead connections. The absence of a traditional rotary switch allows for a more robust design.

Product Information

Standard Information

• Manufacturer: Testo
• UPC: 29547013942

Technical Specifications

• DC Voltage Resolution: 400 mV / 0.1 mV, 4.000 V / 1 mV, 40.00 V / 10 mV, 400.0 V / 100 mV, 600 V / 1 V
• DC Voltage Accuracy: ± (0.8 % of mv + 3 Digit)
• AC Voltage Resolution: 400 mV / 0.1 mV, 4.000 V / 1 mV, 40.00 V / 10 mV, 400.0 V / 100 mV, 600 V / 1 V
• Resistance Resolution: 400.0 Ohm / 0.1 Ohm, 4.000 kOhm / 1 Ohm, 40.00 kOhm / 10 Ohm, 400.0 kOhm / 100 Ohm, 4.000 MOhm / 1 kOhm, 40.00 MOhm / 10 kOhm
• Weight: 12 oz / 340 g
• Dimensions: 7 x 3 x 2 inches
• Operating Temperature: 14°F to 122°F / -10°C to +50°C
• Protection Class: IP64
