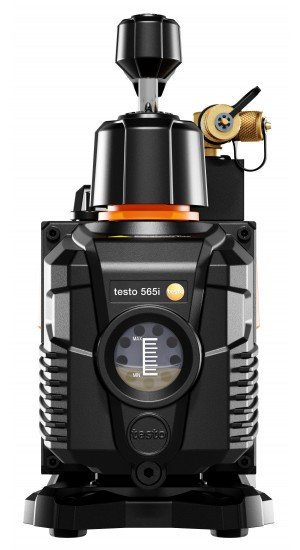

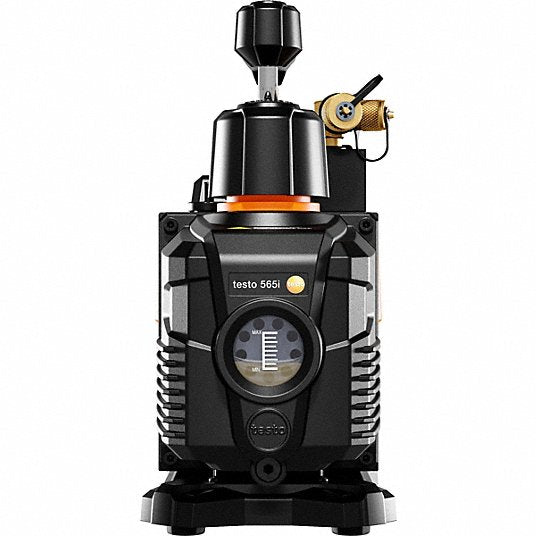

Testo 0564 5653 01 565i Smart Vacuum Pump 10 CFM

Product Description

The Testo 0564 5653 01 565i Smart Vacuum Pump makes evacuations incredibly easy. This vacuum pump performs refrigeration system and heat pump evacuations completely automatically. Configuration, monitoring of live readings and sending of the measurement report are all easily controlled via the free testo Smart App. It can be safely used even with flammable class A2L and A3 refrigerants.

• Fully automated evacuation process with integrated holding test when used in combination with the testo 552i vacuum probe
• Can be safely used even with flammable class A3 and A2L refrigerants
• One app for everything: Configure and monitor measurements and manage data with the testo Smart App

Product Highlights

The testo 565i smart vacuum pump is efficient and reliable. Data logging function ensures complete documentation. Simple oil change mechanism and the sight glass allows for quick assessment of the oil level.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 0564 5653 01
• Country of Origin: China

Technical Specifications

• Operating Temperature: 41 to 104 °F / +5 to +40 °C
• Standards: ISO VG 46
• Connection: 1/4 SAE, 3/8 SAE,1/2 SAE
• Interface: Bluetooth 5.0 ®
• Radio Range: 98.424 ft. / 30 m
• Ultimate Vacuum: 15 micron
• Pump Type: Rotary vane pump, two-stage
• Flow Rate: 10 CFM / 283 l/min
• Refrigerant: A2L/A2/A3 certified
• Number of Stages: Two-stage pump
• Bluetooth: BLE 5.0: 98' (30 m) distance
• App System Requirements: Android 8.0|iOS 13.1
• RoHs: Yes
• Power: Plug: 110 V/50 Hz
• Brand: TESTO
• Manufacturer Part Number: 0564 5653 01
• Series: 565i
• Application: Commercial; Industrial; Residential
• Product Type: Vacuum Pump
• Mobility: Handle
• Power Source: Plug-In
• A2L Compatibility: A2L Compatible
• Displacement: 10 cfm
• Horsepower: 3/4 hp
• Motor Type: Brushless DC
• Drive Type: Direct Drive
• Voltage: 120V AC
• Frequency: 60 Hz
• Current: 3.3 A
• Plug Configuration: 5-15P
• Cord Length: 4 ft
• Number of Inlet Ports: 3
• Inlet 1 Port Connection Size: 1/4 in
• Inlet 1 Port Connection Gender: Male
• Inlet 1 Port Connection Type: SAE
• Inlet 1 Port Connection Thread Direction: Right-Hand
• Inlet 2 Port Connection Size: 3/8 in
• Inlet 2 Port Connection Gender: Male
• Inlet 2 Port Connection Type: SAE
• Inlet 2 Port Connection Thread Direction: Right-Hand
• Inlet 3 Port Connection Size: 1/2 in
• Inlet 3 Port Connection Gender: Male
• Inlet 3 Port Connection Type: SAE
• Inlet 3 Port Connection Thread Direction: Right-Hand
• Reservoir Port Connection Size: 1/2 in
• Reservoir Port Connection Gender: Female
• Reservoir Port Connection Type: NPT
• Reservoir Port Connection Thread Direction: Right-Hand
• Drain Port Connection Size: 3/8
• Drain Port Connection Gender: Female
• Drain Port Connection Type: SAE
• Drain Port Connection Thread Direction: Right-Hand
• App Compatibility: testo Smart
• Connectivity: Bluetooth
• Battery Recharge: Not Rechargeable
• Oil Capacity: 18.4 oz
• Includes Isolation Valve: Isolation Valve Included
• Includes Vacuum Gauge: Gauge Not Included
• Includes Gas Ballast: Gas Ballast Included
• Includes Sightglass: Sightglass Included
• Includes Oil Mist Filter: Oil Mist Filter Included
• Includes: Oil
• Includes Hoist Clip: Hoist Clip Not Included
• Body Material: Metal
• Operating Temperature - Minimum: 41 °F
• Operating Temperature - Maximum: 104 °F
• Calibration Certificate Type: Available Separately
• Overall Height: 12.4 in
• Overall Length: 14.8 in
• Overall Width: 5.9 in
• Accessories: 0554 2111, 0554 2112, 0554 1002
• Temperature Range: 41 to 104°F
• Type: Vacuum Pump
• Model: 0564 5653 01
• MPN: 0564 5653 01
• Equipment Type: Vacuum Pump
