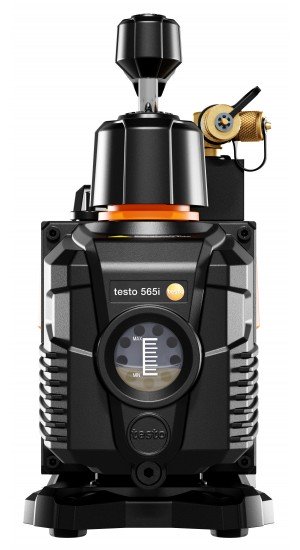

Testo 0564 5652 01 565i Smart Vacuum Pump 7 CFM

Product Description

The TESTO 0564 5652 01 565i smart vacuum pump automates evacuations on refrigeration systems and heat pumps. It features a 7 CFM / 198 l/min flow rate and compatibility with A2L and A3 refrigerants. When paired with a smart vacuum probe, it automatically performs evacuations and integrated decay tests, ensuring no leaks in the refrigeration circuit. Data can be monitored live through the Smart App.

• Fully automated evacuation process with integrated holding test when used in combination with the testo 552i vacuum probe
• Can be safely used even with flammable class A3 and A2L refrigerants
• One app for everything: Configure and monitor measurements and manage data with the testo Smart App

Product Highlights

Automates the entire process, from evacuation to holding tests, allowing users to save time. Easy oil change and sight glass for quick assessment of the oil level.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 0564 5652 01
• Country of Origin: United States

Technical Specifications

• Operating Temperature: 41 to 104°F (5 to 40°C)
• Standards: Oil compatibility: ISO VG 46
• Connection: 1/4 SAE, 3/8 SAE,1/2 SAE
• Interface: Bluetooth 5.0 ®
• Radio Range: 98.424 ft. / 30 m
• Ultimate Vacuum: 15 micron
• Pump Type: Rotary vane pump
• Flow Rate: 7 CFM/198 l/min
• Number Of Stages: Two-stage pump
• Oil: CompabiIity: ISO VG 46 Maximum capacity: 20.6 fl oz (610 ml)
• Voltage: 230 V 50 Hz
• Current: Rated: 1.9 A Maximum: 4.8 A
• Sound: Pressure level at working station: 67.13 Db(A), K = 3 Db(A) Power level: 76.29 Db(A), K = 3 Db(A)
• App System Requirements: Android 8.0
• Power: 800 W
• Brand: Testo
• Model: 0564 5652 01
• MPN: 0564 5652 01
• Equipment Type: Vacuum Pump
• Refrigerant: A2L/A2/A3 certified
• Connection Sizes: 1/4, 3/8, 1/2" SAE
