Testo 0564 5504 01 550s Smart Vacuum Kit Smart Digital Manifold

Product Description

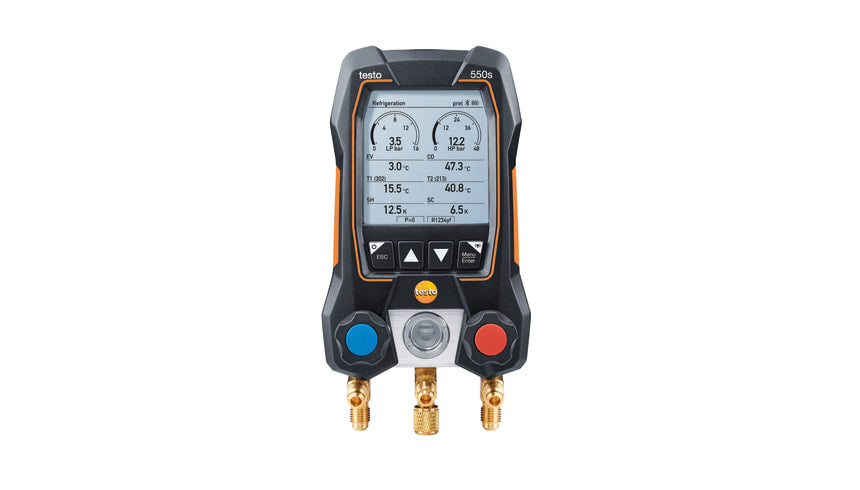

The TESTO 0564 5504 01 is a smart digital manifold kit designed for HVAC/R systems. It includes the testo 550s manifold with Bluetooth and a 2-way valve block, a wireless micron gauge testo 552i, and two wireless Bluetooth clamp thermometers testo 115i. This kit provides wireless measurement of vacuum and temperature, displaying all results on a large graphic display. Its robust housing offers IP 54 protection, ensuring reliability in various environments. The testo Smart App allows for flexible measurement and documentation.

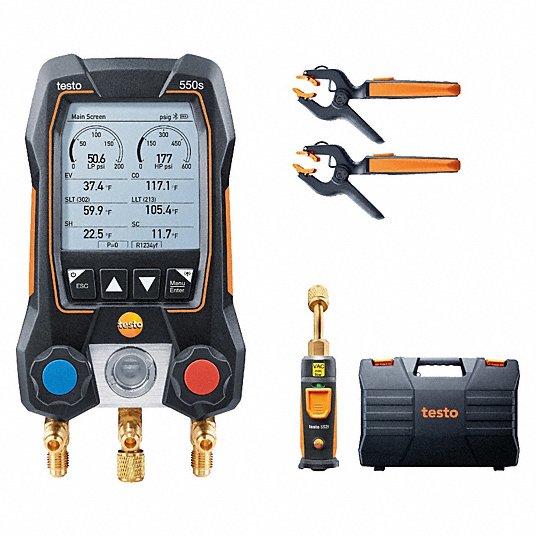

• Smart digital manifold testo 550s with Bluetooth and 2-way valve block, including wireless vacuum and temperature probes.

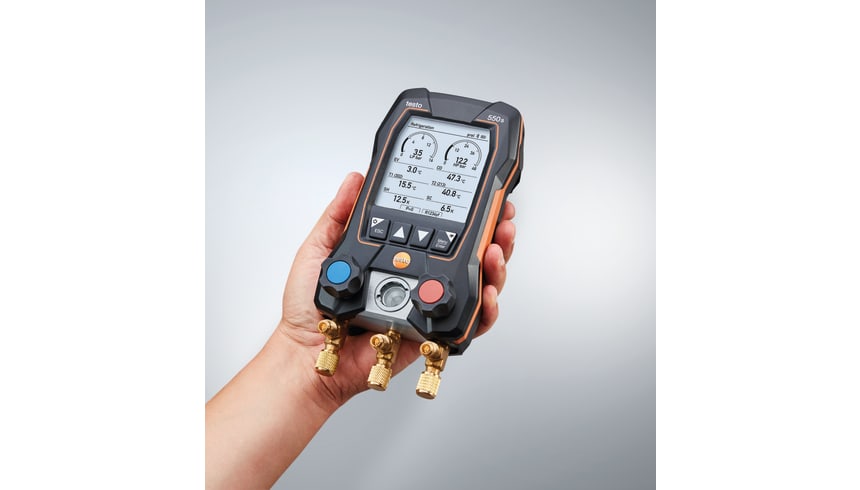

• Large graphic display provides all measurement results at a glance.
• Robust housing with IP 54 protection class ensures compact and reliable operation.

Product Highlights

This kit facilitates wireless vacuum and temperature measurements for HVAC/R applications, featuring a smart digital manifold, wireless probes, and app integration for data management.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 0564 5504 01
• Country of Origin: China

Technical Specifications

• Country of Origin: China
• Product Type: Digital Wireless Manifold Gauge Set
• Application: Charging, Pressure, Temperature
• Number of Valves: 2
• Number of Hoses: 3
• Display Type: Digital
• Gauge Type: High Side/Low Side
• Display Illumination: Backlit
• Pressure Units: bar; psi
• Temperature Units: °F
• Standards: EU Directive: 2014/30/EU
• Body Material (Manifold): Aluminum; Brass; Plastic
• App Compatibility: measureQuick; testo Smart
• Series: 550s
• Power Source: Battery
• Response Time: Instantaneous
• Temperature Measuring Range (Manifold): -58° to 302 °F / -50 to +150 °C
• Temperature Accuracy (Manifold): ±0.9 °F / ±0.5 °C
• Temperature Resolution (Manifold): 0.1 °F / 0.1 °C
• Temperature Probe Connection: 2 x plug-in (NTC)
• Pressure Measuring Range (Manifold): -15 to 870 psi / -1 to 60 bar
• Pressure Accuracy (Manifold): ±0.5 % Fs
• Pressure Resolution (Manifold): 0.14 psi / 0.01 bar
• Pressure Probe Connection: 3 x 7/16" – UNF
• Overload Pressure (Manifold): 943 psi / 65 bar
• Weight (Manifold): 29.14 oz. / 826 g
• Dimensions (Manifold): 8.27 x 4.76 x 2.36 in. / 210 x 121 x 60 mm (LxWxH)
• Operating Temperature (Manifold): -4° to 122 °F / -20 to +50 °C
• IP Protection Class (Manifold): IP54
• System Requirements: iOS 12.0 or newer; Android 6.0 or newer; mobile end device with Bluetooth 4.2
• Auto-off Time: 10 min
• Battery Life (Manifold): 250 h (no illumination, no Bluetooth); 100 h (illumination and Bluetooth)
• Battery Type (Manifold): 4 x AA batteries
• Data Transfer Method: Bluetooth®
• Bluetooth Technology: Bluetooth® 5.0
• Bluetooth Range: 492.12 ft. / 150 m
• Supported Refrigerants: R11; R114; R1150; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R1270; R13; R134a; R13B1; R14; R142B; R152A; R161; R170; R22; R227; R23; R236fa; R245fa; R290; R32; R401A; R401B; R401C; R402A; R402B; R404A; R406A; R407A; R407B; R407C; R407D; R407F; R407H; R408A; R409A; R411A; R412A; R413A; R414B; R416A; R417A; R417B; R417C; R420A; R421A; R421B; R422A; R422B; R422C; R422D; R424A; R426A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R508A; R508B; R513A; R600; R600a; R718 (H₂O); R744 (CO₂); FX80; I12A; Ra11A; RIS89; SP22
• Refrigerant Compatibility: A2L / A3 compatible
• Storage Temperature (Manifold): -4° to 140 °F / -20 to +60 °C
• Temperature Measuring Range (Clamp Thermometer): -40° to 302 °F / -40 to +150 °C
• Temperature Accuracy (Clamp Thermometer): ±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C)
• Temperature Resolution (Clamp Thermometer): 0.1 °F / 0.1 °C
• Weight (Clamp Thermometer): 4.49 oz. / 127.4 g
• Dimensions (Clamp Thermometer): 7 x 4 x 1 in. / 183 x 90 x 30 mm
• Operating Temperature (Clamp Thermometer): -4° to 122 °F / -20 to +50 °C
• Housing Material (Clamp Thermometer): Plastic
• Battery Type (Clamp Thermometer): 3 x AAA
• Battery Life (Clamp Thermometer): 150 h
• Storage Temperature (Clamp Thermometer): -4° to 140 °F / -20 to +60 °C
• Absolute Pressure Measuring Range (Vacuum Probe): 0 to 0.39 psi / 0 to 26.66 mbar / 0 to 20000 micron
• Absolute Pressure Accuracy (Vacuum Probe): ±10 micron + 10 % of mv (100 to 1000 micron)
• Absolute Pressure Resolution (Vacuum Probe): 100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron)
• Absolute Pressure Overload (Vacuum Probe): absolute: 87.0 psi / 6.0 bar (relative: 72.5 psi / 5.0 bar)
• Weight (Vacuum Probe): 5 oz. / 142 g
• Dimensions (Vacuum Probe): 6 x 1 x 1 in. (LxWxH) / 150 x 32 x 31 mm (LxWxH)
• Operating Temperature (Vacuum Probe): 14.0° to 122.0 °F / -10 to +50 °C
• IP Protection Class (Vacuum Probe): IP54
• Battery Type (Vacuum Probe): 3 x AAA
• Battery Life (Vacuum Probe): 39 h
• Connection (Vacuum Probe): 7/16“ UNF
• Bluetooth Interface (Vacuum Probe): Bluetooth® 4.2
• Storage Temperature (Vacuum Probe): -4.0° to 122.0 °F / -20 to +50 °C
