Testo 0563 0510 01 Digital Manometer 510 (Pocket) Replacement MPN

Product Description

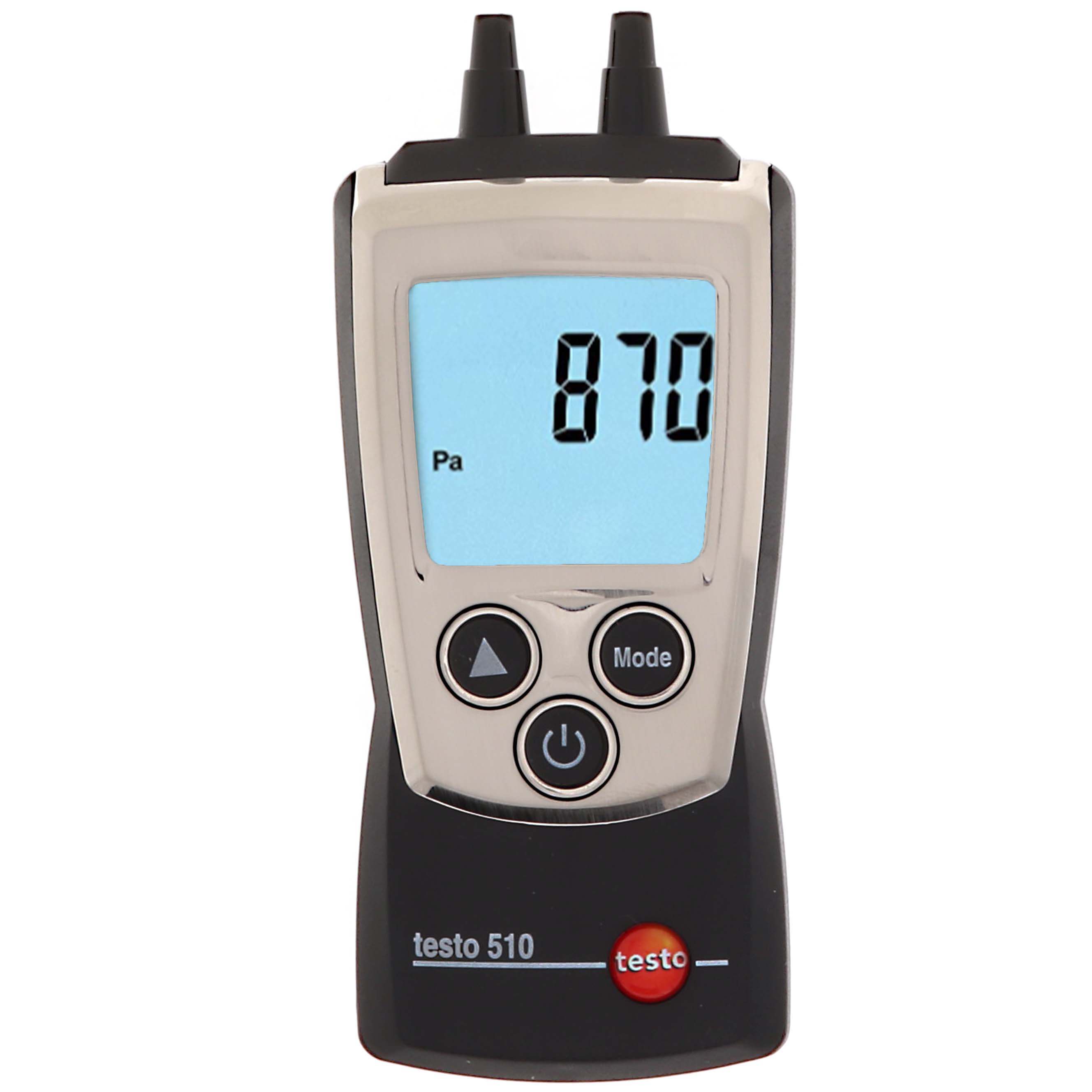

The Testo 510 Digital Manometer, MPN 0563051001, is designed for accurate pressure measurements. This compact measurement tool enables users to effectively perform differential pressure readings in HVAC applications. It measures differential pressure from zero to one hundred hPa and is equipped with a backlit display for low-light conditions.

• Temperature compensated pressure sensor

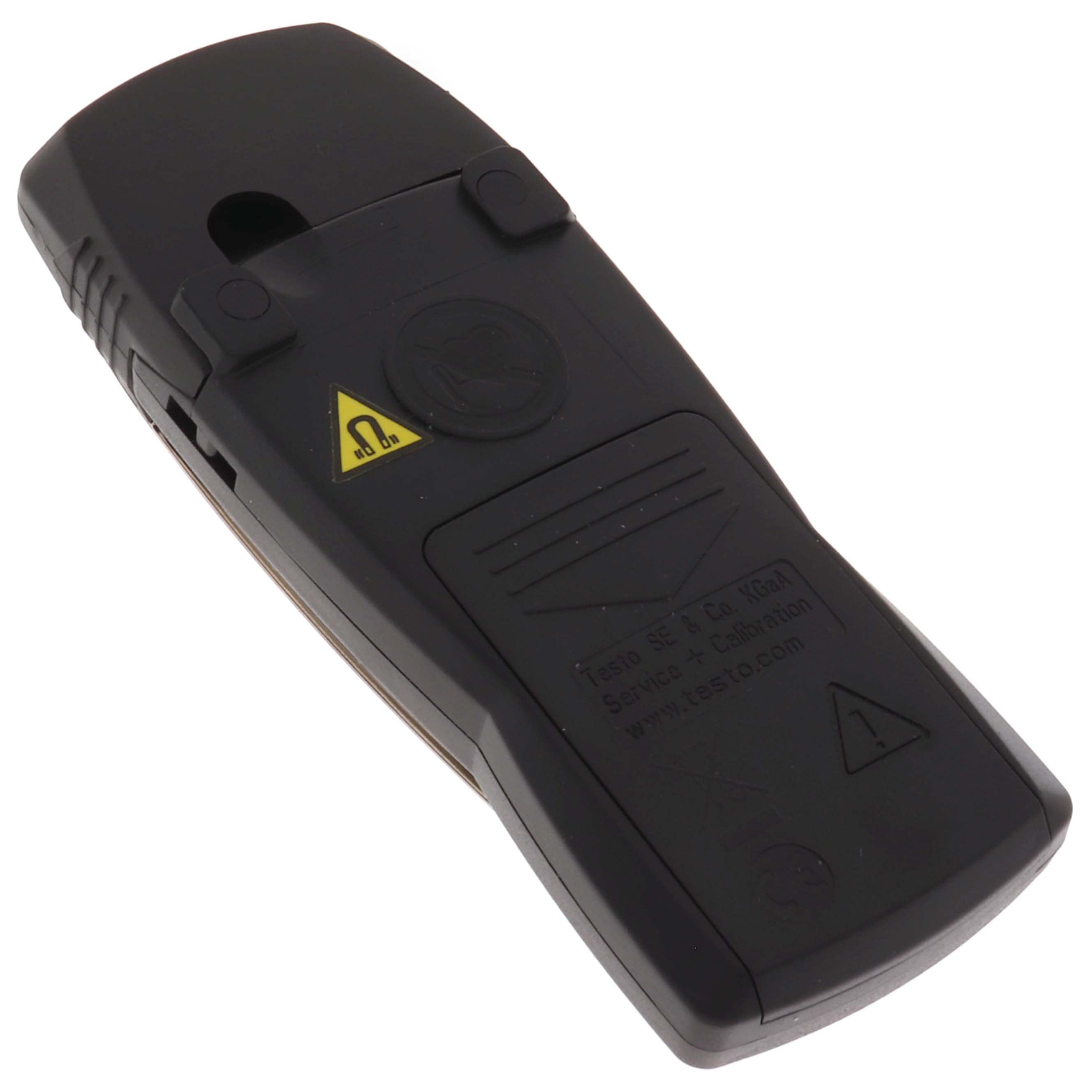

• Magnetic backing for hands-free operation
• User adjustable air density compensation

Product Highlights

This manometer is ideal for checking filters on air conditioning systems and measuring static gas pressure on heating systems.

Product Information

Standard Information

• Brand: Testo
• MPN: 0563051001

Technical Specifications

• Measuring Range: 0 - 100 hPa
• Pressure Rating: 1.5 bar
• Dimension: 5 in L x 2 in W x 1 in H
• Battery Type: (2) AAA Micro
• Battery Life: 50 hr
• Operating Temperature: 0 - 122 deg F
• Accuracy: Plus/Minus 0.03 hPa, Plus/Minus 0.05 hPa
• Resolution: 0.01 hPa

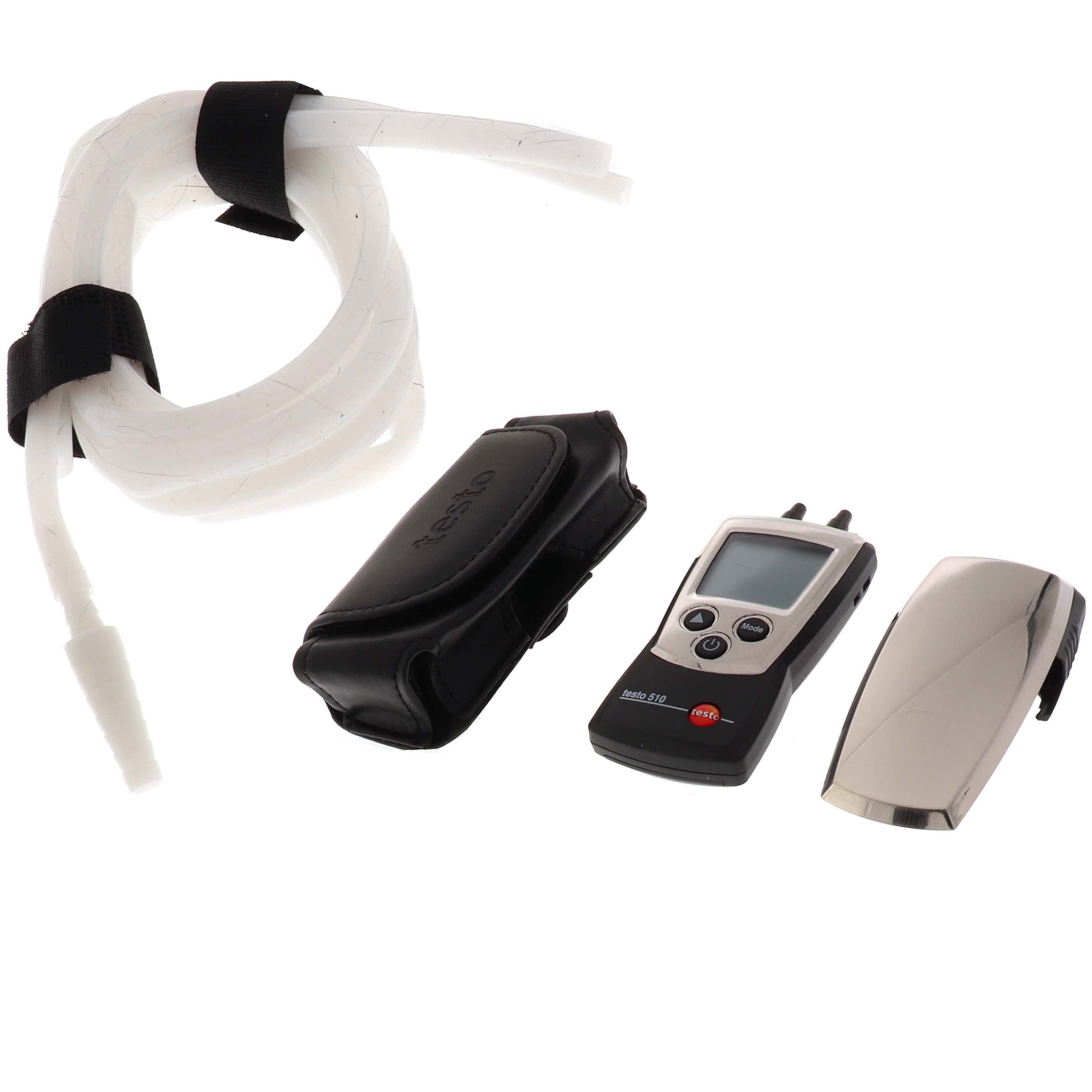

• Includes: Protection cap, batteries, belt holder, and calibration protocol
