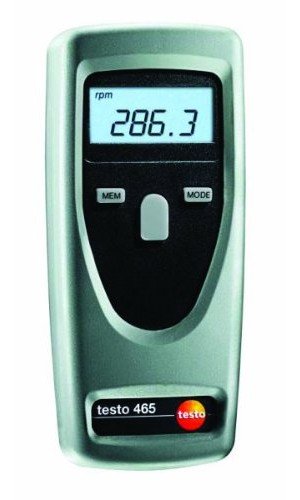

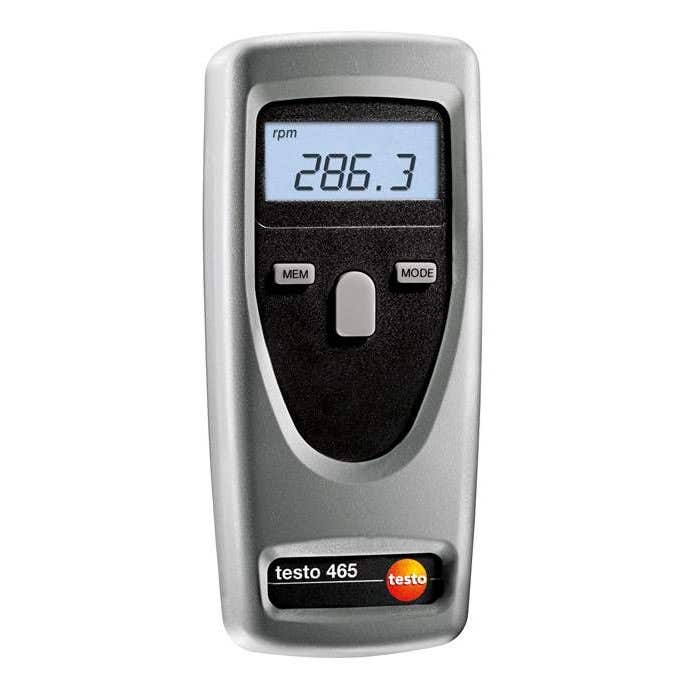

Testo 0563 0465 465 non-contact tachometer 1 - 100,000 rpm kit

Product Description

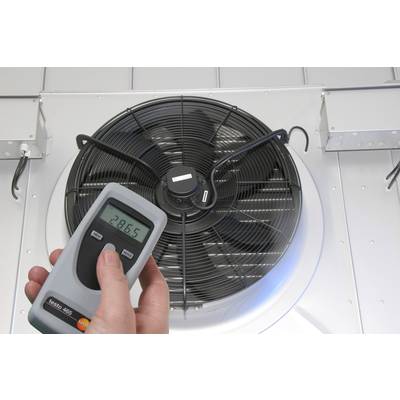

The TESTO 0563 0465 465 Non-Contact Tachometer is designed for quick and easy RPM measurement on rotating parts like fans, shafts, motors, and conveyor belts. This portable instrument allows for non-contact revolution measurement by pointing a visible red light beam at a reflective marker attached to the object. It measures speeds from 1 to 99,999 RPM, providing accurate readings for various industrial applications. The unit stores mean, min, max, and the last measurement values.

• Easy one-handed operation for non-contact RPM measurement
• Measures rotational speeds from 1 to 99,999 RPM with ±0.02% of mv accuracy
• Stores mean, minimum, maximum, and last measurement values

Product Highlights

The Testo 465 includes a protective SoftCase and reflective markers, offering a measurement distance up to 600 mm.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 0563 0465
• Country of Origin: Germany

Technical Specifications

• RPM Range (Optical): 1 to 99999 rpm
• RPM Accuracy (Optical): ±0.02 % of mv
• Resolution: 0.1 rpm (100 to 999.9 rpm), 0.01 rpm (1 to 99.99 rpm), 1 rpm (1000 to 99999 rpm)
• Display Type: LCD
• Display Size: one-line
• Storage Temperature: -4 to +160°F
• Operating Temperature: +32 to +122°F
• Battery Type: 2 AA batteries
• Battery Life: 40 hr
• Dimensions (L x W x H): 5.7 x 2.3 x .8 in
• Weight: 190 g
• Measurement Distance: up to 600mm
• Measuring Type: Optical
