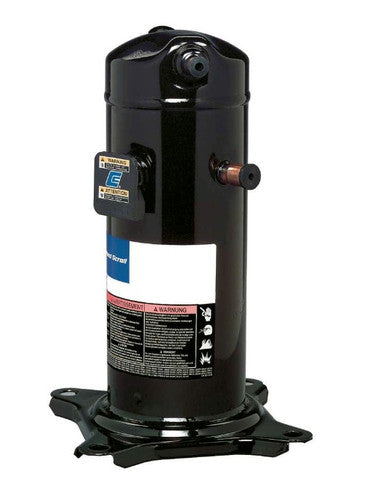

Tempstar ZP31K5E-PFV-830 ZP Series Scroll Compressor 31,000 BTUH R410A 208 to 230 Volts BOM-830

Product Description

The Tempstar ZP31K5E-PFV-830 is a scroll compressor designed for HVAC applications. This model features a capacity of thirty-one thousand BTUH and operates efficiently using R410A refrigerant.

• Single-stage operation for reliable performance
• Voltage range of 208 to 230 volts
• Equipped with internal motor protection

Product Highlights

This compressor is suitable for residential and light commercial systems, providing optimal comfort and energy efficiency.

Product Information

Standard Information

• Manufacturer: Tempstar
• Part Number: 050618

Technical Specifications

• Capacity (Btuh): 31,000
• RLA: 18.6
• MCC (Amps): 26.0
• Discharge Connection: 1/2 Stub
• Suction Connection: 3/4 Stub
• Dimensions (L x H x W): 9.56 x 15.27 x 9.56 inches
• Initial Oil Charge: 25 ounces
• Internal Free Volume: 119.4 in³
• LRA (High): 79.0
• Max Operating Current: 17.8
• Model Variation: 5
• Motor Protection: Internal Inherent Protection
• Motor Type: Single-Phase
• Oil Recharge: 21 ounces
• Oil Type: Polyol Ester Oil
• Refrigerant: R410A
• Voltage: 208-230/1/60
