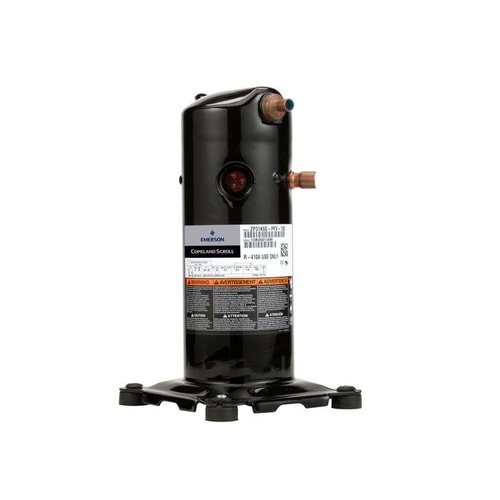

Tempstar ZP29K5E-PFV-830 Copeland Scroll Compressor R-410A Single-Phase 1-5 HP 29000 BTU

Product Description

The Tempstar ZP29K5E-PFV-830 is a Copeland Scroll compressor designed for HVAC applications. This compressor operates with R-410A refrigerant and is suitable for single-phase use. It delivers a power output of up to 29000 BTUs, making it effective for various heating and cooling tasks.

• Capacity of 29000 BTU
• Voltage rating of 208-230 Volts
• Single-phase motor for reliable performance

Product Highlights

This compressor features a robust construction with internal protection mechanisms. Its compact design allows for easy installation in tight spaces.

Product Information

Standard Information

• Brand: Tempstar
• MPN: ZP29K5E-PFV-830

Technical Specifications

• Capacity Btuh: 29000
• Voltage: 208-230/1/60
• RLA: 15.7
• MCC (Amps): 22.0
• Discharge Connection: 1/2 Stub
• Suction Connection: 3/4 Stub
• Dimensions (L x H x W): 9.56 x 15.27 x 9.56 inches
• Initial Oil Charge: 25 ounces
• Internal Free Volume: 124.5 cubic inches
• Max Operating Current: 16.2 Amps
