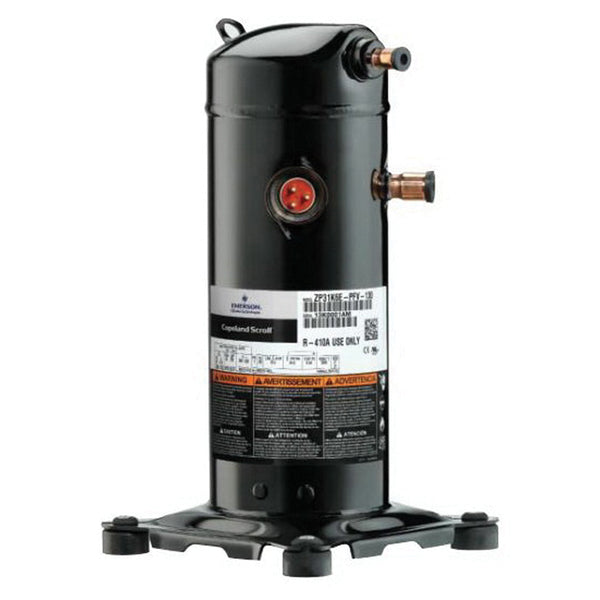

TEMPSTAR ZP24K5E-PFV-830 ZP Series Scroll Compressor, R410A 25,000 BTUH 208 to 230 Volts BOM-830

Product Description

The TEMPSTAR ZP24K5E-PFV-830 is a ZP Series scroll compressor designed for R410A applications. It offers a capacity of twenty-five thousand BTUH and operates on two hundred eight to two hundred thirty volts. This product is suitable for various HVAC applications, providing reliable cooling performance.

• Capacity of 25,000 BTUH
• Voltage range of 208 to 230 volts
• Designed for R410A refrigerant

Product Highlights

The TEMPSTAR ZP Series compressor is efficient for cooling needs and works well in residential or commercial settings.

Product Information

Standard Information

• Brand: TEMPSTAR
• Part Number: 050617

Technical Specifications

• Capacity BTUH: 25,000
• RLA: 15.7
• MCC (Amps): 22.0
• Discharge Connection: 1/2 Stub
• Suction Connection: 3/4 Stub
• Dimensions: 9.56 x 15.27 x 9.56 inches
• Initial Oil Charge: 25 oz
• Internal Free Volume: 124.5 in³
• LRA-High: 73.0
• Max Operating Current: 13.8
• Motor Protection: Internal Inherent Protection
• Motor Type: Single-Phase
• Oil Recharge: 21 oz
• Oil Type: Polyol Ester Oil
• Refrigerant: R410A
• Voltage: 208-230/1/60
