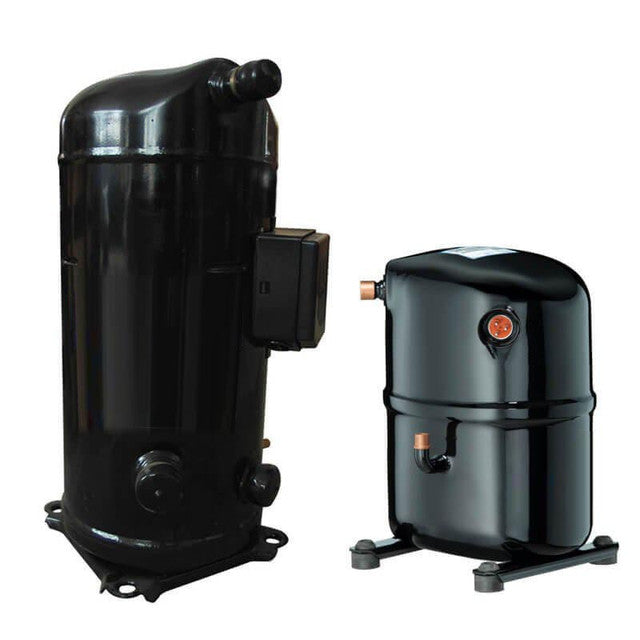

Tempstar ZP20K5E-PFV-830 ZP Series Scroll Compressor, 20,000 BTUH, R410A

Product Description

The Tempstar ZP20K5E-PFV-830 is a scroll compressor designed for use with R410A refrigerant. It provides a cooling capacity of twenty thousand BTUs per hour and operates efficiently at a voltage of two hundred eight to two hundred thirty volts. This compressor is suitable for residential and commercial HVAC applications.

• Efficient operation with R410A refrigerant
• Rated capacity of twenty thousand BTUs
• Includes internal motor protection

Product Highlights

This single-stage scroll compressor is designed to deliver reliable cooling performance and is ideal for various HVAC systems.

Product Information

Standard Information

• Manufacturer: Tempstar
• Part Number: 050633

Technical Specifications

• Capacity (BTUH): 20,000
• Voltage: 208-230/1/60
• RLA: 15
• MCC (Amps): 21.0
• Discharge Connection: 1/2 Stub
• Suction Connection: 3/4 Stub
• Dimensions (L x H x W): 9.56 x 15.27 x 9.56 inches
• Initial Oil Charge: 25 oz
• Internal Free Volume: 129.6 in³
• Max Operating Current: 11.5
• Motor Type: Single-Phase
• Oil Type: Polyol Ester Oil
• Refrigerant: R410A
• Model Variation: 5
