Tempo Communications PM-100 Multimeter Pocket PM100

Product Description

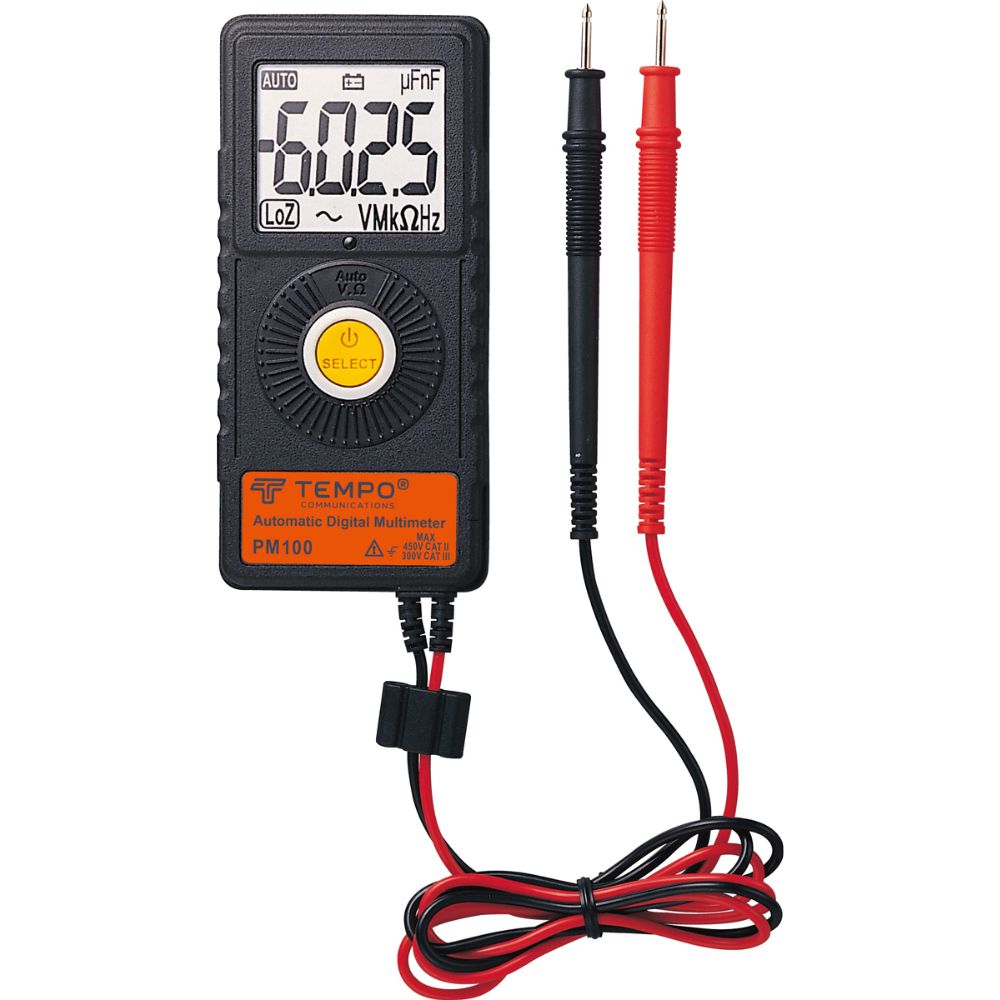

The TEMPO COMMUNICATIONS PM-100 pocket multimeter is an automatic, pocket-sized digital multimeter (DMM) with a 4.0 digit LCD display. It checks for voltage and displays that if present, if not then it will attempt to measure resistance. It is a go-to-tool for quickly checking electrical supplies and basic continuity.

• Auto/Manual Ranging
• Average Response
• Auto Off

Product Highlights

The PM-100 measures voltage, resistance, capacitance, temperature and frequency. It also tests continuity and dB. Includes case and test leads.

Product Information

Standard Information

• Brand: TEMPO COMMUNICATIONS
• Manufacturer Part Number: PM-100

Technical Specifications

• Category: Test and Measurement
• Test Equipment: Multimeters
• Manufacturer: Tempo Communications
• Part Status: Active
• Style: Pocket
• Type: Digital (DMM)
• Display Digits: 4.0
• Display Type: LCD
• Display Count: 6000
• Function: Voltage, Resistance, Capacitance, Temperature, Frequency
• Functions, Extra: Continuity, dB
• Features: Auto Off
• Ranging: Auto/Manual
• Response: Average
• Ratings: CAT II 450V, CAT III 300V
• Includes: Case, Test Leads
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
• Polarity: Automatic
• Display Update Rate: 5 per second
• Temperature Coefficient: Nominal 0.15 x (specified accuracy) per 0C Below 18 0C or Above 28 0C
• Intelligent Automatic Power Off: After 3 Minutes of Inactivity (approximately)
• Noise Rejection: Common Mode Rejection Ratio
• Relative Humidity (non-condensing): 80% Maximum for Temperatures up to 31 0C (88 0F), Decreasing Linearly to 50% Maximum at 40 0C (104 0F)
• Altitude: 2000 m (6500 ) Maximum
• Pollution Degree: 2
• Storage Conditions: 20 0C to 60 0C ( 4 0F to 140 0F), 0% to 80% Relative Humidity (non-condensing)
• Battery: 3V Standard Button Battery (IEC-CR2032; ANSI-NEDA-54004LC)
• Low Battery: Below 2.4 VDC
• Overvoltage Protection: 450 VDC/VAC RMS, 50/60 Hz
• Measurement Categories: Cat II, 450 V - Cat III, 300 V
