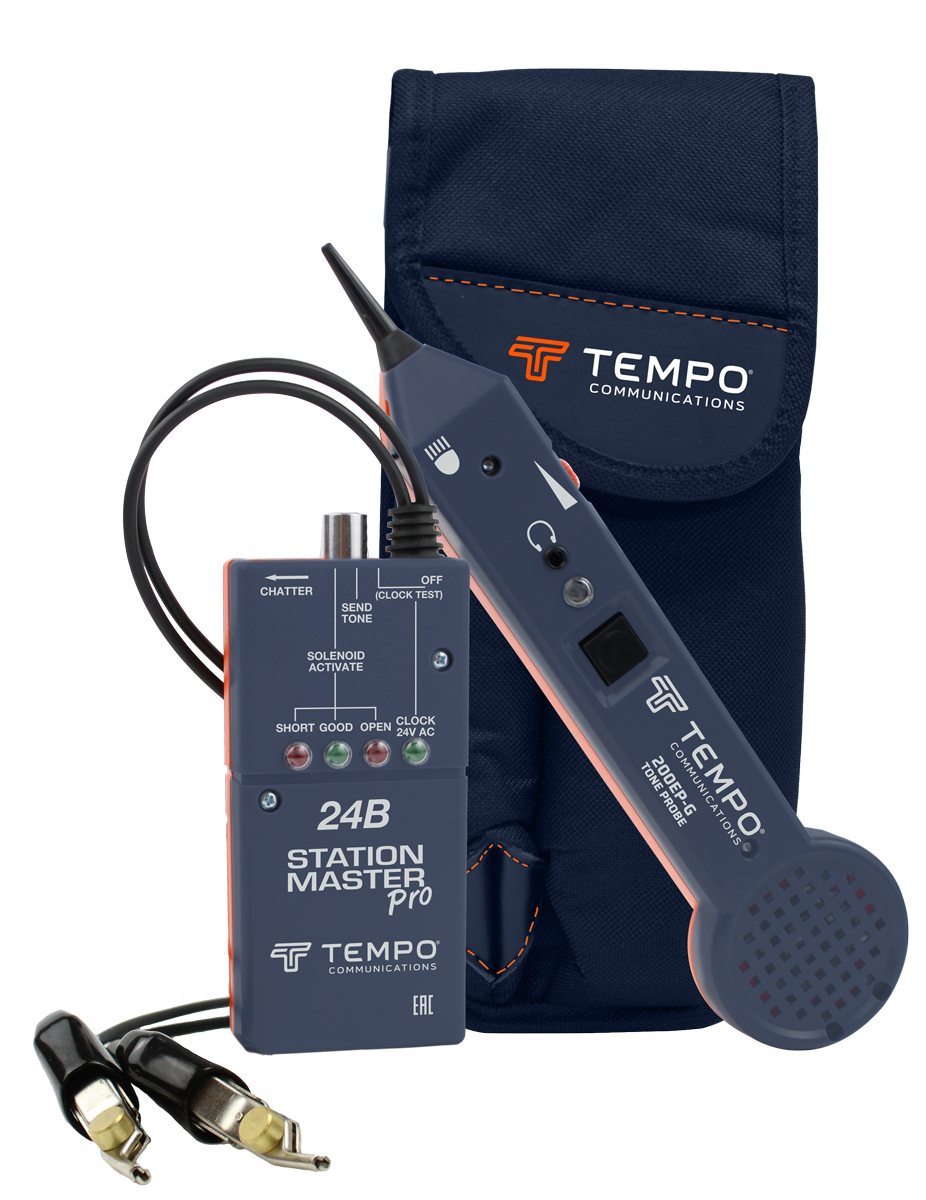

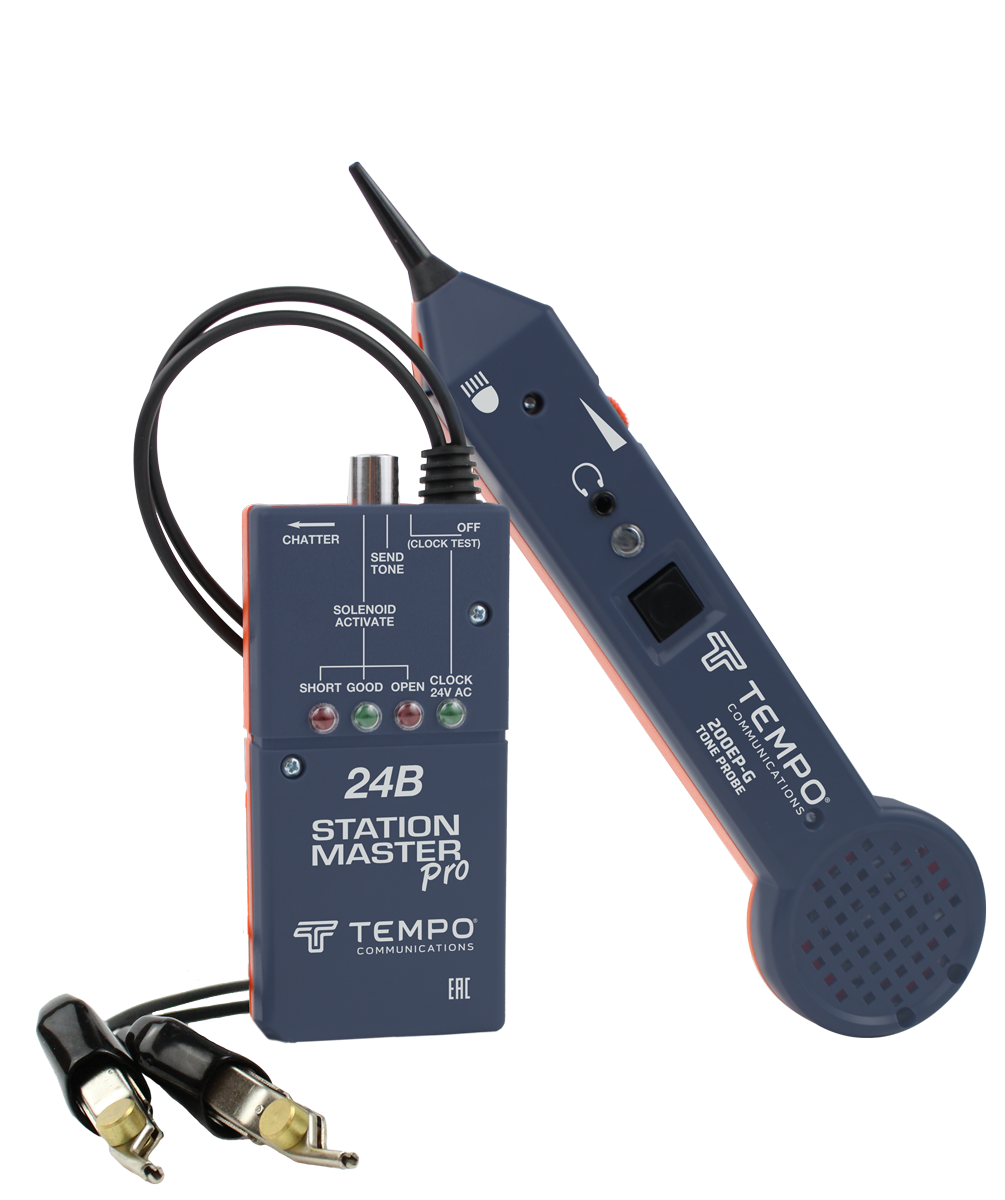

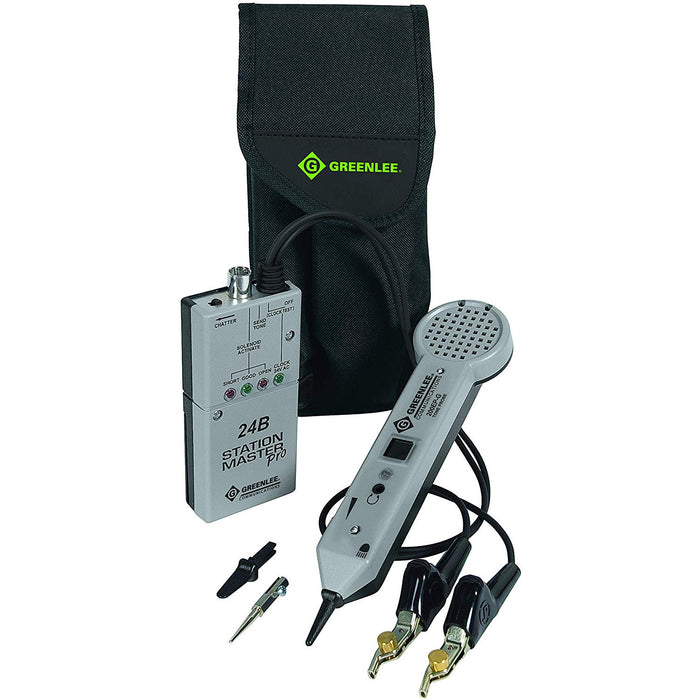

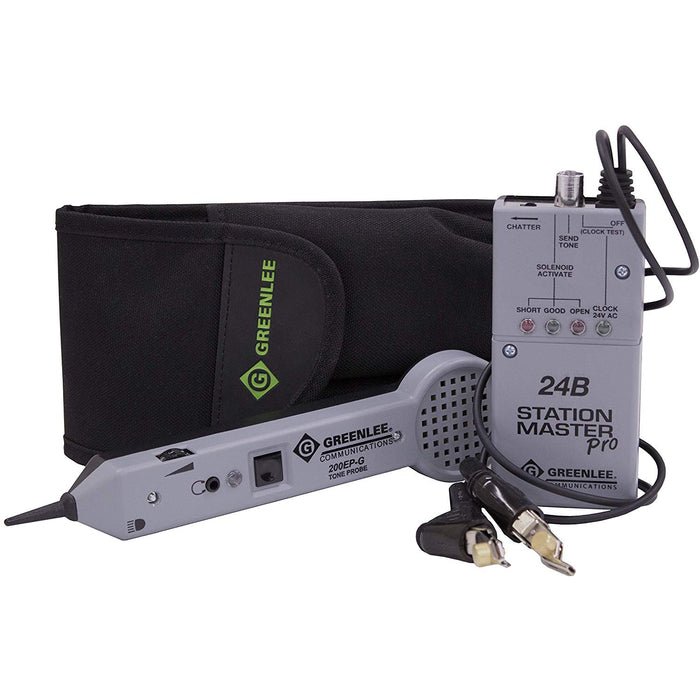

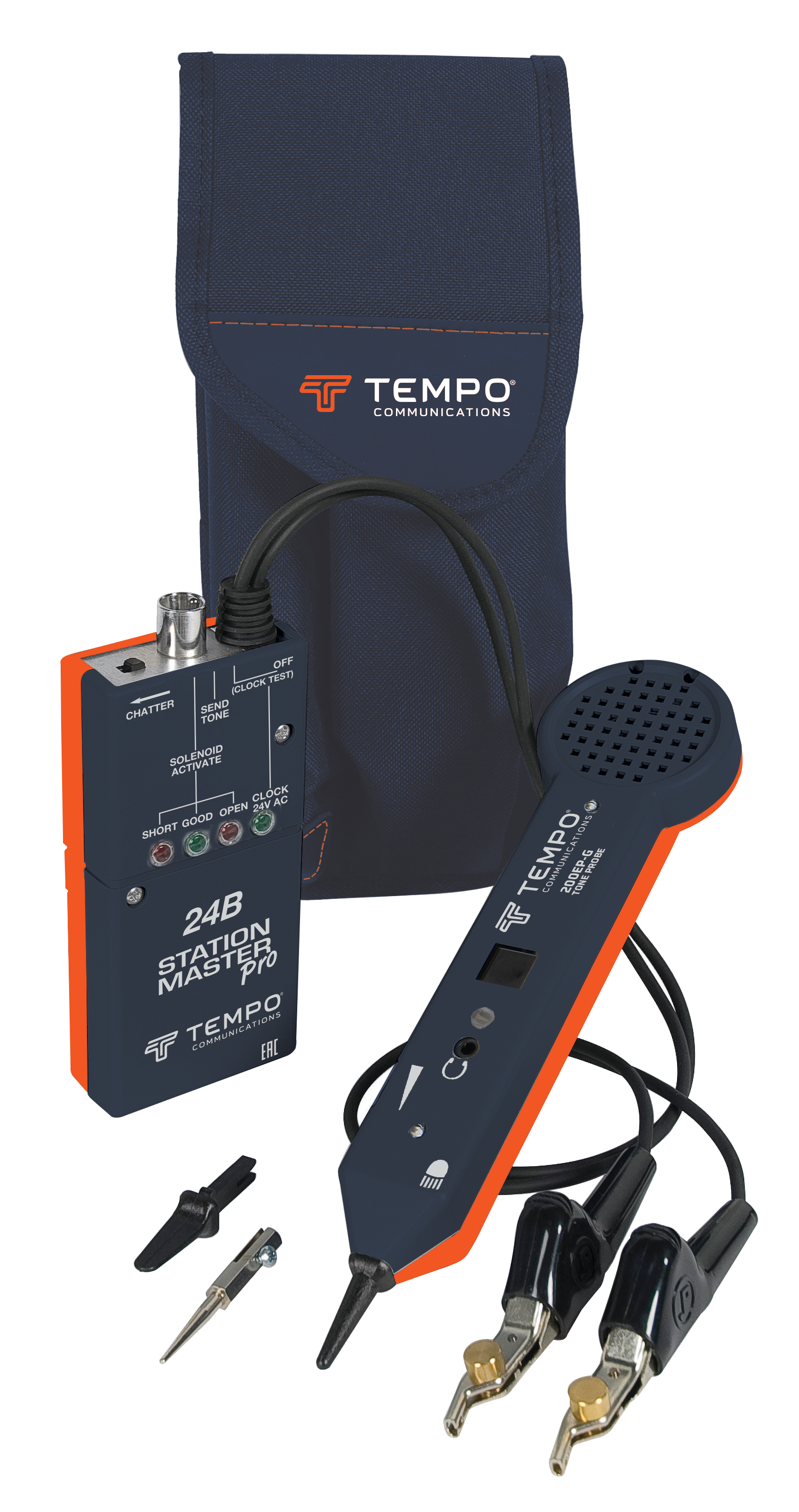

Tempo Communications 24BK Irrigation Tester Kit

Product Description

The TEMPO COMMUNICATIONS 24BK Station Master Pro is a portable, battery-operated irrigation system tester that combines solenoid activation and wire identification for easy diagnosis of faults. Easy-to-understand LEDs notify the technician if sufficient voltage is being supplied and the condition of the solenoid. It also provides tone generation to identify wires.

• Valve solenoid testing independent of the controller.
• No wire stripping required.
• Durable construction for outdoor use.

Product Highlights

The 24BK features solenoid activation mode, chatter mode, and continuity testing. It includes a carrying case, bed-of-nails clip, and piercing pin bent nose clip for use on insulated wires.

Product Information

Standard Information

• Brand: TEMPO COMMUNICATIONS
• Manufacturer Part Number: 24BK
• Country of Origin: USA

Technical Specifications

• Battery: 9 V Alkaline
• Battery Life: 3 HR Continuous
• Includes: 700C Carrying Case
• Maximum Distance Range To Activate One Solenoid 12 AWG Loop: 3000.000 - 13000.000 FT
• Maximum Distance Range To Activate One Solenoid 14 AWG Loop: 2000.000 - 8500.000 FT
• Maximum Distance Range To Activate One Solenoid 18 AWG Loop: 500.000 - 3000.000 FT
• Minimum Voltage For Clock LED: 15 VAC
• Solenoid Circuit Recharge: 2.5 S
• StorageOperatingTemperature: 32 - 122 DEG F
• Sub Brand: Station Master
• Type: Pro
• Voltage Rating: 28 VAC
• Brand: TEMPO COMMUNICATIONS
• Manufacturer Part Number: 24BK
• Model: Base Model
