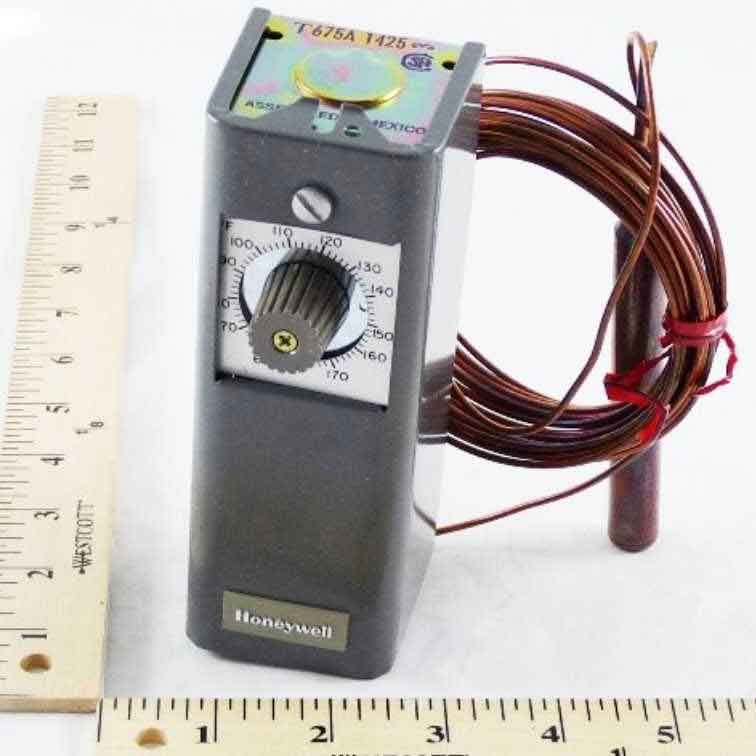

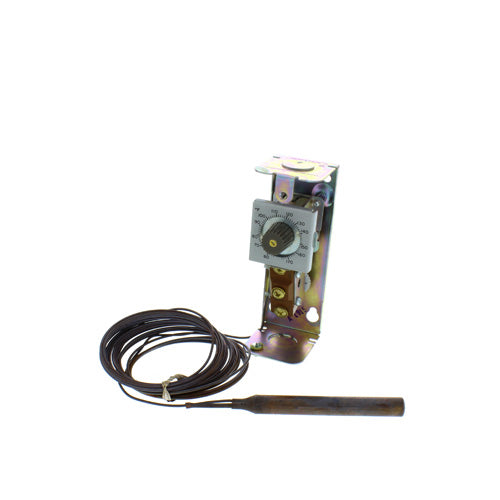

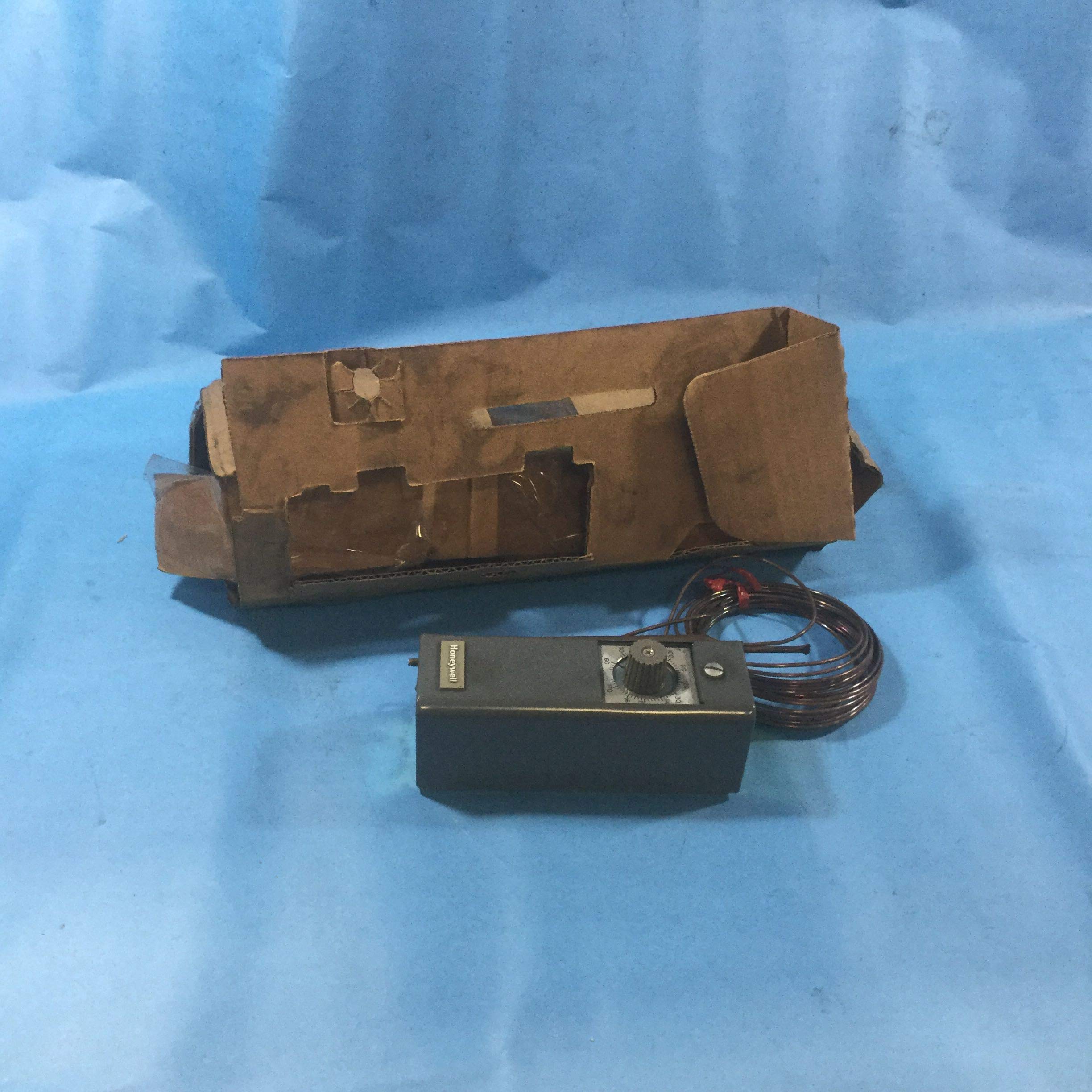

Honeywell T675A1425 Remote Bulb Controller 55-175F 20 ft Capillary SPDT

Product Description

The Honeywell T675A1425 is a remote bulb temperature controller designed for regulating the temperature of air or liquids in ducts, pipes, tanks, and boilers. This versatile device offers precise temperature control with a range from 55 degrees Fahrenheit to 175 degrees Fahrenheit. The controller includes a 20-foot capillary and a copper bulb sensor element. It is equipped with a Single Pole Double Throw (SPDT) output, making it suitable for various industrial and commercial applications.

• Wide temperature range of 55 to 175 degrees Fahrenheit
• SPDT output configuration
• Includes 20-foot capillary and copper bulb

Product Highlights

This Honeywell remote bulb controller ensures reliable and accurate temperature regulation. It has a durable epoxy-coated aluminum housing and an easily adjustable set point. The SPDT configuration enhances its applicability in HVAC systems, refrigeration units, and process control systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T675A1425

Technical Specifications

• Temperature Range: 55 to 175 degrees Fahrenheit
• Capillary Length: 20 feet
• Sensor Element: Copper bulb
• Output: SPDT
• Housing Material: Epoxy-coated aluminum
• Voltage: 120V, 240V, 277V
• Frequency: 50, 60 Hz
• Dimensions: 5-5/8 inches high x 2 inches wide x 2-5/8 inches deep
• Weight: 1.53 lbs
• Max Operating Temperature: 200 degrees Fahrenheit
• Differential Temperature: 3.6 to 12 degrees Fahrenheit
