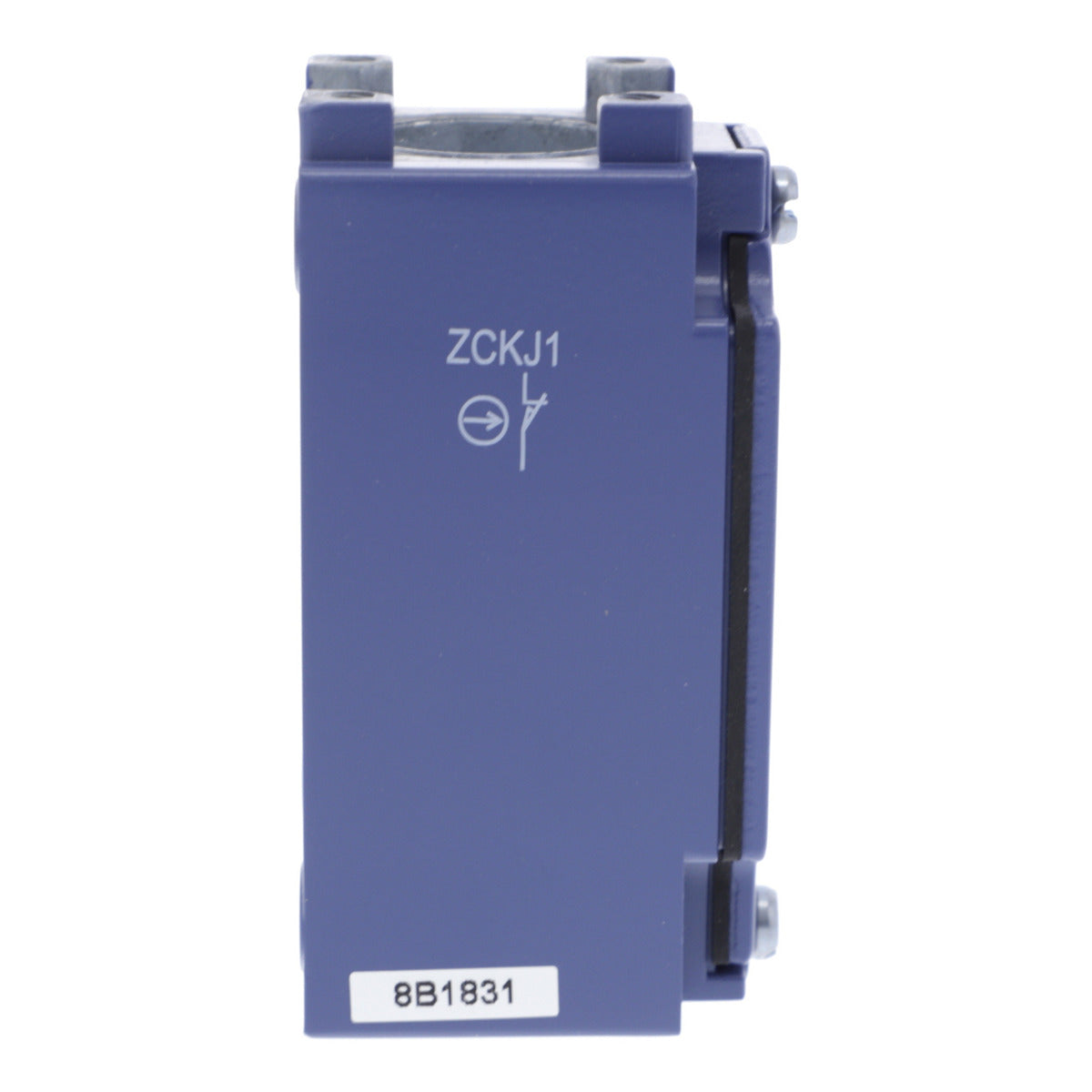

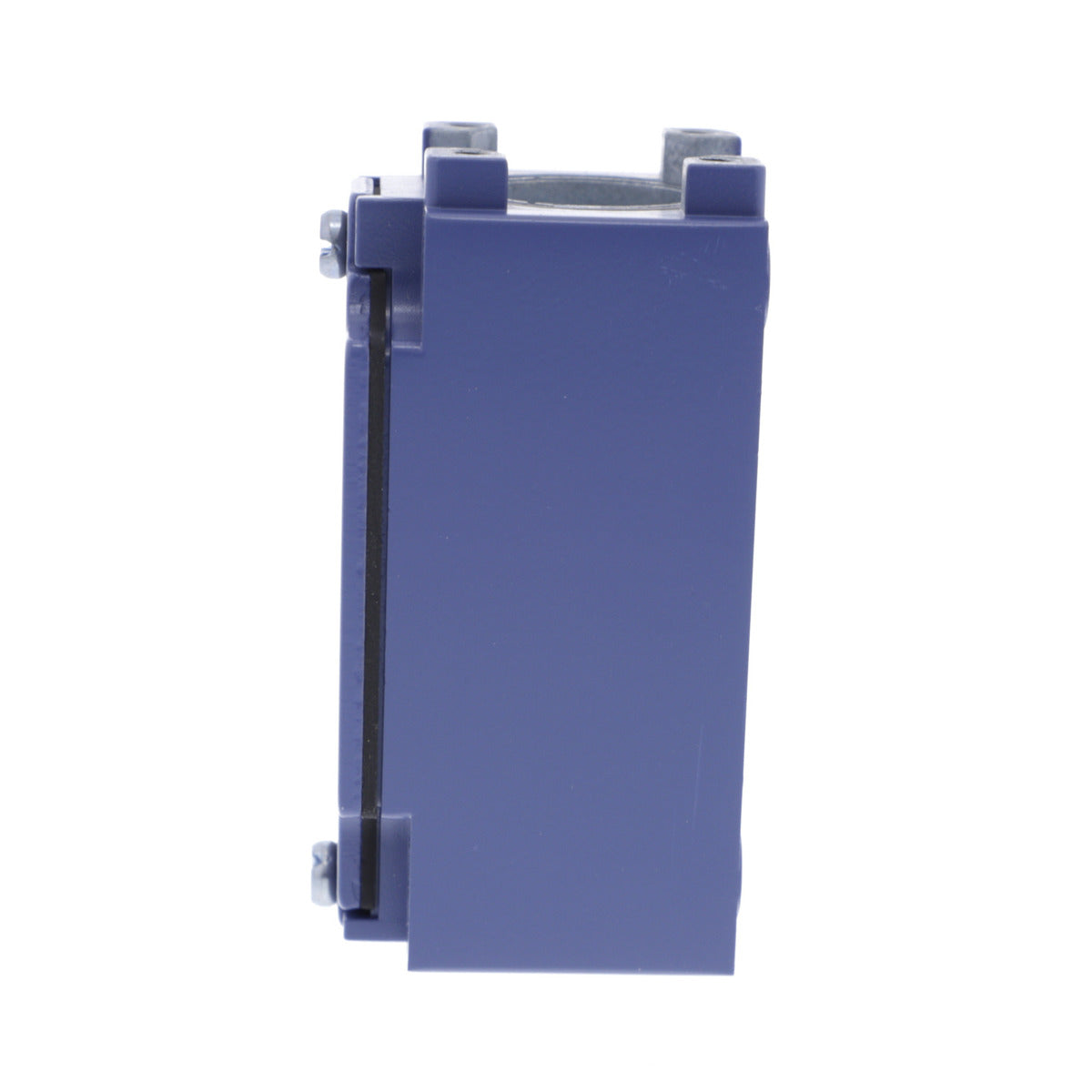

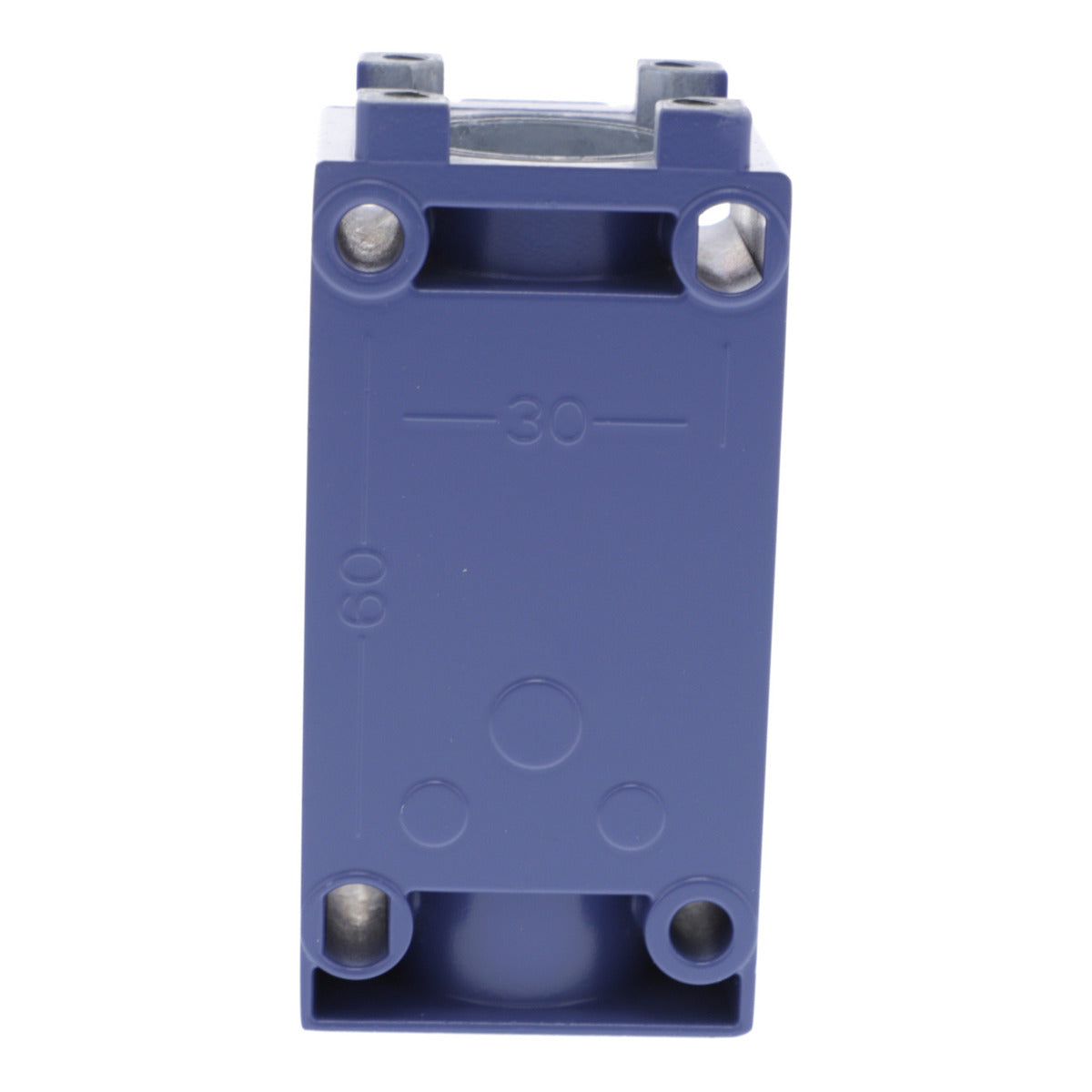

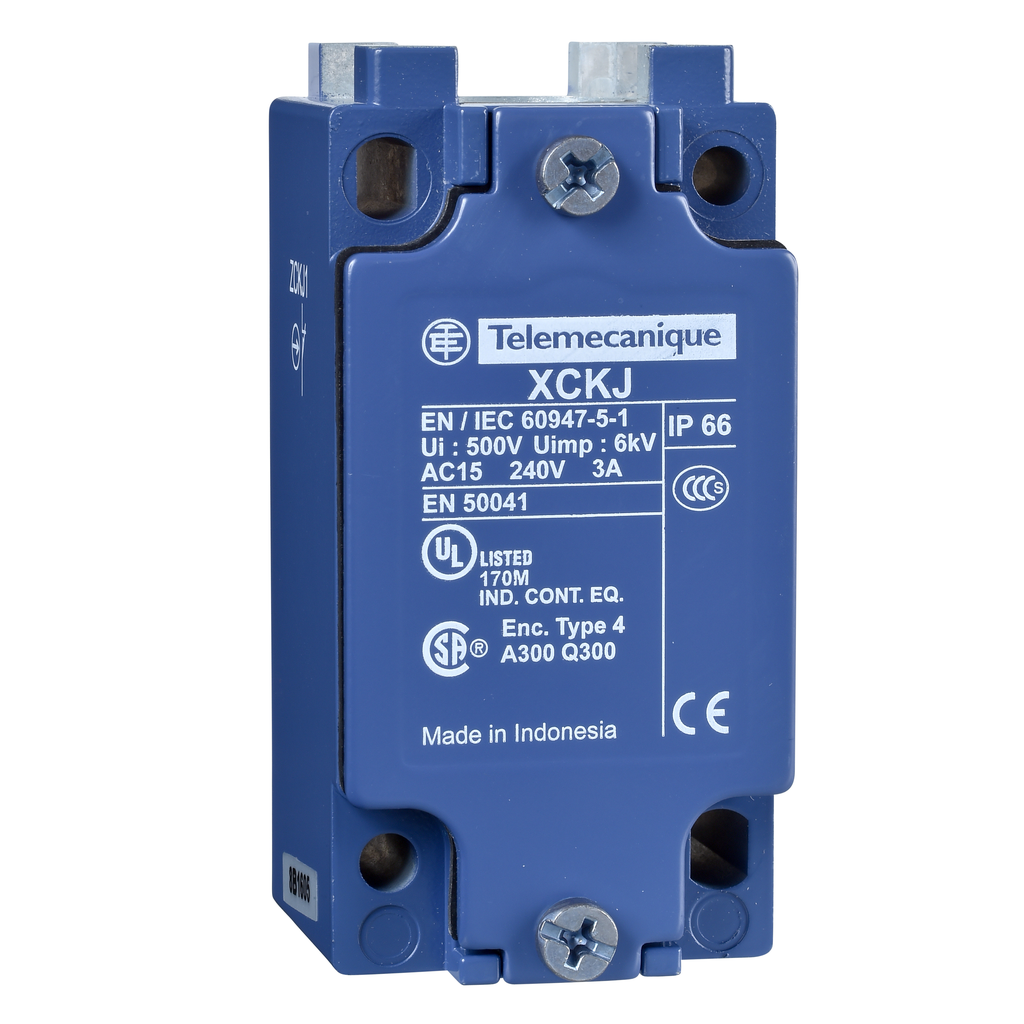

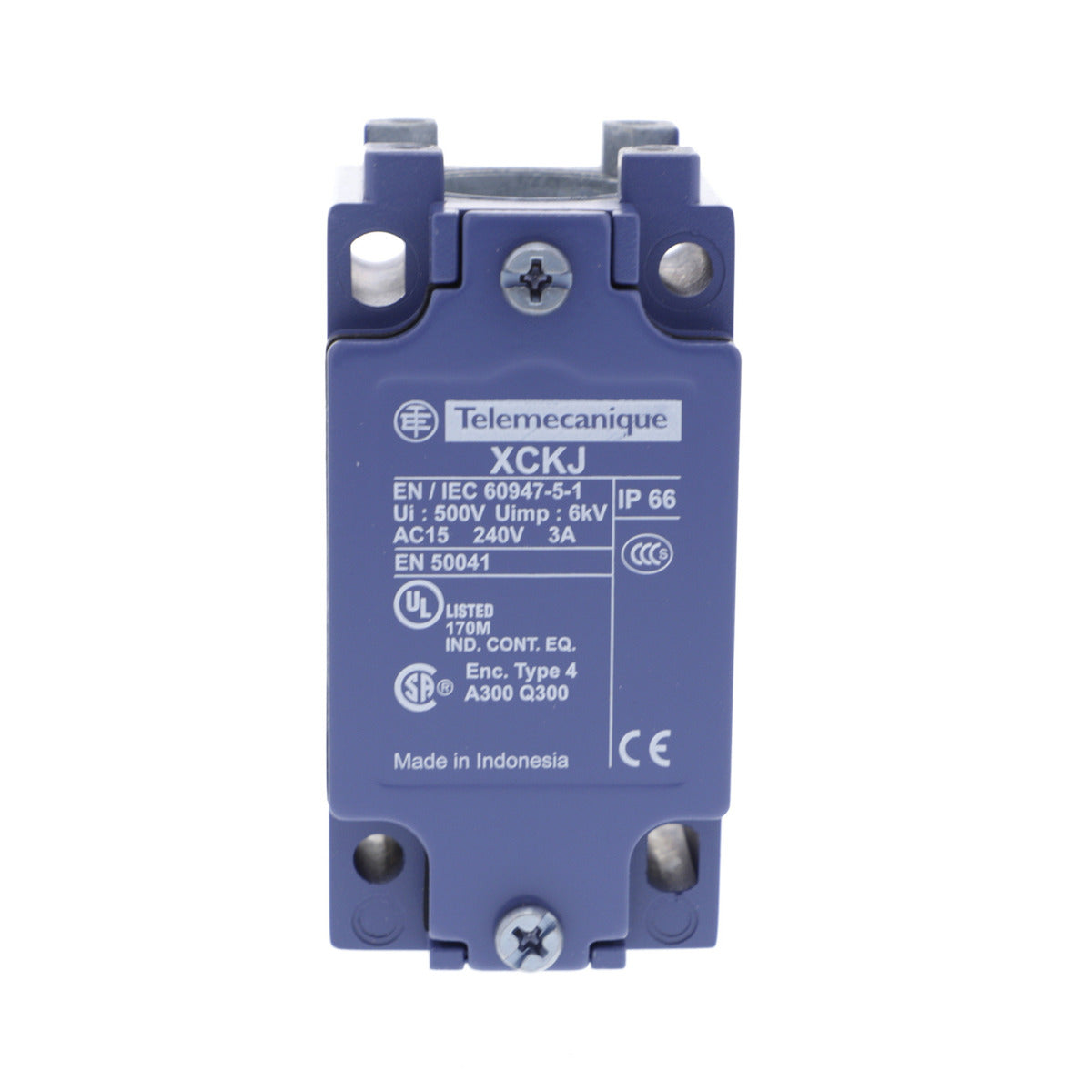

Telemecanique ZCKJ1H7 Limit Switch Body 2-Pole 1NO 1NC Replacement MPN

Product Description

This Telemecanique ZCKJ1H7 Limit Switch Body includes a fixed body and Zamak body. It features 1 normally open and 1 normally closed snap action contact. With a half-inch NPT cable entry, it is compatible with actuator heads and levers from the XCKD, XCKP, and XCKT ranges.

• Fixed body construction
• 1 x NO + 1 x NC snap action contacts
• Half-inch NPT cable entry for easy installation

Product Highlights

Designed for reliability in various applications, this limit switch body operates effectively in high temperatures and can endure up to five million cycles.

Product Information

Standard Information

• Brand: Telemecanique
• Sub Brand: ZCKJ

Technical Specifications

• Catalog Number: ZCKJ1H7
• Type: Limit Switch Body
• Body Type: Fixed
• Action: Snap Action
• Contact Configuration: 1 NC + 1 NO
• Number of Poles: 2 Pole
• Operating Cycles: 5,000,000 cycles
• Voltage Rating: 3 A 240 V, AC-15
• Amperage Rating: 10 Amp
• Environmental Conditions: High Temperature
• Operating Temperature: 10-120 A Degrees C
• Enclosure: IP66
• Country of Origin: Switzerland
• Warranty Length: 18 months
