Telemecanique XZCPV1141L10 Pre wired conn 250V AC - 10 m

Product Description

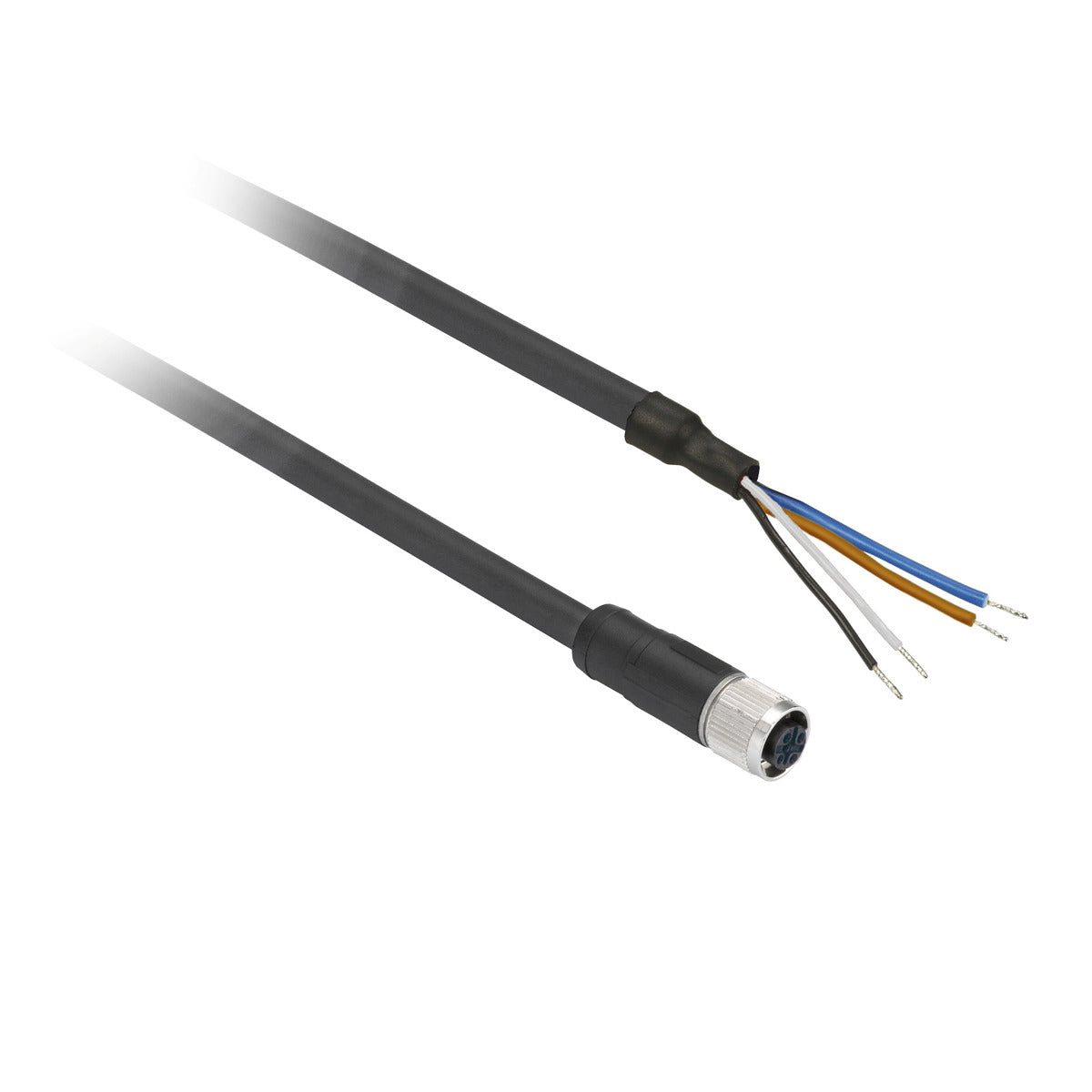

This product is part of the XZ range, offering cordsets and connectors. The cable features four wires and a five-pin M12 straight female connector with a metal collar. It is constructed from polyvinyl chloride, making it suitable for general use. Rated operational voltage is 250 volts AC or 300 volts DC with a nominal current of 3 amps.

• Dustproof and resistant to water jets (IP65)
• Temporarily immersible in water (IP67)
• Length of ten meters with a diameter of 4.6 mm

Product Highlights

Designed for machines with low environmental and mechanical stresses. This cable is rated for operating temperatures between -25 degrees Celsius to +80 degrees Celsius when static. It meets cULus certification standards.

Product Information

Standard Information

• Catalog Number: XZCPV1141L10
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Voltage Rating: 250 V AC - 300 V DC
• Amperage Rating: 3 A
• Enclosure: IP65 - IP67
• Net Weight: 0.45 kg
• Cable Length: 10 m
• Connection Type: Straight female connector M12, 4 pins
• Operating Temperature: -25 - 80 degrees Celsius Static
• Country of Origin: Indonesia
