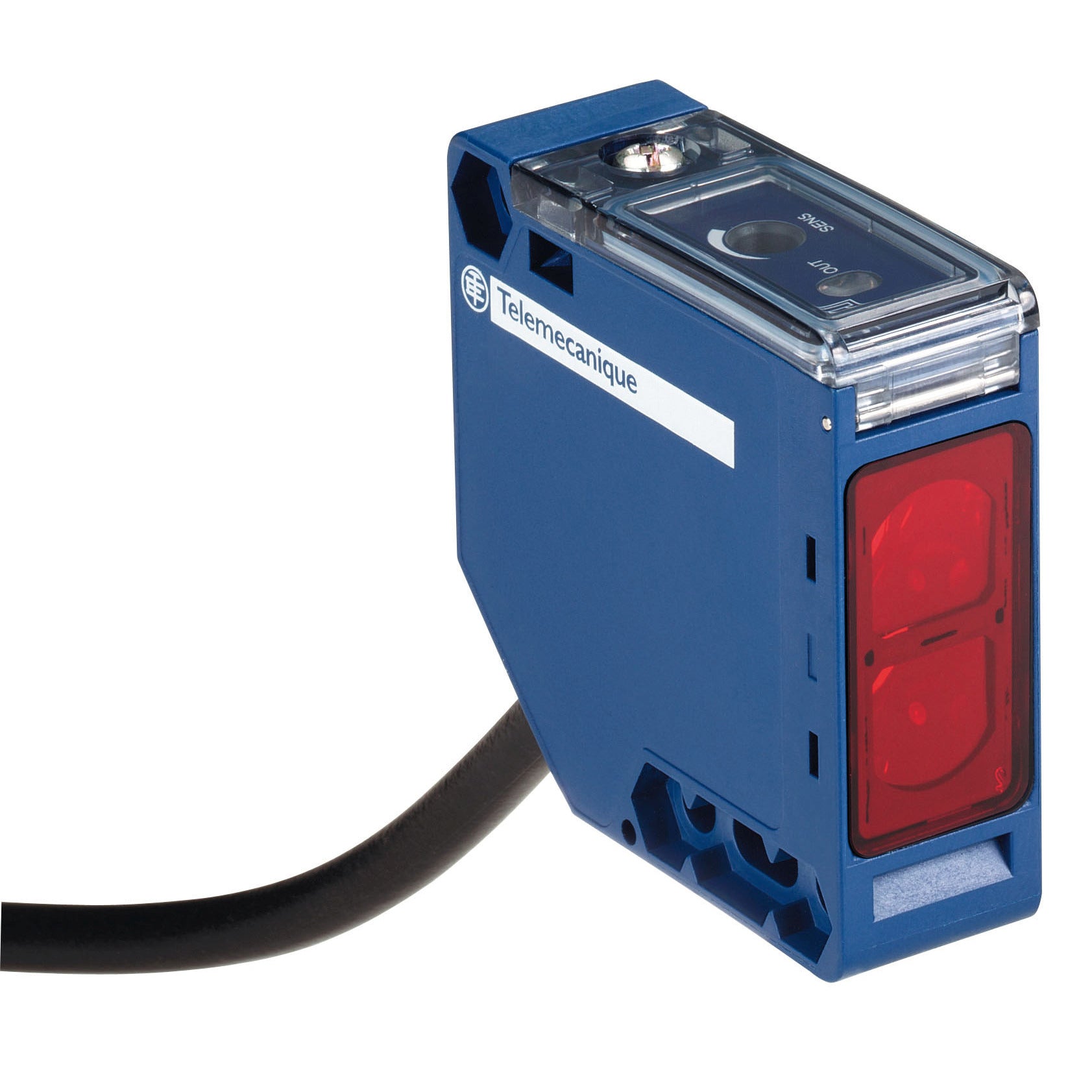

Telemecanique XUK5ARCNL2 240 VAC 100 mA NO/NC 5-Wire Photoelectric Sensor

Product Description

This Telemecanique XUK5ARCNL2 photoelectric sensor operates with a voltage range of twenty-four to two hundred forty volts AC/DC. It features a durable PBT case which resists harsh environmental conditions. Its compact design with a single mode (polarised reflex system) enhances its functionality. This sensor is easy to install with three fixing points for surface or bracket mounting.

• Suitable for temperature ranges from -25 degrees C to 55 degrees C.
• IP65 rated, providing protection against dust and water.
• CSA and UL certified for safety compliance.

Product Highlights

The XUK5ARCNL2 product is designed to work in various demanding applications, ensuring reliability and efficiency in performance. The equipped LED display allows for easy identification of operational status.

Product Information

Standard Information

• Manufacturer: Telemecanique Sensors
• Brand: Telemecanique

Technical Specifications

• Catalog Number: XUK5ARCNL2
• Enclosure: IP65 double insulation conforming to IEC 60529, PBT
• Voltage Rating: 24...240 V AC/DC
• Weight: 0.08 lb
• Housing Material: PBT
• Output Type: 1 C/O, discrete relay
• Current: 35 mA
• Wattage: 2 W AC
• Sensing Range: 1-1 M diffuse, > 0.98...3.28 FT (> 0.3...1 M)
• Warranty Length: 18 months
