Telemecanique XT230A1PAL2 Telemecanique C Power Capacitive Proximity Sensor

Product Description

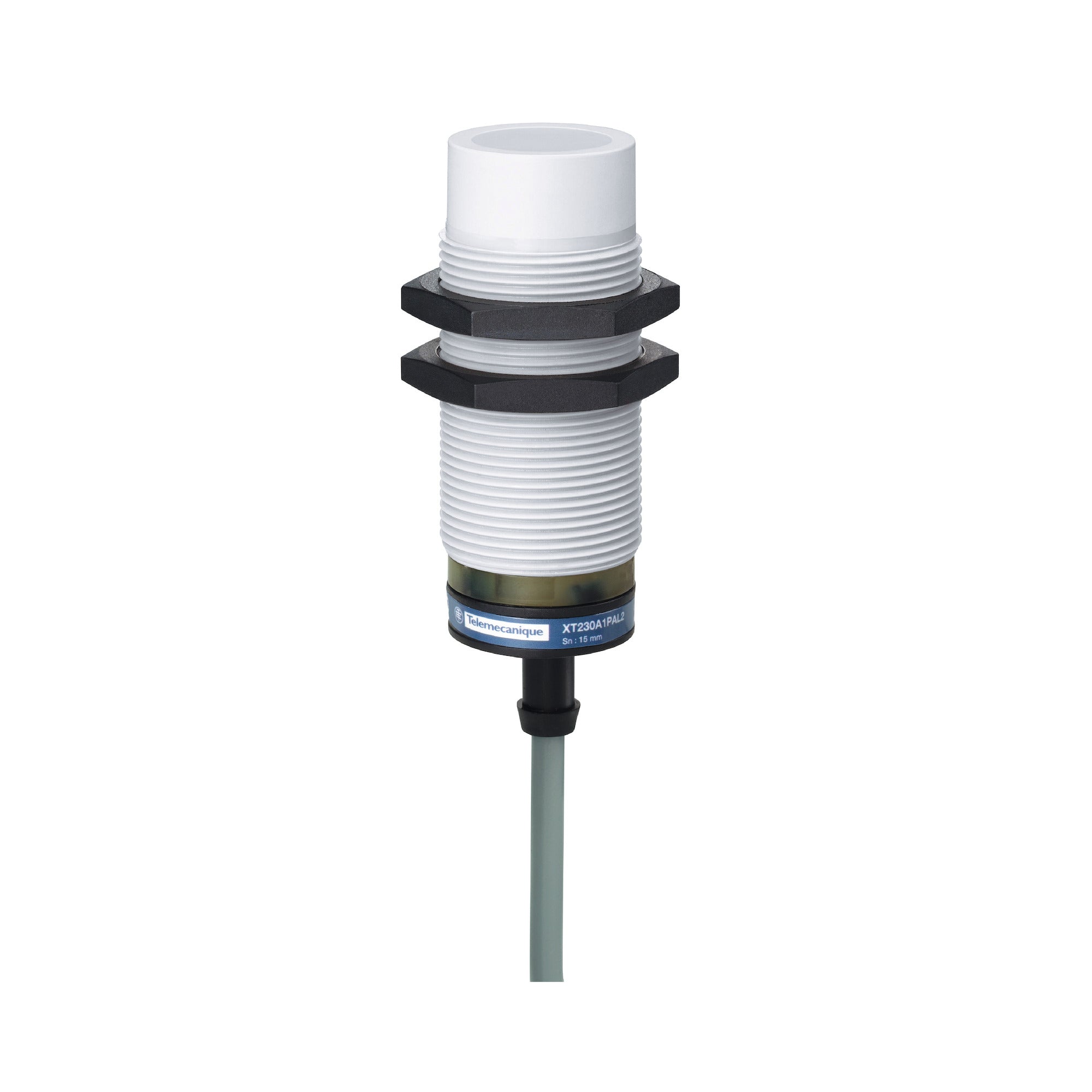

The Telemecanique XT230A1PAL2 is a capacitive proximity sensor designed for the detection of insulated and conductive materials. This sensor includes a cylindrical plastic case with a diameter of thirty millimeters and M30 x 1.5 threading, accompanied by a two-meter PVC cable. It operates without physical contact with the detected objects, providing high operating rates and durability due to its solid-state design.

• Non-flush mountable with a sensing distance of fifteen millimeters.
• Functions on a three-wire, 12V to 24V DC system with a normally open function and a PNP output.
• Indicates output state with a yellow LED light.

Product Highlights

This sensor is capable of detecting materials such as paper, cardboard, and glass. It is built to comply with CE and cETLus certifications and meets IEC 60947-5-2 and UL 61010-1 standards.

Product Information

Standard Information

• Catalog Number: XT230A1PAL2
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Length: 74.5 mm
• Weight: 0.60 lb
• Material: Plastic
• Sensing Range: 0.31 to 0.59 in (8 to 15 mm)
• Operating Temperature: -10 to 60 A Degrees C
• Country of Origin: Indonesia
• Warranty Length: 18 months
• Applications: Detection of insulated or conductive materials
