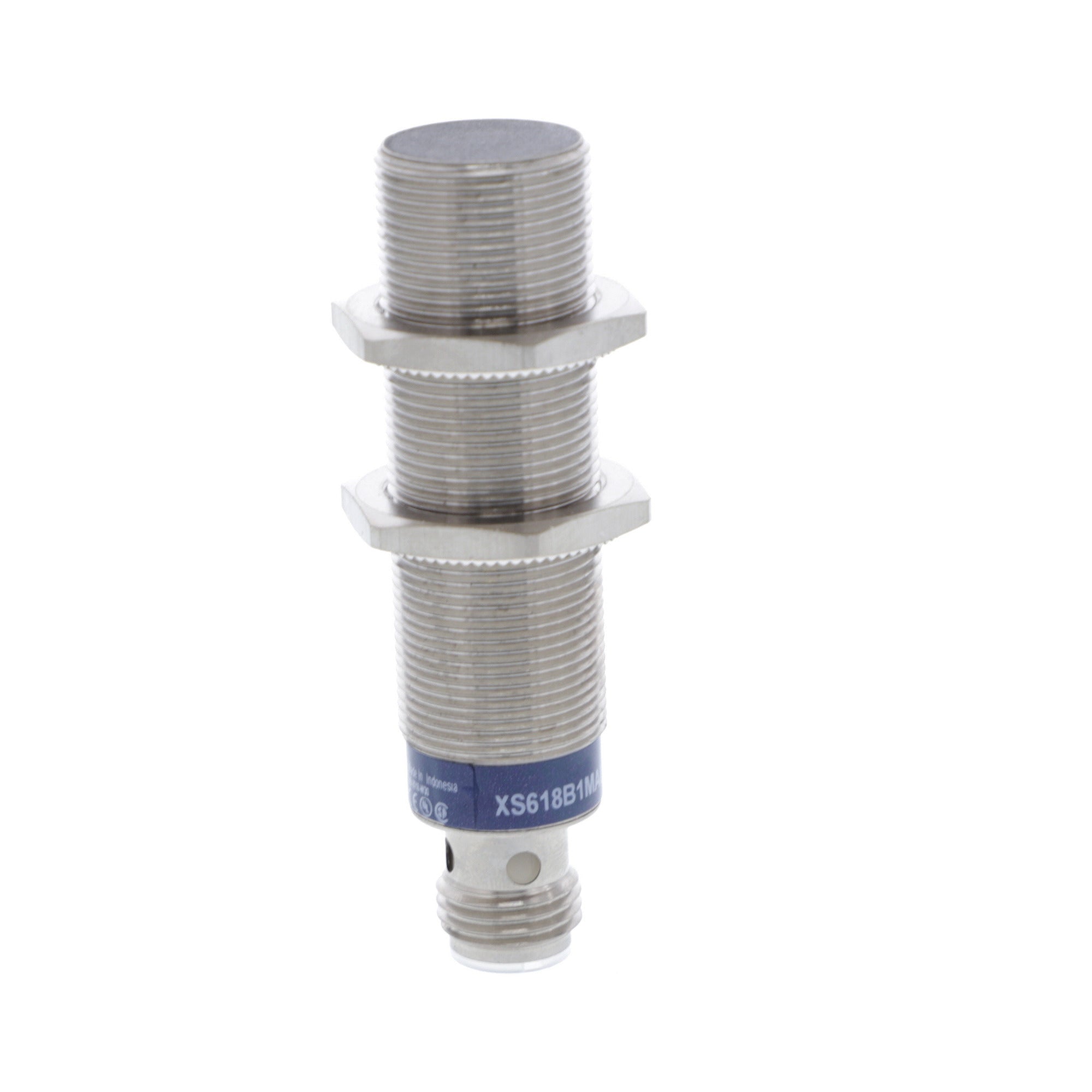

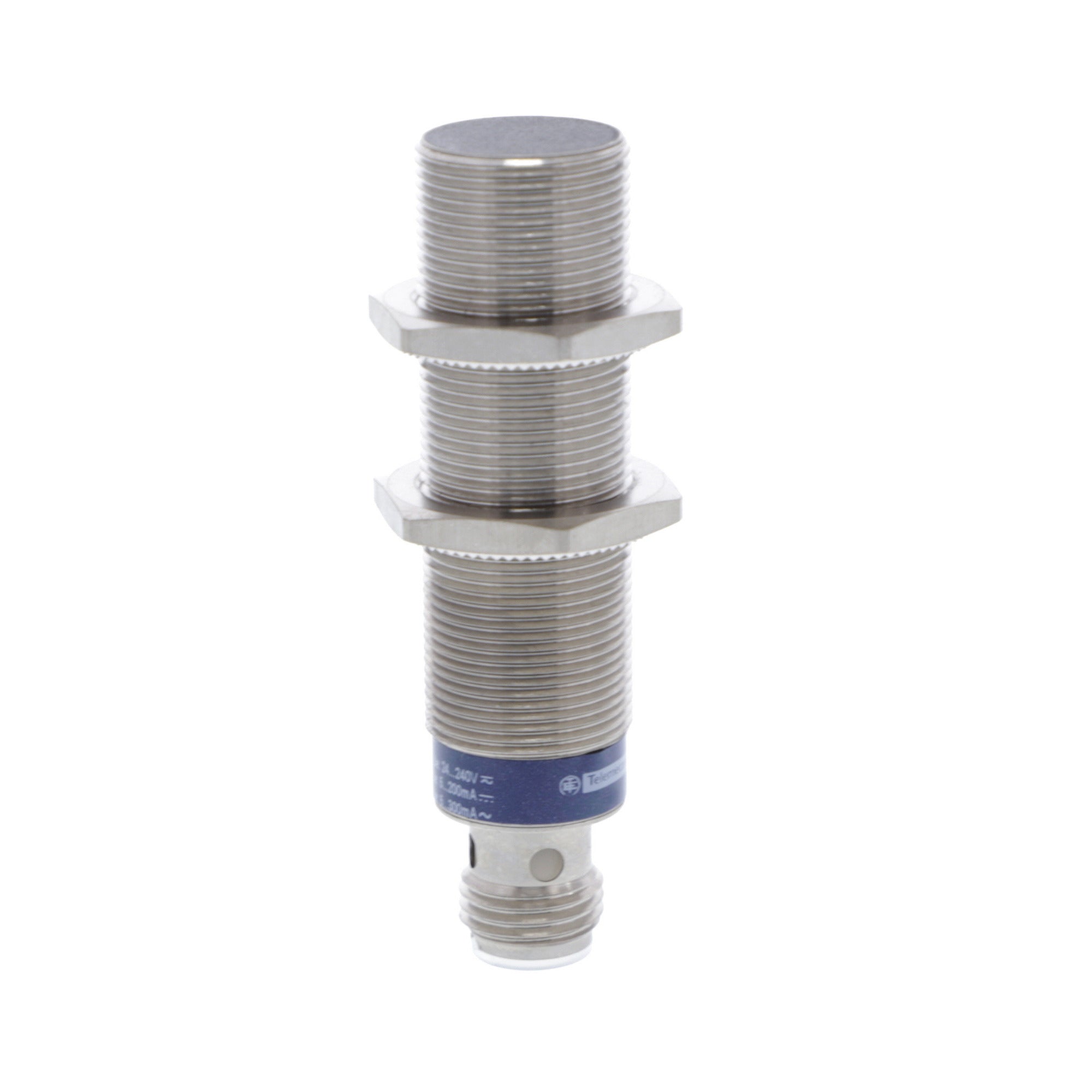

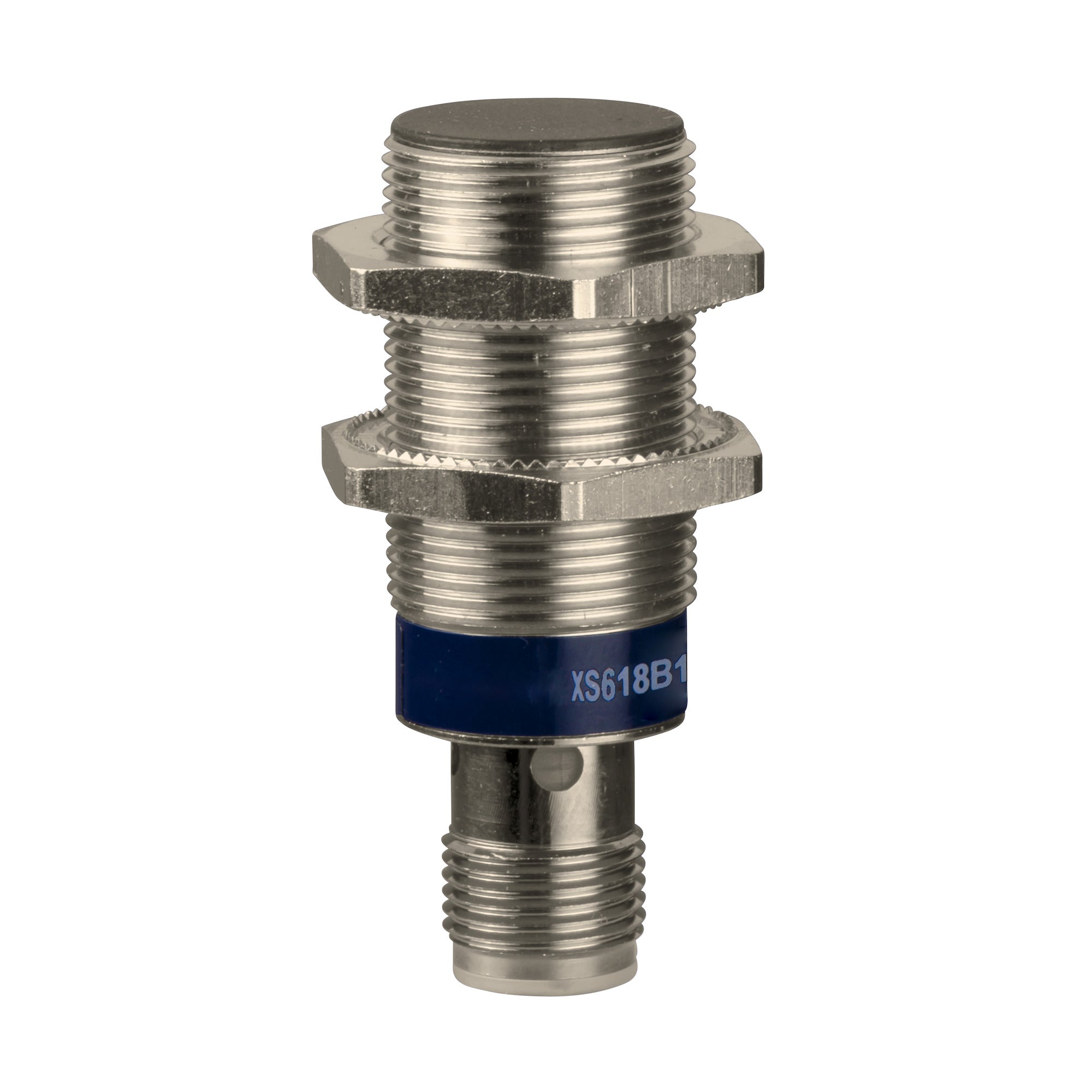

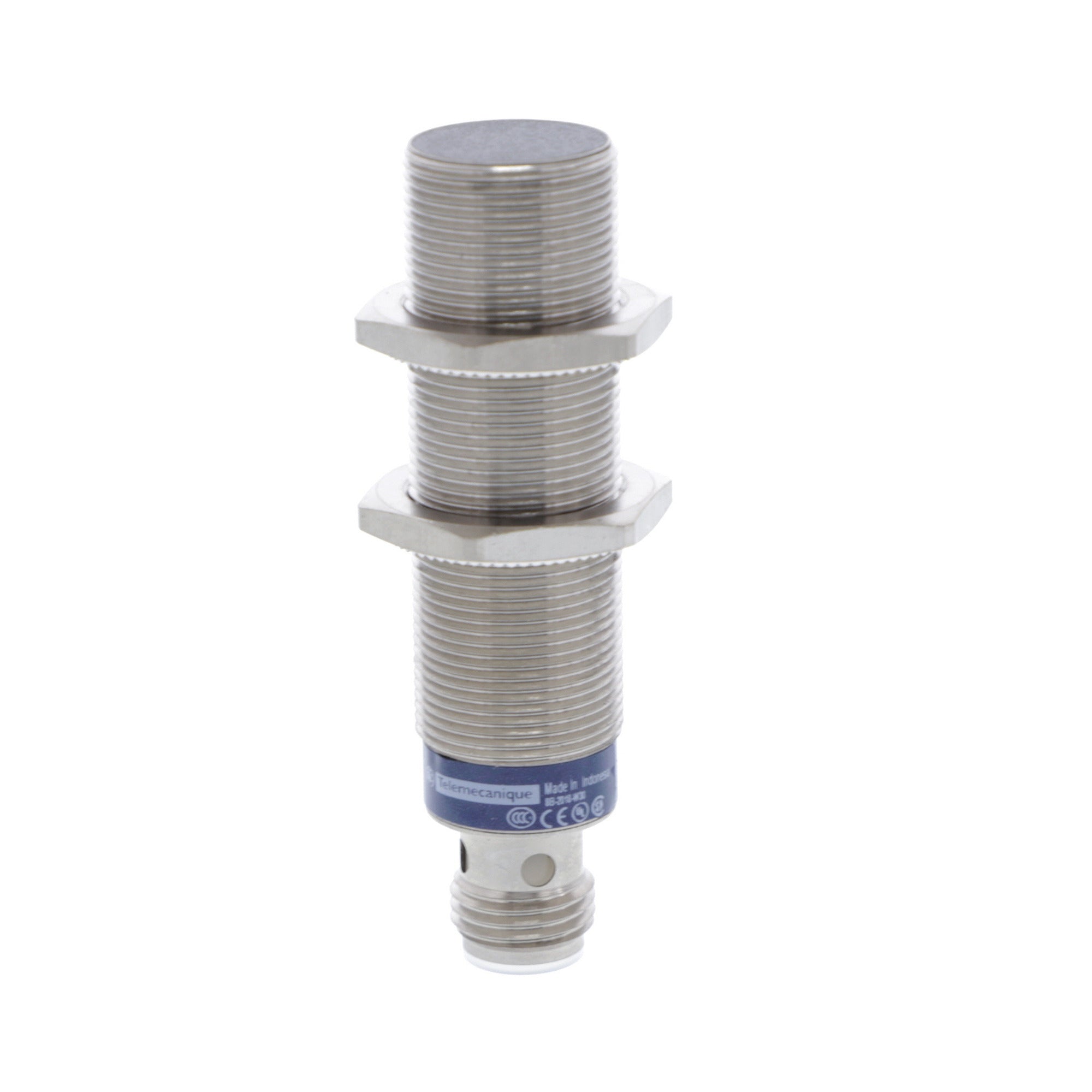

Telemecanique XS618B1MAU20 Square D 18 mm 240 VAC 300 mA NO 2-Wire Inductive Proximity Sensor

Product Description

The Telemecanique XS618B1MAU20 is an inductive proximity sensor designed for reliable detection in various applications. This cylindrical sensor features an M18 thread and operates with supply voltages from twenty-four to two hundred forty volts AC or DC. The device is suitable for flush mounting and offers an increased sensing range.

This sensor is built with a nickel-plated brass case, providing corrosion resistance and magnetic shielding for enhanced accuracy. Its design includes four LED indicators for easy status monitoring and troubleshooting, ensuring efficiency in operation. With an IP67 rating, this sensor is prepared for both indoor and outdoor use, performing well in temperatures ranging from minus twenty-five to seventy degrees Celsius.

• Operating voltage: 24 V to 240 V AC/DC
• Increased sensing range greater than 0.16 inches to 0.31 inches (> 4 mm to 8 mm)
• Robust nickel-plated brass construction for durability

Product Highlights

This sensor is certified by CSA and UL, assuring compliance and quality standards for safety.

Product Information

Standard Information

• Brand: Telemecanique
• MPN: XS618B1MAU20

Technical Specifications

• Catalog Number: XS618B1MAU20
• Manufacturer: Telemecanique Sensors
• Sub Brand: XS6
• Material: Metal
• Enclosure: Nickel Plated Brass
• Indicator: Output state 1 LED yellow
• Sensing Range: > 0.16...0.31 in (> 4...8 mm)
• Control Output: AC/DC 2-WIRE (UNIVERSAL) - 1 N.O.
• Operating Temperature: -25 to 70 degrees C
• Environmental Conditions: WATER TIGHT, DUST TIGHT, OIL TIGHT, CORROSION RESISTANT AND SUBMERSIBLE (INDOOR/OUTDOOR)
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: Mexico
