Telemecanique XCKP2145N12 Limit Switch 240 VAC 10 Amp 2-Pole Replacement MPN

Product Description

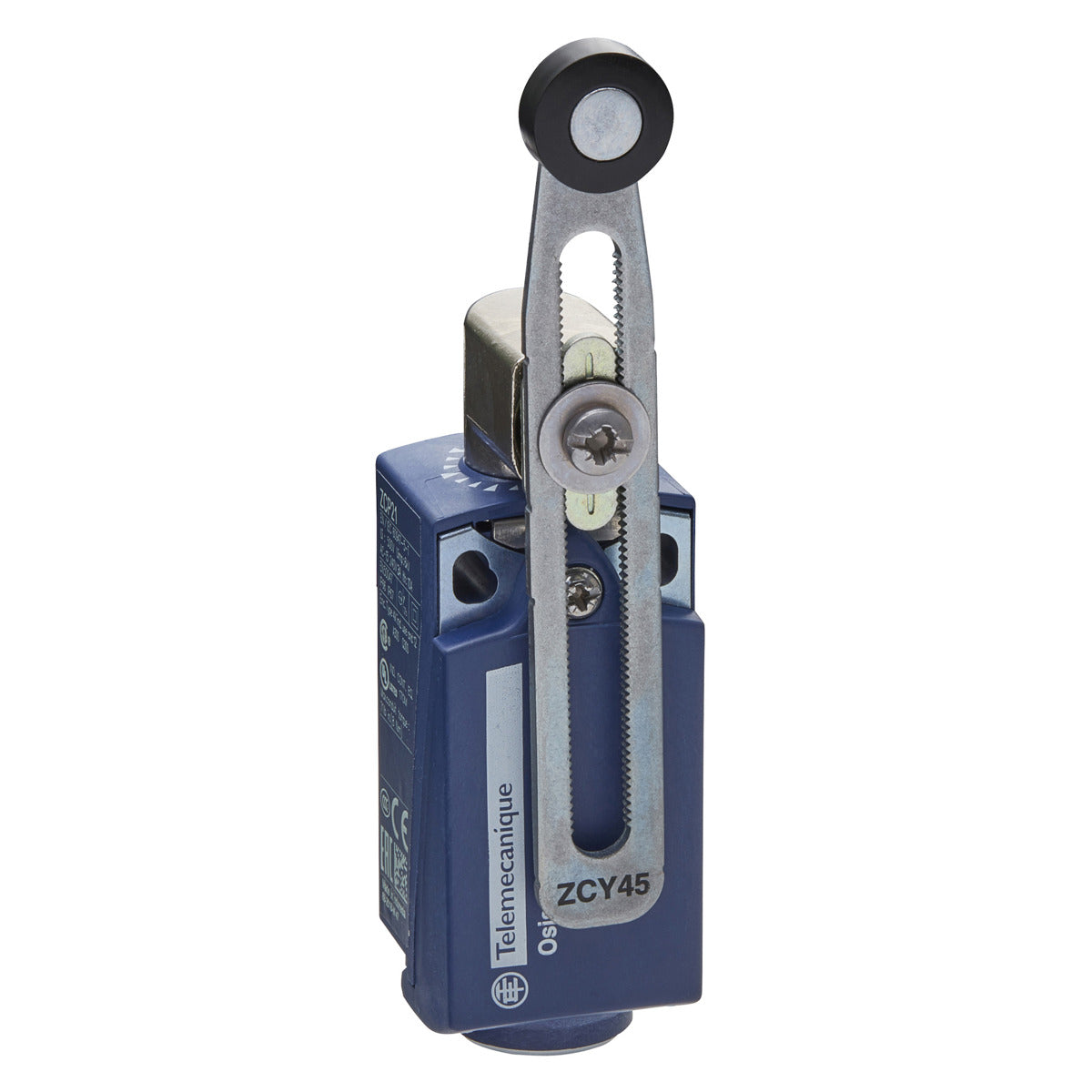

The Telemecanique XCKP2145N12 is a compact limit switch designed for various industrial applications. This limit switch converts mechanical motion into electrical signals, providing reliable control in diverse environments. It features snap action contacts with one normally closed and one normally open connection, ensuring effective operation. The switch supports a lateral approach and includes a spring-return thermoplastic roller lever.

• Rated for 240 VAC with 10 Amp maximum current
• Mechanical durability of over 10 million cycles
• IP66 and IP67 rated for protection against dust and water ingress

Product Highlights

This product is certified by UL, CCC, and CSA, ensuring it meets industry standards for safety and reliability. It is suitable for various applications including packaging, materials handling, and food processing.

Product Information

Standard Information

• Catalog Number: XCKP2145N12
• Brand: Telemecanique

Technical Specifications

• Operating Voltage: 240 VAC / 250 VDC
• Current Rating: 10 Amp
• Actuator Type: Spring return roller lever
• Contact Configuration: 1 NC + 1 NO
• Temperature Range: -25 to 70 degrees C
• Durability: 5 million electrical cycles
• IP Rating: IP66 / IP67
• Body Material: Plastic
