Telemecanique XCKP2118N12 Limit Switch 240 VAC 10 Amp

Product Description

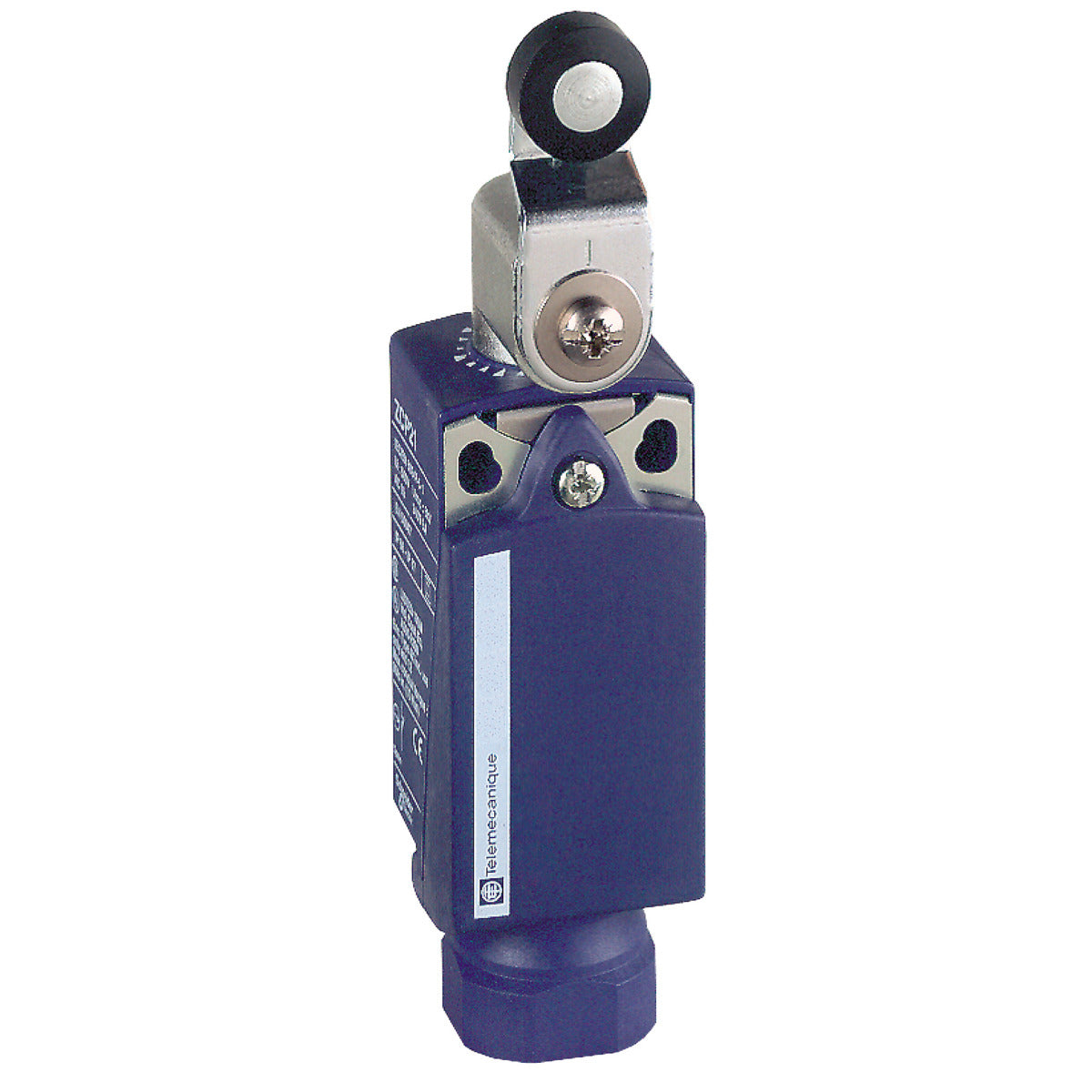

The Telemecanique XCKP2118N12 limit switch features a plastic roller lever and a robust plastic body. This compact limit switch transforms mechanical motion into an electrical control signal effectively. It has a thermoplastic body with double insulation, modular design for easy maintenance, and aligns with the CENELEC EN 50047 format for compactness.

• Rated operational current 3A at 240VAC and 0.27A at 250VDC
• IP66 and IP67 ratings for excellent water and dust resistance
• Mechanical durability up to 10 million cycles and electrical durability of 5 million cycles

Product Highlights

Designed for precise contact sensing of rigid objects, this limit switch includes snap-action contacts and supports vertical approach from two directions. Its screw clamp terminals ensure reliable electrical connections.

Product Information

Standard Information

• Catalog Number: XCKP2118N12
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Voltage Rating: 240VAC/250VDC
• Amperage Rating: 10 Amp
• Action: Snap action with lateral approach
• Enclosure: NEMA 1/2/4/6/12/13 IP66/67
• Operating Temperature: -25 to 70 degrees Celsius
• Contact Configuration: 1 NC + 1 NO
• Weight: 0.22 lbs
• Dimensions: Width 1.21 inches, Depth 1.68 inches, Height 4.80 inches
